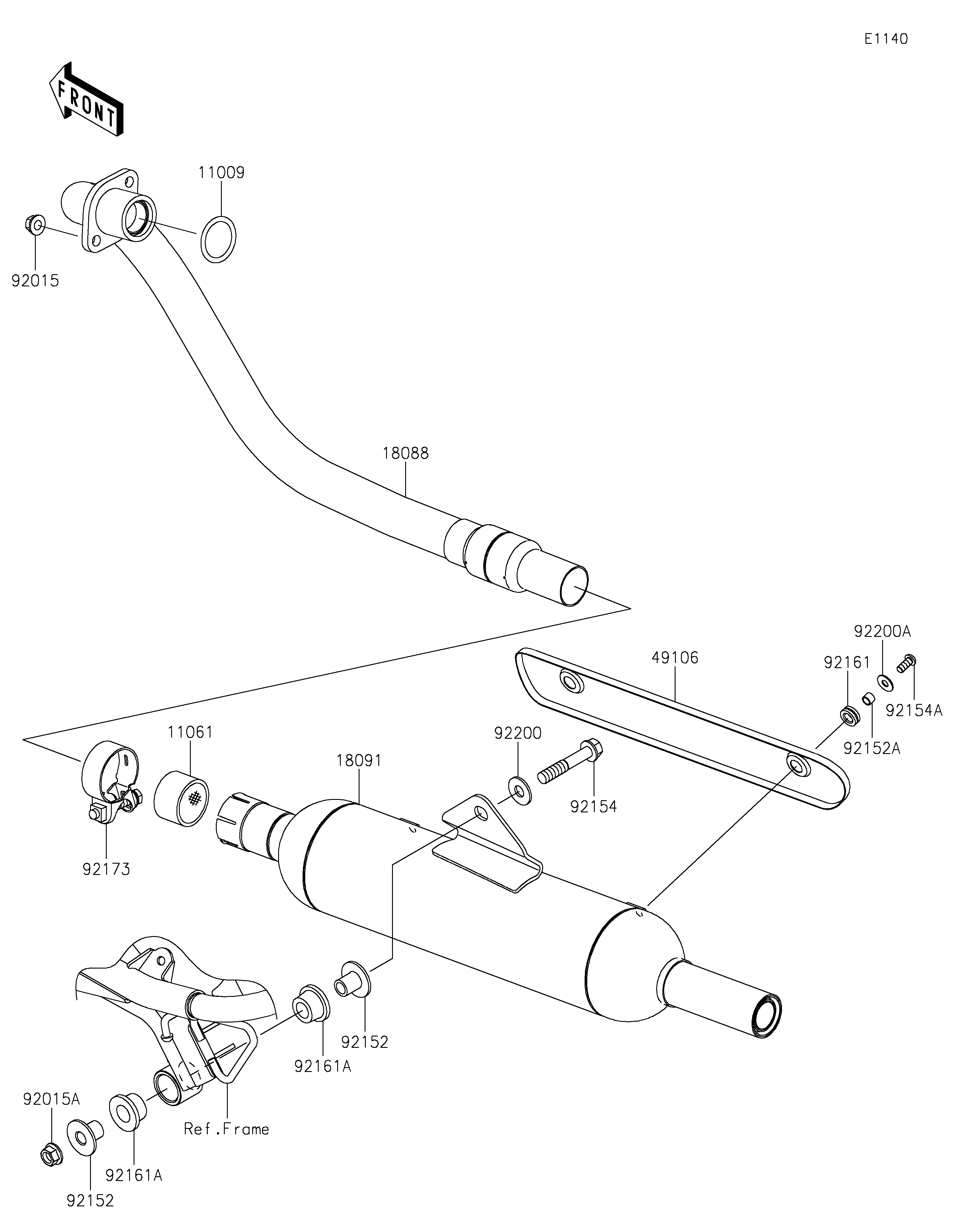

2018 W175 (Indonesia Only) - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11061
18088
18091
49106
92015
92015A
92152
92152
92152A
92154
92154A
92161
92161A
92161A
92173
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11009 11009-1866 1
GASKET,EXHAUST PIPE CONNECTING 11061 11061-0432 1
PIPE-EXHAUST 18088 18088-1352 1
BODY-COMP-MUFFLER 18091 18091-1146 1
COVER-MUFFLER 49106 49106-0824 1
NUT,8MM 92015 92015-1143 2
NUT,FLANGED,10MM 92015A 92015-1387 1
COLLAR 92152 92152-1682 2
COLLAR,6.5X8.5X6 92152A 92152-1962 2
BOLT,FLANGED,10X55 92154 92154-0070 1
BOLT,SOCKET,6X14 92154A 92154-2817 2
DAMPER 92161 92161-1475 2
DAMPER 92161A 92161-1497 2
CLAMP,42MM 92173 92173-1881 1
WASHER,10.5X25X2.0 92200 92200-1377 1
WASHER,6.5X16X1.0 92200A 92200-3712 2
