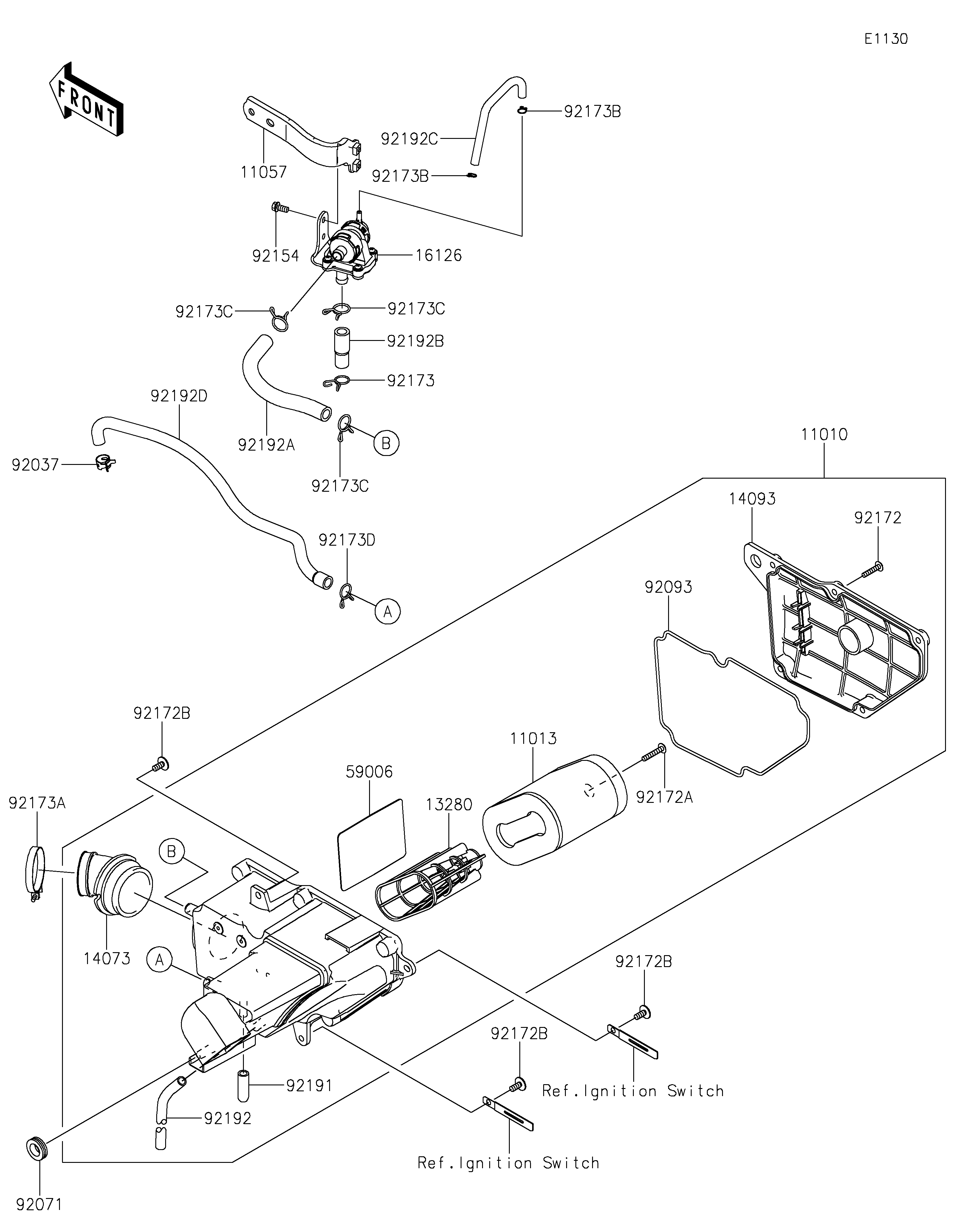

2018 W175 (Indonesia Only) - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11057
13280
14073
14093
16126
59006
92037
92071
92093
92154
92172
92172A
92172B
92172B
92172B
92173
92173A
92173B
92173B
92173C
92173C
92173C
92173D
92191
92192
92192A
92192B
92192C
92192D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0865 1
ELEMENT-AIR FILTER 11013 11013-1303 1
BRACKET,ASWV 11057 11057-0895 1
HOLDER,ELEMENT 13280 13280-1294 1
DUCT,CARBURETOR 14073 14073-1854 1
COVER,AIR FILTER CASE 14093 14093-0622 1
VALVE,AIR SWITCH 16126 16126-0742 1
ARRESTER-FLAME 59006 59006-1061 1
CLAMP 92037 92037-2082 1
GROMMET 92071 92071-056 1
SEAL,AIR FILTER 92093 92093-1589 1
BOLT,FLANGED,6X12 92154 92154-3753 2
SCREW,TAPPING,5X25 92172 92172-0730 5
SCREW,TAPPING,5X30 92172A 92172-0731 1
SCREW,6X14 92172B 92172-1197 3
CLAMP,14MM 92173 92173-1015 1
CLAMP 92173A 92173-1155 1
CLAMP 92173B 92173-1190 2
CLAMP 92173C 92173-1563 3
CLAMP,BREATHER TUBE 92173D 92173-1953 1
TUBE,8X12X40 92191 92191-1795 1
TUBE,8X11X295 92192 92192-1674 1
TUBE,ASWV-A/C 92192A 92192-1781 1
TUBE,ASWV-2ND PIPE 92192B 92192-1786 1
TUBE,ASWV-FITTING 92192C 92192-1796 1
TUBE,BREATHER 92192D 92192-1820 1
