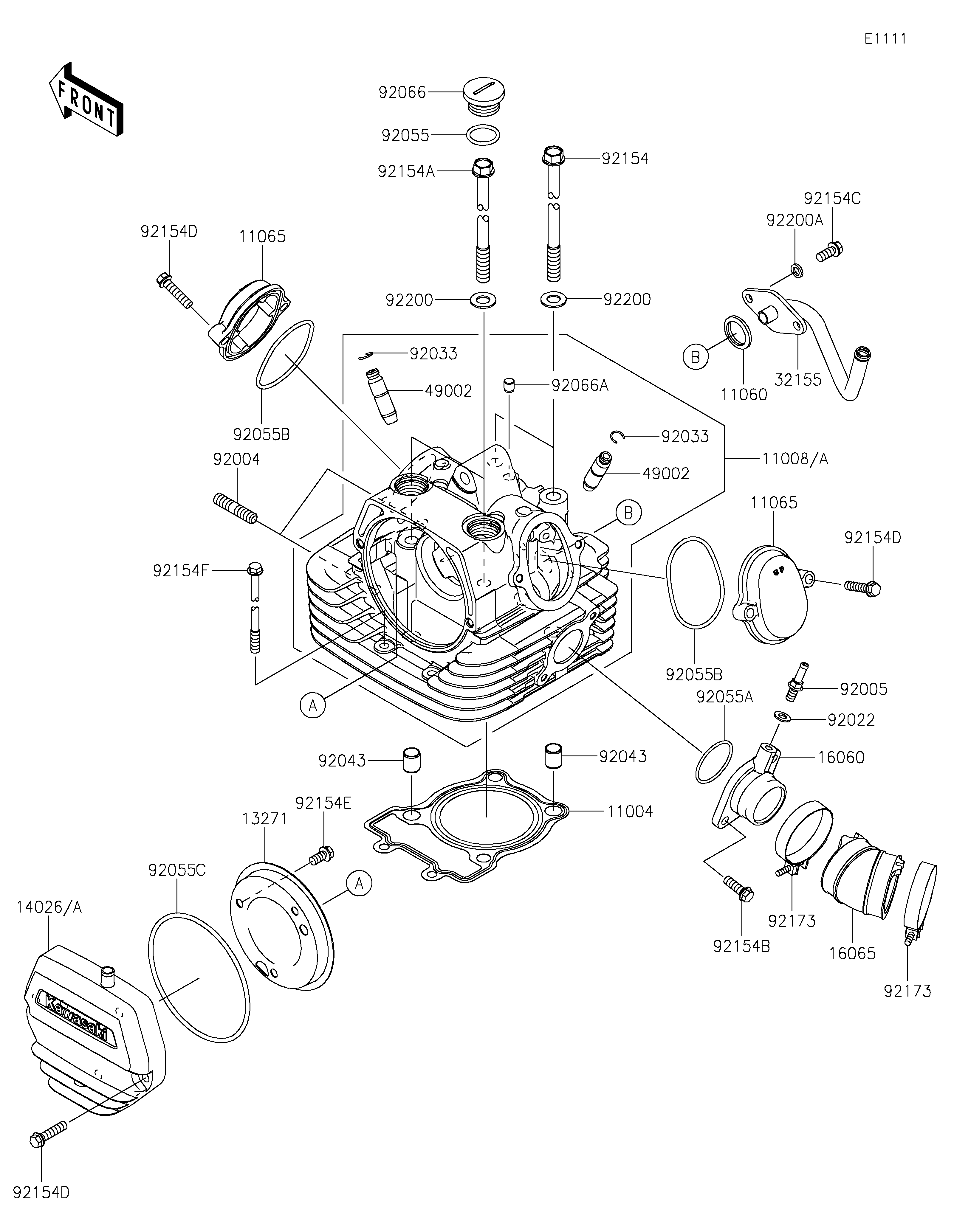

2018 W175 (Indonesia Only) - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11060
11065
11065
13271
14026
16060
16065
32155
49002
49002
92004
92005
92022
92033
92033
92043
92043
92055
92055A
92055B
92055B
92055C
92066
92066A
92154
92154A
92154B
92154C
92154D
92154D
92154D
92154E
92154F
92173
92173
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0780 1
HEAD-COMP-CYLINDER 11008 11008-0904 1
GASKET,REED VALVE 11060 11060-1815 1
CAP,ROCKER CASE 11065 11065-0986 2
PLATE,BREATHER 13271 13271-0173 1
COVER-CHAIN,CAM SPROCKET 14026 14026-0137 1
PIPE-INTAKE 16060 16060-0005 1
HOLDER-CARBURETOR 16065 16065-0133 1
PIPE,HEAD-ASWV 32155 32155-2618 1
GUIDE-VALVE 49002 49002-1140 2
STUD,8X22 92004 92004-1217 2
FITTING 92005 92005-0751 1
WASHER,6.1X12X1 92022 92022-077 1
RING-SNAP 92033 92033-0789 2
PIN,10.1X12X14 92043 92043-0929 2
RING-O,18.8X2.4 92055 92055-0023 2
RING-O 92055A 92055-0200 1
RING-O,53.6X2.6 92055B 92055-0750 2
RING-O,3.1X94.4 92055C 92055-0886 1
PLUG 92066 92066-0909 2
PLUG,OIL LINE,7.2X8 92066A 92066-1012 1
BOLT,FLANGED,9X228.5 92154 92154-2111 2
BOLT,FLANGED,9X188 92154A 92154-2112 2
BOLT,FLANGED,6X18 92154B 92154-2725 2
BOLT,FLANGED,6X14 92154C 92154-2751 2
BOLT,FLANGED,6X25 92154D 92154-2752 6
BOLT,FLANGED,6X12 92154E 92154-2753 3
BOLT,6X110 92154F 92154-3770 2
CLAMP 92173 92173-0991 2
WASHER,9.5X18X1.2 92200 92200-1900 4
WASHER,6.3X10.2X1.6 92200A 92200-1982 2
