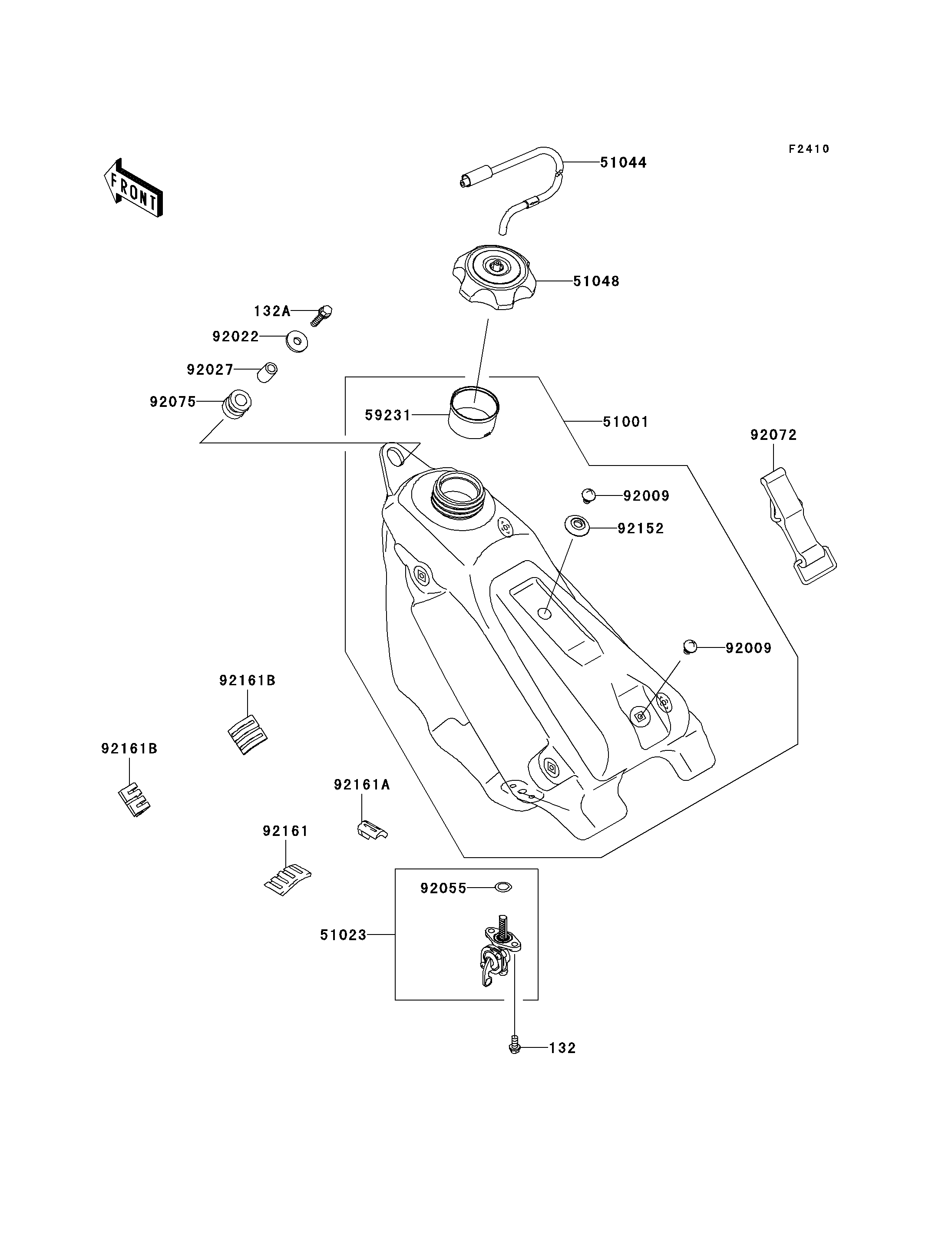

2005 KX250 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
51001
51023
51044
51048
59231
92009
92009
92022
92027
92055
92072
92075
92152
92161
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0625 1
TANK-COMP-FUEL,F.BLACK 51001 51001-0037-6Z 1
TAP-ASSY,FUEL 51023 51023-0014 1
TUBE-ASSY,TANK CAP 51044 51044-0019 1
CAP-ASSY-TANK,FUEL 51048 51048-0009 1
FILLER 59231 59231-0016 1
SCREW,6MM 92009 92009-1971 2
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
RING-O,FUEL TAP PACKING 92055 92055-0078 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1787 1
COLLAR 92152 92152-1346 1
DAMPER,FUEL TANK,RR 92161 92161-1279 1
DAMPER,FUEL TANK,RR 92161A 92161-1280 1
DAMPER,FUEL TANK,SIDE 92161B 92161-1291 2
