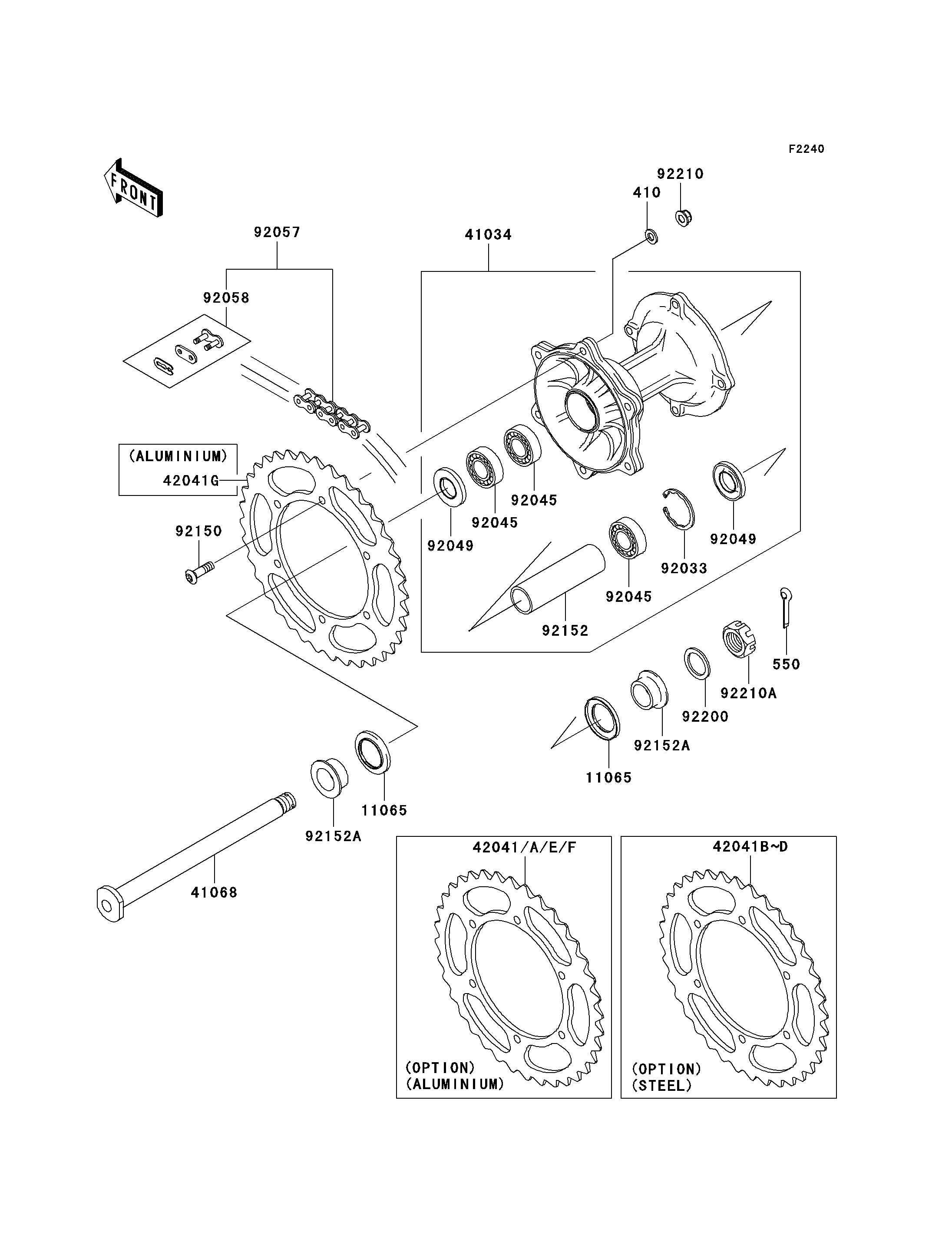

2005 KX250 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
410
550
11065
11065
41034
41068
42041
42041A
42041B
42041C
42041D
42041E
42041F
42041G
92033
92045
92045
92045
92049
92049
92057
92058
92150
92152
92152A
92152A
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,8MM 410 410B0800 6
PIN-COTTER,3.0X35 550 550D3035 1
CAP,AXLE 11065 11065-1253 2
DRUM-ASSY,REAR BRAKE 41034 41034-0004 1
AXLE,RR 41068 41068-1466 1
SPROCKET-HUB,52T,AL 42041 42041-0001 1 (OPTION)
SPROCKET-HUB,53T,AL 42041A 42041-0002 1 (OPTION)
SPROCKET-HUB,50T 42041B 42041-1408 1 (OPTION)
SPROCKET-HUB,51T 42041C 42041-1428 1 (OPTION)
SPROCKET-HUB,52T 42041D 42041-1429 1 (OPTION)
SPROCKET-HUB,49T,AL 42041E 42041-1449 1 (OPTION)
SPROCKET-HUB,50T,AL 42041F 42041-1450 1 (OPTION)
SPROCKET-HUB,51T,AL 42041G 42041-1451 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,69052RS 92045 92045-1446 3
SEAL-OIL 92049 92049-1614 2
CHAIN,DRIVE,DID520DMA2SDHX116L 92057 92057-0086 1
JOINT-CHAIN,DRIVE 92058 92058-1074 1
BOLT,SOCKET,8X28 92150 92150-1978 6
COLLAR,REAR BRAKE DRUM,L=106.5 92152 92152-1427 1
COLLAR,RR AXLE,L=17 92152A 92152-1473 2
WASHER,22.5X35X2.3 92200 92200-1623 1
NUT,FLANGED,LOCK,8MM 92210 92210-0159 6
NUT,CASTLE,22MM 92210A 92210-1411 1
