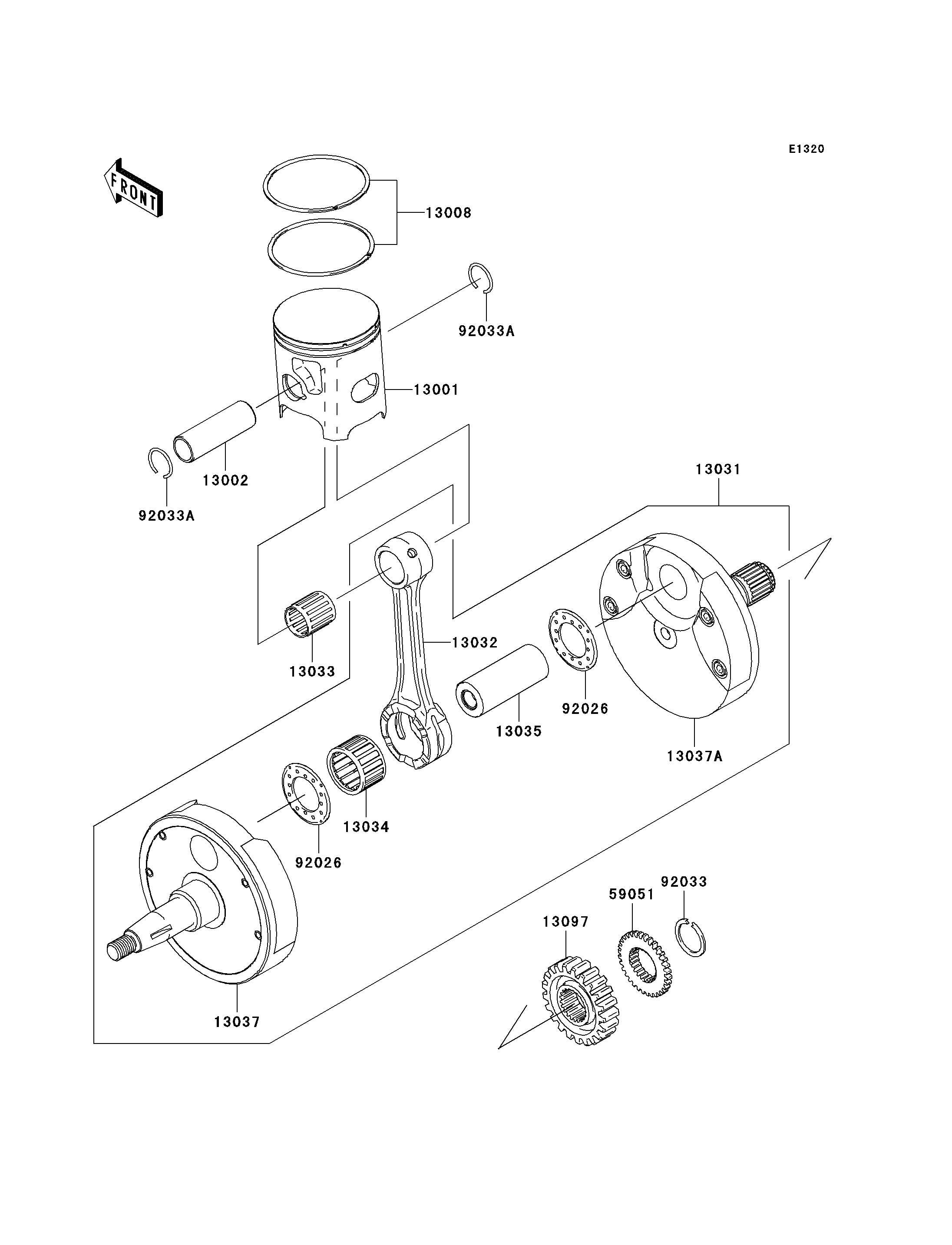

Parts Diagrams |
13001
13002
13008
13031
13032
13033
13034
13035
13037
13037A
13097
59051
92026
92026
92033
92033A
92033A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE,SIZE B | 13001 | 13001-0028 | 1 | ||
| PIN-PISTON | 13002 | 13002-1098 | 1 | ||
| RING-SET-PISTON | 13008 | 13008-0013 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-0025 | 1 | ||
| ROD-CONNECTING,WHITE | 13032 | 13032-1279 | 1 | ||
| BEARING-NEEDLE,KBK18X22X23.8X | 13033 | 13033-1010 | 1 | ||
| BEARING-BIG END,B4 | 13034 | 13034-0005 | 1 | ||
| PIN-CRANK | 13035 | 13035-1089 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-0032 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-0034 | 1 | ||
| GEAR-PRIMARY SPUR,21T | 13097 | 13097-0022 | 1 | ||
| GEAR-SPUR,32T | 59051 | 59051-0035 | 1 | ||
| SPACER,24X42X1.6 | 92026 | 92026-1607 | 2 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
| RING-SNAP,PISTON PIN | 92033A | 92033-1336 | 2 |
| PISTON-ENGINE,SIZE B | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-CONNECTING,WHITE | |
| REF # | 13032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KBK18X22X23.8X | |
| REF # | 13033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BIG END,B4 | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-CRANK | |
| REF # | 13035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,LH | |
| REF # | 13037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,RH | |
| REF # | 13037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-PRIMARY SPUR,21T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,32T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,24X42X1.6 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20X25.5X1.2 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,PISTON PIN | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
