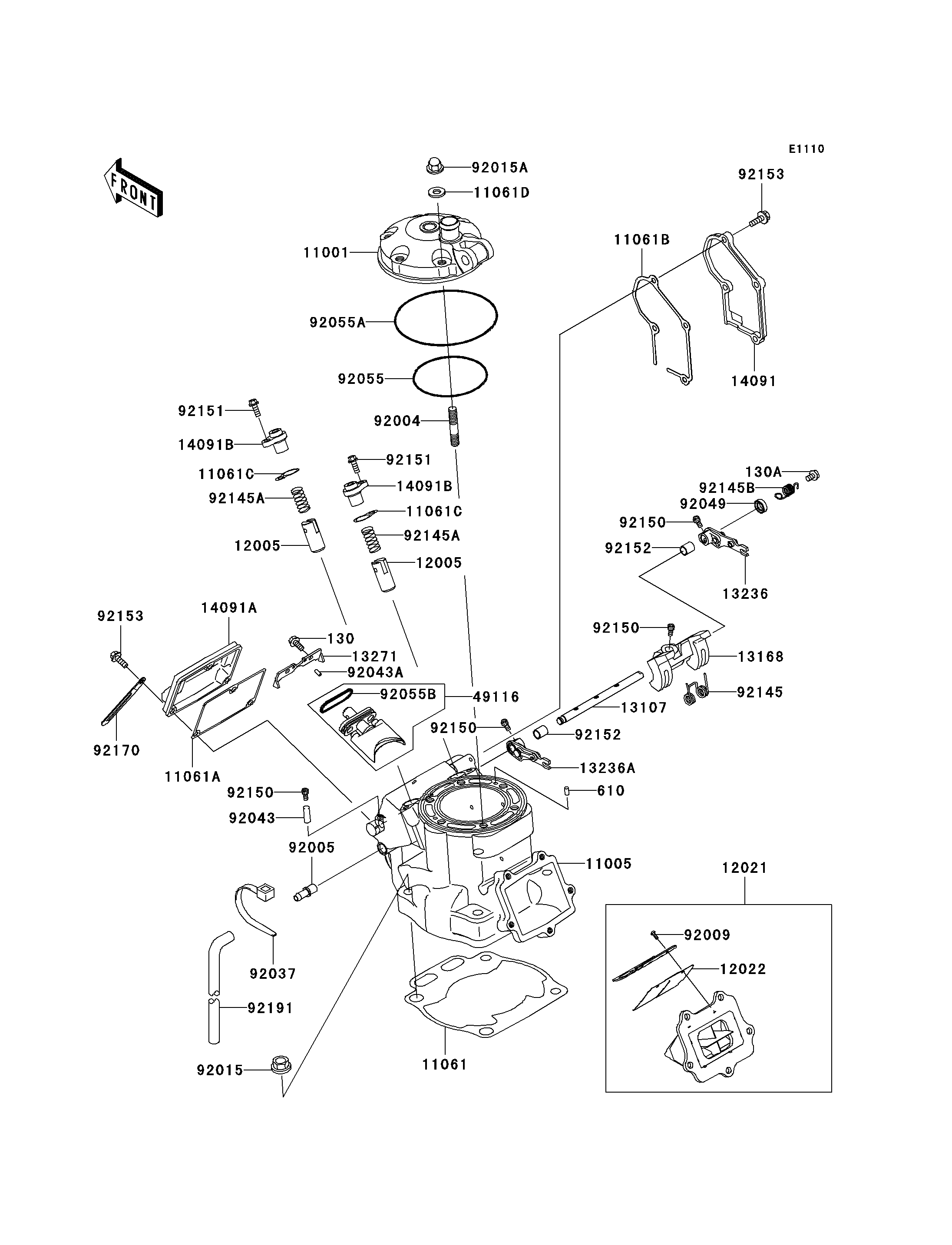

2005 KX250 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
11001
11001
11005
11005
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
11061C
11061C
11061D
11061D
12005
12005
12005
12005
12021
12021
12022
12022
13107
13107
13168
13168
13236
13236
13236A
13236A
13271
13271
14091
14091
14091A
14091A
14091B
14091B
14091B
14091B
49116
49116
92004
92004
92005
92005
92009
92009
92015
92015
92015A
92015A
92037
92037
92043
92043
92043A
92043A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92145
92145
92145A
92145A
92145A
92145A
92145B
92145B
92150
92150
92150
92150
92150
92150
92150
92150
92151
92151
92151
92151
92152
92152
92152
92152
92153
92153
92153
92153
92170
92170
92191
92191
130A
130A
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
HEAD-CYLINDER 11001 11001-0034 1
CYLINDER-ENGINE 11005 11005-0027 1
GASKET,CYLINDER BASE 11061 11061-0091 1
GASKET,CNT 11061A 11061-0092 1
GASKET,GOVERNOR COVER 11061B 11061-0093 1
GASKET,EXHAUST COVER 11061C 11061-0138 2
GASKET,HEAD 11061D 11061-1133 6
VALVE-EXHAUST 12005 12005-0019 2
VALVE-ASSY-REED 12021 12021-0009 1
VALVE-REED 12022 12022-0004 2
SHAFT 13107 13107-0062 1
LEVER,VALVE-ASSY,MAIN 13168 13168-0058 1
LEVER-COMP,RH 13236 13236-0054 1
LEVER-COMP,LH 13236A 13236-0081 1
PLATE 13271 13271-0518 1
COVER,RH 14091 14091-0215 1
COVER,CNT 14091A 14091-0217 1
COVER,EXHAUST 14091B 14091-0249 2
VALVE-ASSY,MAIN 49116 49116-0007 1
STUD,8X28 92004 92004-1110 6
FITTING,BREATHER 92005 92005-1127 1
SCREW,REED VALVE 92009 92009-1014 4
NUT,FLANGED,10MM 92015 92015-077 4
NUT,CAP,8MM 92015A 92015-1151 6
CLAMP 92037 92037-1173 1
PIN,3X8.5 92043 92043-0033 1
PIN,3X6.8 92043A 92043-0068 2
SEAL-OIL,SD088144 92049 92049-1238 1
RING-O,73.9X1.9 92055 92055-0049 1
RING-O,102X1.9 92055A 92055-0050 1
RING-O 92055B 92055-0051 1
SPRING 92145 92145-0180 1
SPRING 92145A 92145-0260 2
SPRING,MAIN,VALVE 92145B 92145-0284 1
BOLT,SOCKET,4X8 92150 92150-1888 4
BOLT,6X14 92151 92151-1423 2
COLLAR,8.1X10.0X11.2 92152 92152-0264 2
BOLT,5X16 92153 92153-0859 7
CLAMP 92170 92170-1514 1
TUBE,5.8X10.8X225 92191 92191-1692 1
BOLT-FLANGED 130A 130L0508 1
ROLLER,4X8 610 610A0408 2
