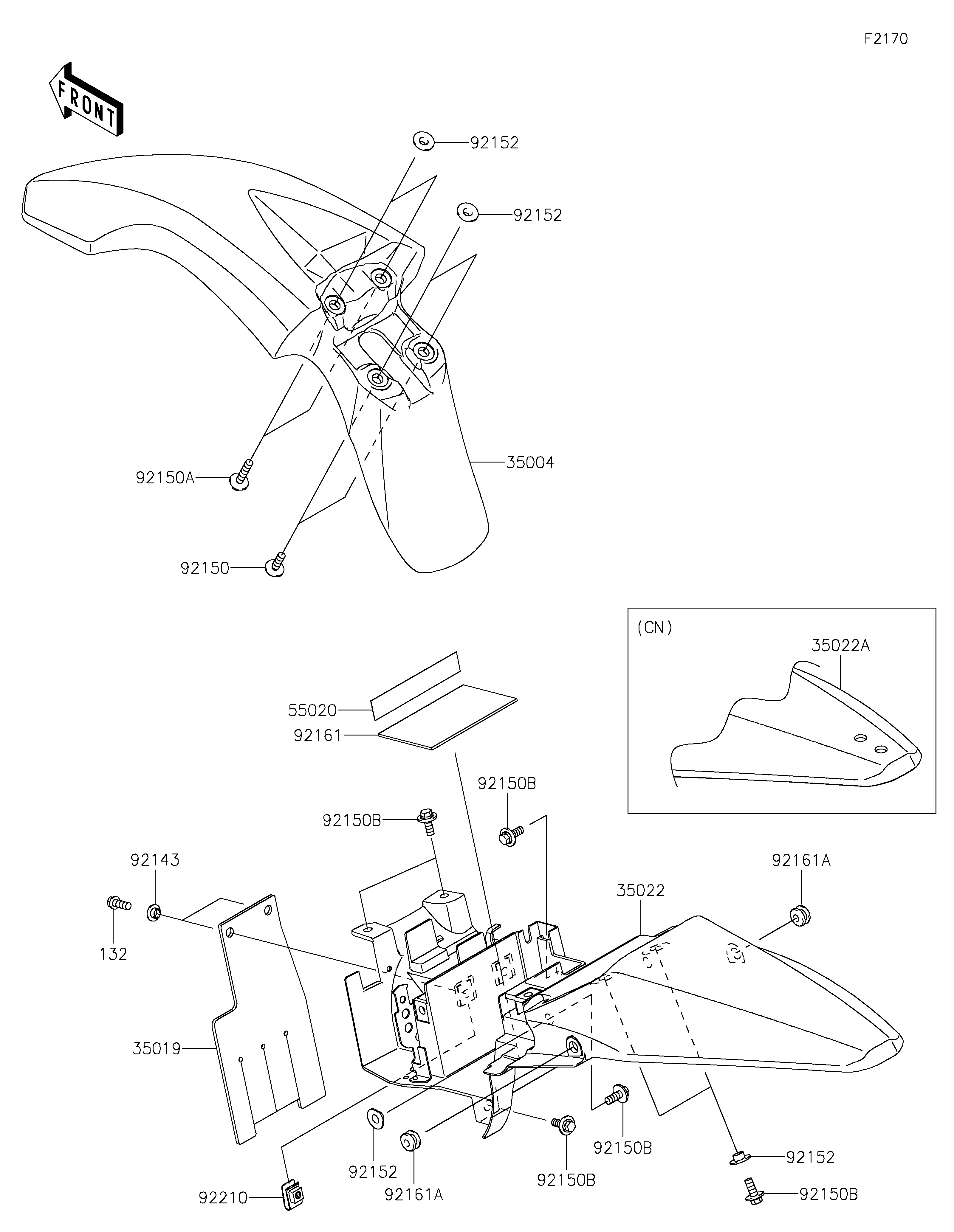

Parts Diagrams |
35004
35019
35022
35022A
55020
92143
92150
92150A
92150B
92150B
92150B
92150B
92150B
92152
92152
92152
92152
92161
92161A
92161A
92210
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,L.GREEN | 35004 | 35004-0148-290 | 1 | ||
| FLAP | 35019 | 35019-0091 | 1 | ||
| FENDER-COMP-REAR,L.GREEN | 35022 | 35022-0079-290 | 1 | US | |
| FENDER-COMP-REAR,L.GREEN | 35022A | 35022-0080-290 | 1 | CN | |
| GUARD | 55020 | 55020-0552 | 1 | ||
| COLLAR | 92143 | 92143-1331 | 2 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1339 | 2 | ||
| BOLT,FLANGED,6X30 | 92150A | 92150-1486 | 2 | ||
| BOLT,FLANGED,6X16 | 92150B | 92150-1506 | 8 | ||
| COLLAR | 92152 | 92152-0427 | 8 | ||
| DAMPER | 92161 | 92161-0845 | 1 | ||
| DAMPER | 92161A | 92161-0864 | 2 | ||
| NUT,6MM | 92210 | 92210-0218 | 2 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 |
