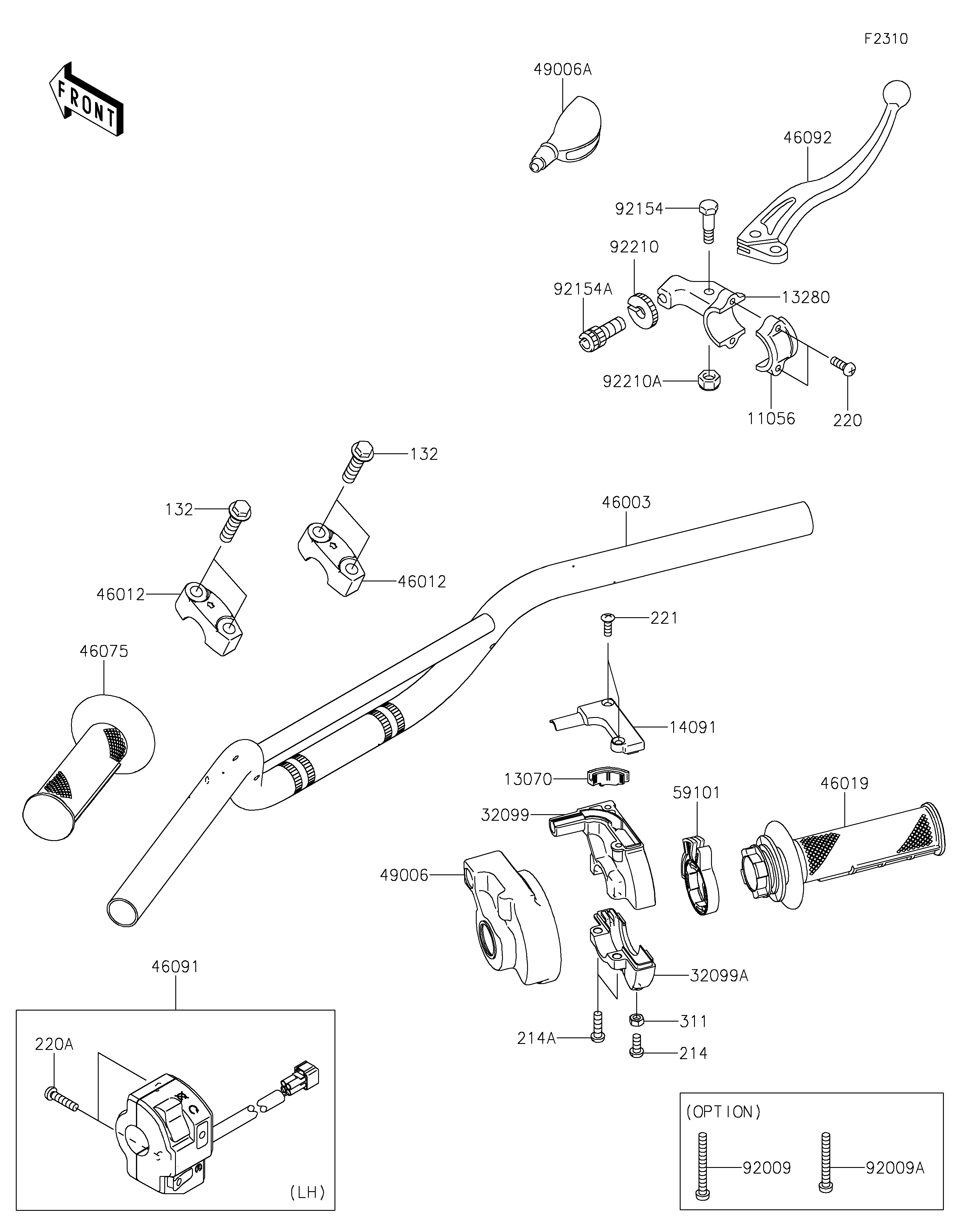

2021 KLX®110R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11056
13070
13280
14091
32099
32099A
46003
46012
46012
46019
46075
46091
46092
49006
49006A
59101
92009
92009A
92154
92154A
92210
92210A
132
132
214
214A
220
220A
221
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LEVER HOLDER 11056 11056-0150 1
GUIDE,THROTTLE 13070 13070-0083 1
HOLDER,BRAKE LEVER 13280 13280-0362 1
COVER,THROTTLE CASE,UPP 14091 14091-0873 1
CASE,THROTTLE,UPP 32099 32099-0037 1
CASE,THROTTLE,LWR 32099A 32099-0045 1
HANDLE,P.SILVER 46003 46003-0175-458 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0101-458 2
GRIP-ASSY,THROTTLE 46019 46019-0023 1
GRIP,LH 46075 46075-0072 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0226 1
LEVER-GRIP,BRAKE 46092 46092-0037 1
BOOT,THROTTLE CASE 49006 49006-0075 1
BOOT,LEVER HOLDER 49006A 49006-1017 1
REEL,THROTTLE 59101 59101-0005 1
SCREW,5X47 92009 92009-1989 1 (OPTION)
SCREW,5X42 92009A 92009-1998 1 (OPTION)
BOLT,LEVER SET 92154 92154-0329 1
BOLT,CABLE ADJUSTER 92154A 92154-0330 1
NUT 92210 92210-0593 1
NUT,LOCK,6MM 92210A 92210-0594 1
BOLT-FLANGED-SMALL,8X30 132 132BA0830 4
SCREW-PAN+-,5X12 214 214AB0512 1
SCREW-PAN+-,5X18 214A 214AB0518 2
SCREW-PAN-CROS,5X14 220 220AA0514 2
SCREW-PAN-CROS,5X22 220A 220AB0522 2
SCREW-CSK-CROS,4X12 221 221AB0412 2
NUT-HEX,5MM 311 311AB0500 1
