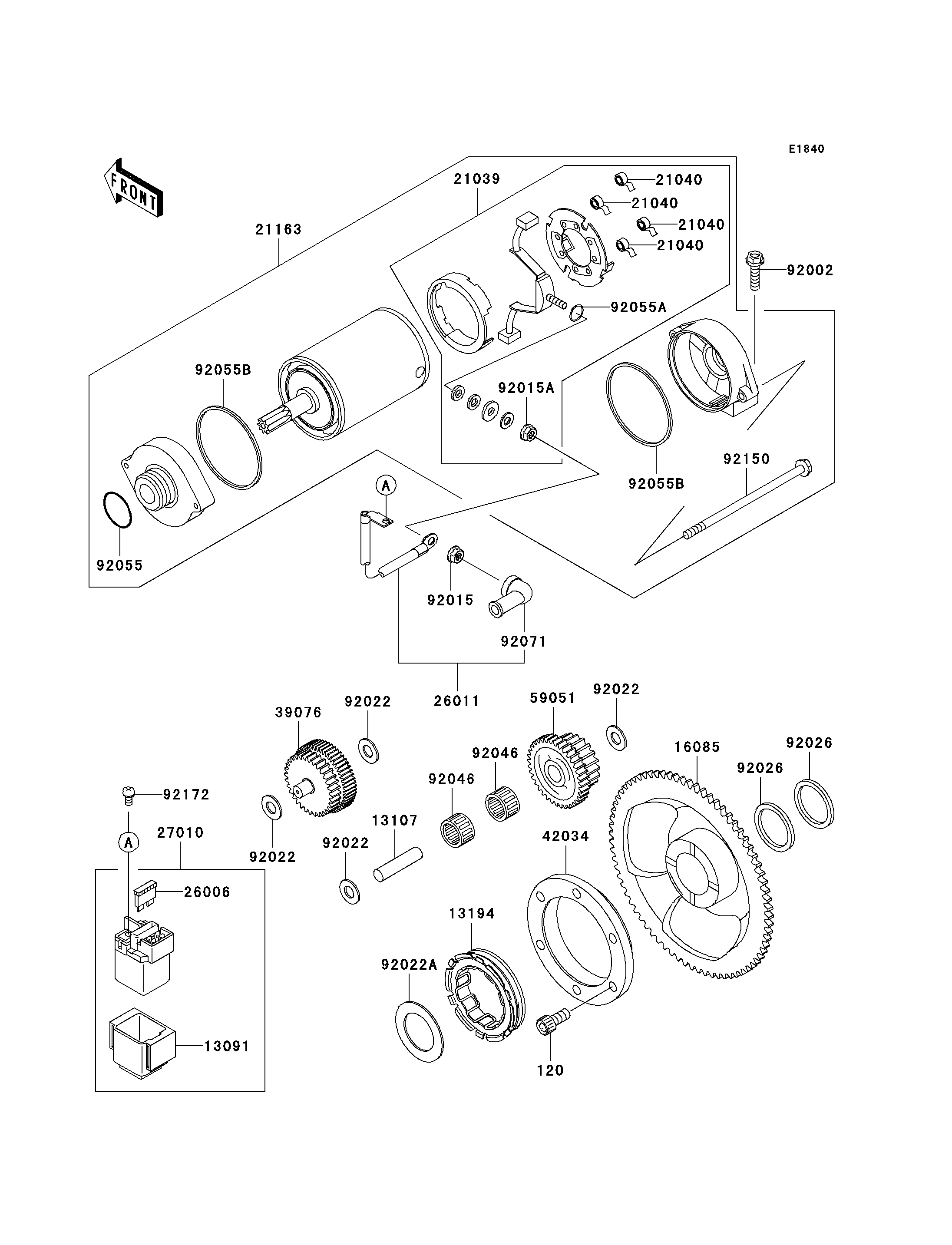

2009 KLR™650 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
13091
13107
13194
16085
21039
21040
21040
21040
21040
21163
26006
26011
27010
39076
42034
59051
92002
92015
92015A
92022
92022
92022
92022
92022A
92026
92026
92046
92046
92055
92055A
92055B
92055B
92071
92150
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X18 120 120CA0818 6
HOLDER,SWITCH 13091 13091-1883 1
SHAFT,IDLER 13107 13107-1135 1
CLUTCH-ONEWAY 13194 13194-1089 1
GEAR,ONEWAY CLUTCH 16085 16085-1205 1
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-1108 1
FUSE,20A-Y 26006 26006-1051 1
WIRE-LEAD 26011 26011-0136 1
SWITCH 27010 27010-1336 1
LIMITER,STARTER IDLE GEAR 39076 39076-1056 1
COUPLING 42034 42034-1094 1
GEAR-SPUR,20T & 37T 59051 59051-1133 1
BOLT,FLANGED,6X25 92002 92002-1086 2
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,STARTER MOTOR 92015A 92015-1476 1
WASHER,10.2X20X0.5 92022 92022-1649 4
WASHER,32.2X50X1.0 92022A 92022-1650 1
SPACER 92026 92026-1474 2
BEARING-NEEDLE,K10X14X10 92046 92046-1134 2
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
GROMMET 92071 92071-0037 1
BOLT,STARTER MOTOR 92150 92150-1913 2
SCREW-PAN-WS-CROS,5X10 92172 92172-0234 2
