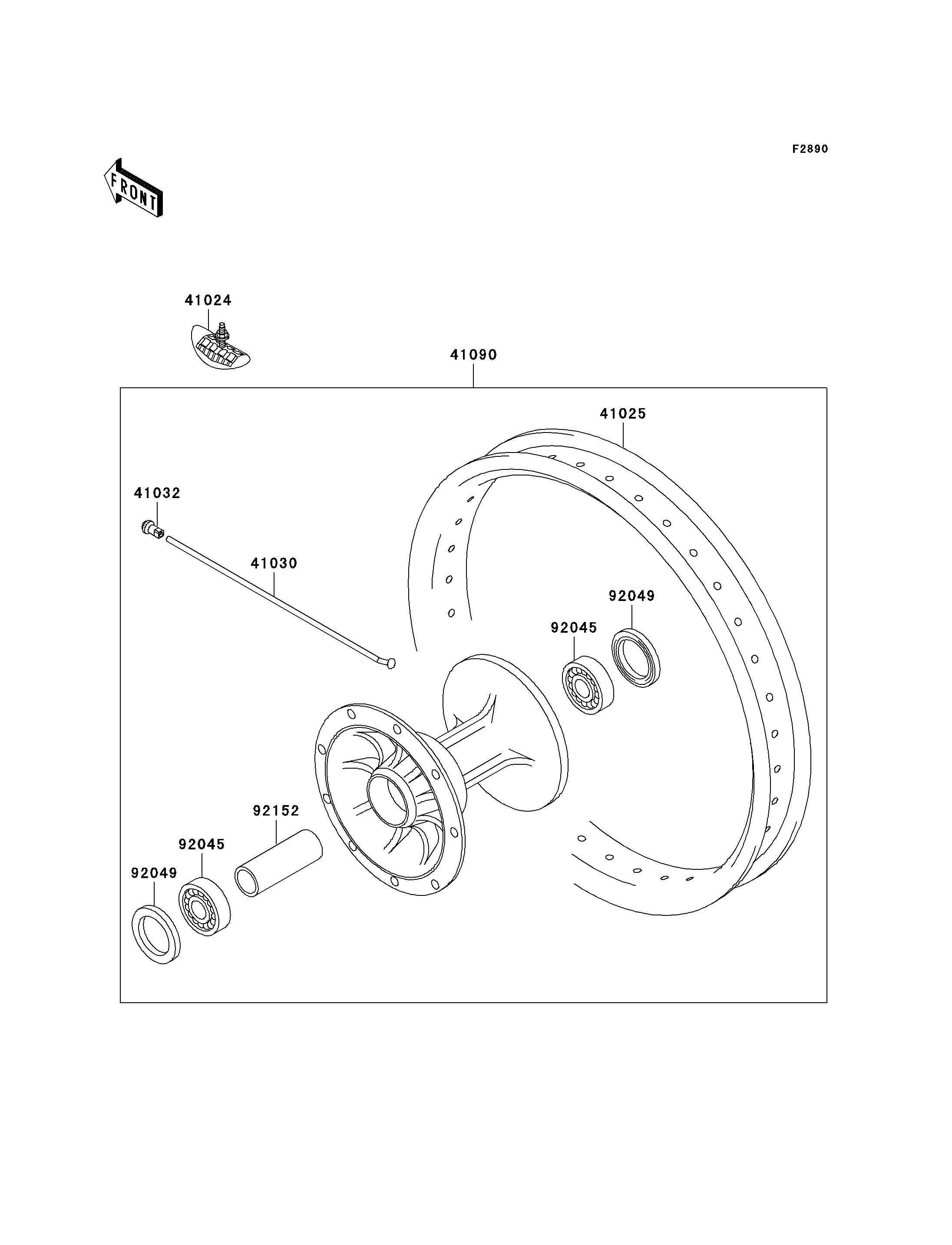

2004 KX250 - Optional Parts(20in Front Wheel)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STOPPER-RIM,1.85-M(DUNLOP) | 41024 | 41024-011 | 1 | ||
| RIM,FR,1.85X20 | 41025 | 41025-1410 | 1 | ||
| SPOKE-OUTER,FR,217.5MMX170D | 41030 | 41030-1172 | 36 | ||
| NIPPLE-SPOKE,ALUMINIUM | 41032 | 41032-1086 | 36 | ||
| WHEEL,FR,1.85X20,ALUM NIPPLE | 41090 | 41090-1155 | 1 | ||
| BEARING-BALL,69042RS | 92045 | 92045-1284 | 2 | ||
| SEAL-OIL,BJNC-2 25X37X5 | 92049 | 92049-1403 | 2 | ||
| COLLAR,FRONT BRAKE DRUM,L=72 | 92152 | 92152-1472 | 1 |
