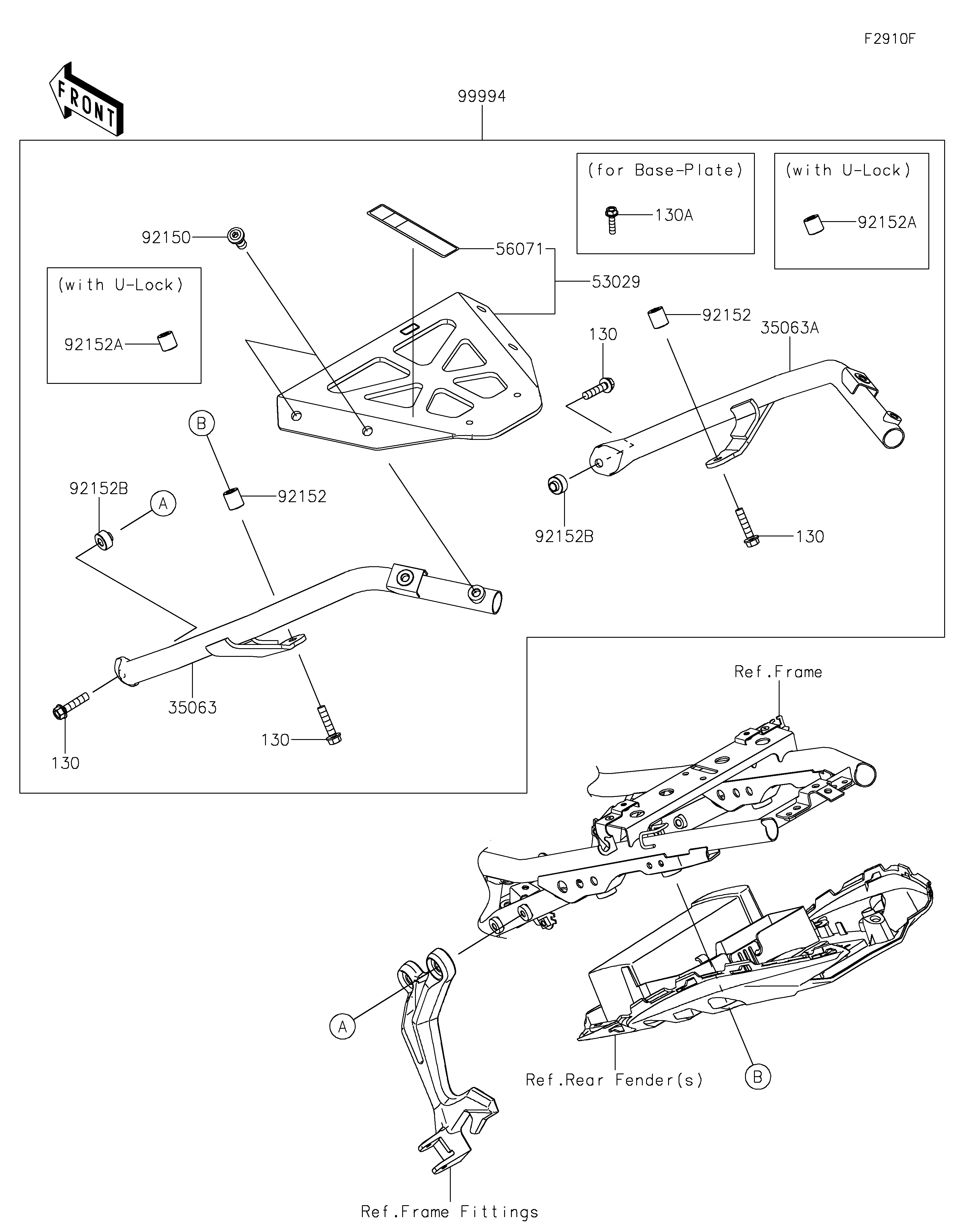

2021 Z650 ABS - Accessory(Topcase Bracket)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X35 | 130 | 130CA0835 | 4 | ||
| BOLT-FLANGED,6X25 | 130A | 130CB0625 | 4 | ||
| STAY,LH | 35063 | 35063-1353 | 1 | ||
| STAY,RH | 35063A | 35063-1354 | 1 | ||
| CARRIER | 53029 | 53029-0353 | 1 | ||
| LABEL-WARNING,CARRIER LOADING | 56071 | 56071-0554 | 1 | ||
| BOLT,SOCKET,10X25 | 92150 | 92150-1747 | 4 | ||
| COLLAR,8.5X17X19 | 92152 | 92152-2234 | 2 | ||
| COLLAR,8.5X17X16.7 | 92152A | 92152-2235 | 2 | ||
| COLLAR,8.5X20X13.3 | 92152B | 92152-2285 | 2 | ||
| KIT-ACCESSORY,TOPCASE BRACKET | 99994 | 99994-0799 | 1 |
