Parts Diagrams |

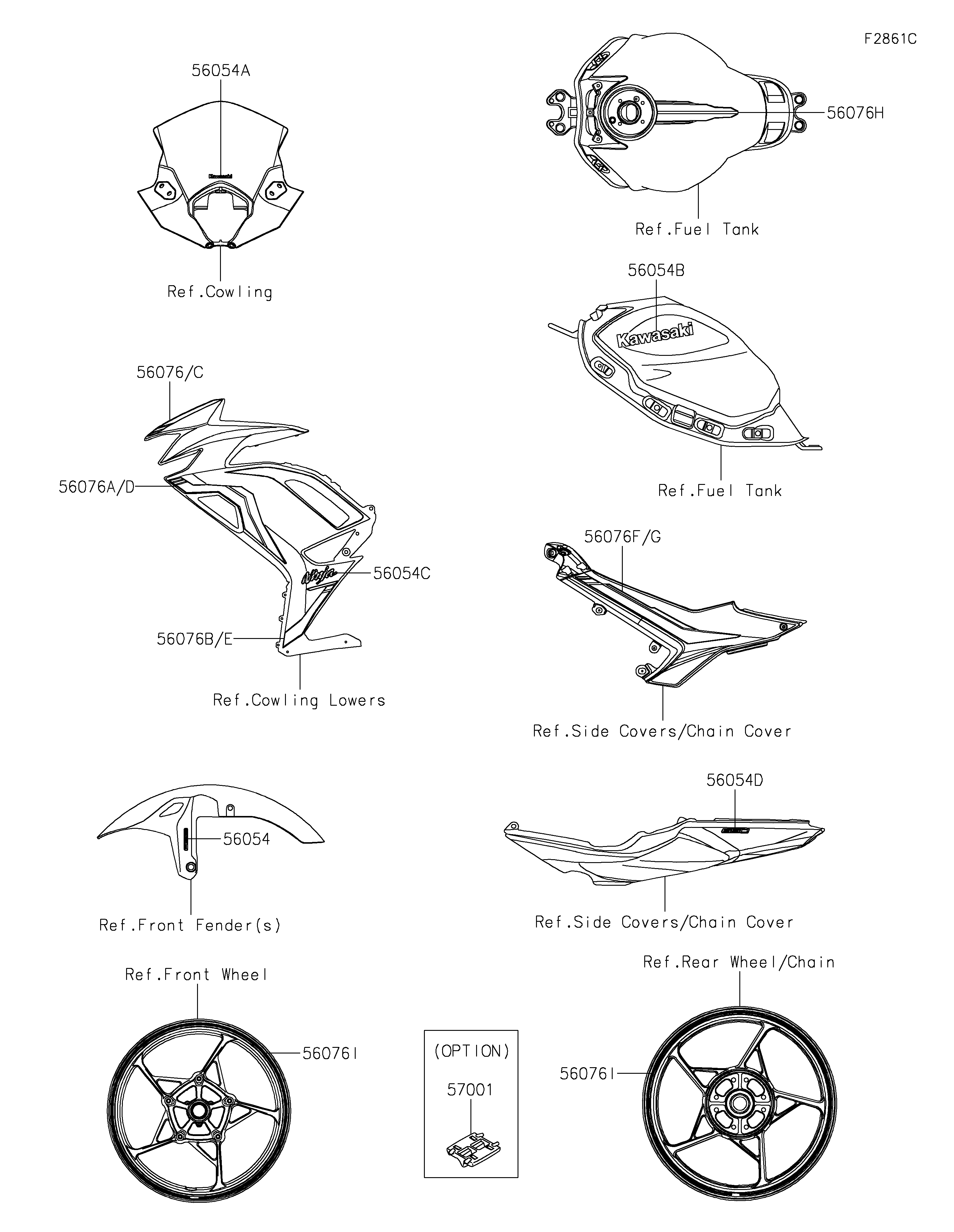

2021 NINJA® 650 ABS - Decals(Teal)(MMFAN/MMFAL)
56054
56054A
56054B
56054C
56054D
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-1413 | 2 | CA,US | |
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2261 | 1 | CA,US | |
| MARK,FUEL TANK,KAWASAKI | 56054B | 56054-2806 | 2 | CA,US | |
| MARK,SIDE COWL.,NINJA | 56054C | 56054-2809 | 2 | CA,US | |
| MARK,TAIL COVER,650 | 56054D | 56054-2810 | 2 | CA,US | |
| PATTERN,SIDE COWL.,LH,UPP | 56076 | 56076-1673 | 1 | CA,US | |
| PATTERN,SIDE COWL.,LH,CNT | 56076A | 56076-1674 | 1 | CA,US | |
| PATTERN,SIDE COWL.,LH,LWR | 56076B | 56076-1675 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,UPP | 56076C | 56076-1676 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,CNT | 56076D | 56076-1677 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,LWR | 56076E | 56076-1678 | 1 | CA,US | |
| PATTERN,SIDE COVER,LH | 56076F | 56076-1679 | 1 | CA,US | |
| PATTERN,SIDE COVER,RH | 56076G | 56076-1680 | 1 | CA,US | |
| PATTERN,FUEL TANK | 56076H | 56076-1681 | 1 | CA,US | |
| PATTERN,WHEEL,BLK/BRN,4X1353 | 56076I | 56076-2171 | 4 | CA,US | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CA,US |
