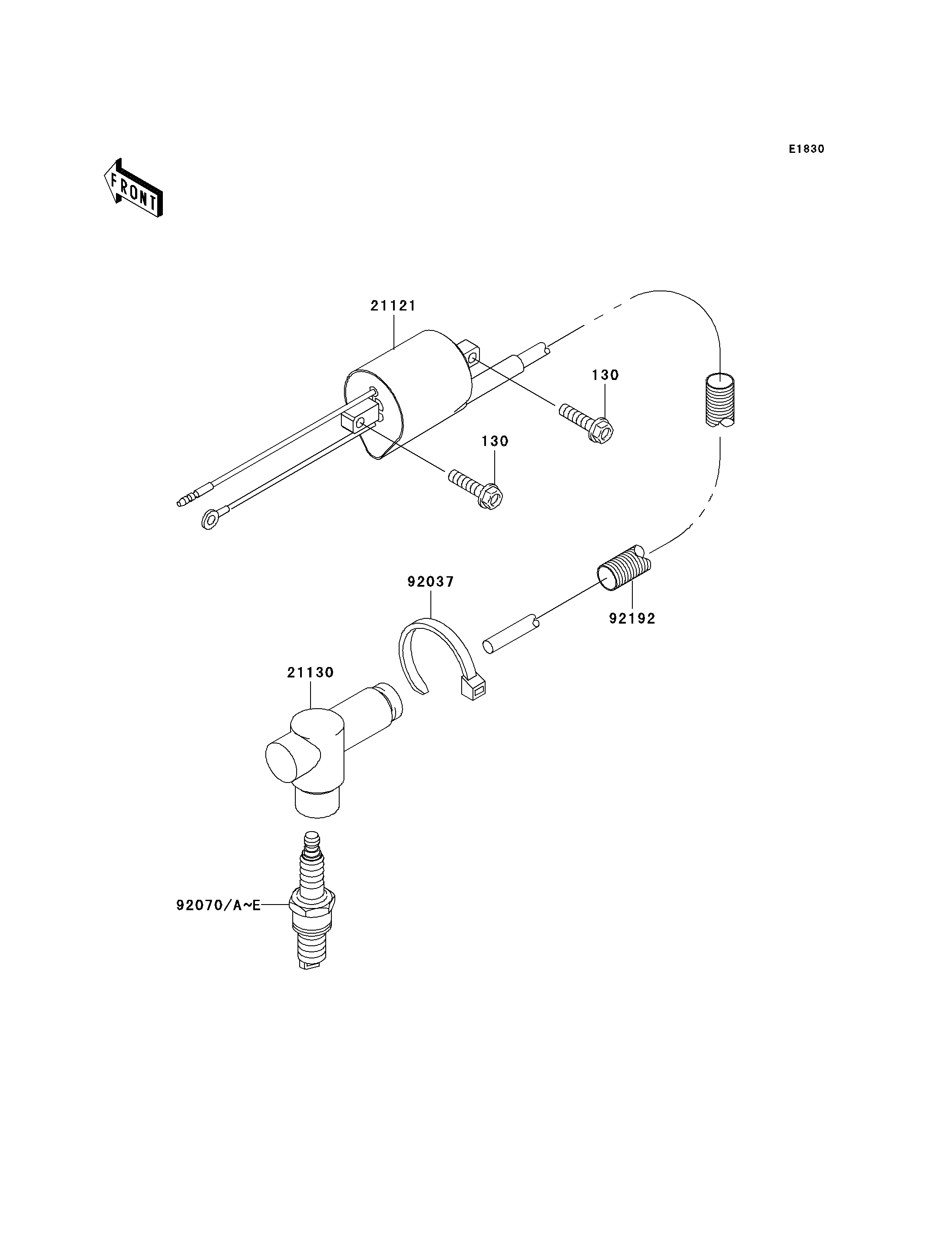

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130L0520 | 2 | ||
| COIL-IGNITION | 21121 | 21121-1318 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1077 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| PLUG-SPARK,BR7EIX(NGK) | 92070 | 92070-1269 | 1 | (OPTION) | |
| PLUG-SPARK,BR8EIX(NGK) | 92070A | 92070-1270 | 1 | ||
| PLUG-SPARK,BR9EIX(NGK) | 92070B | 92070-1271 | 1 | (OPTION) | |
| PLUG-SPARK,R7376-7(NGK) | 92070C | 92070-1274 | 1 | (OPTION) | |
| PLUG-SPARK,R7376-8(NGK) | 92070D | 92070-1275 | 1 | (OPTION) | |
| PLUG-SPARK,R7376-9(NGK) | 92070E | 92070-1276 | 1 | (OPTION) | |
| TUBE | 92192 | 92192-0094 | 1 |
