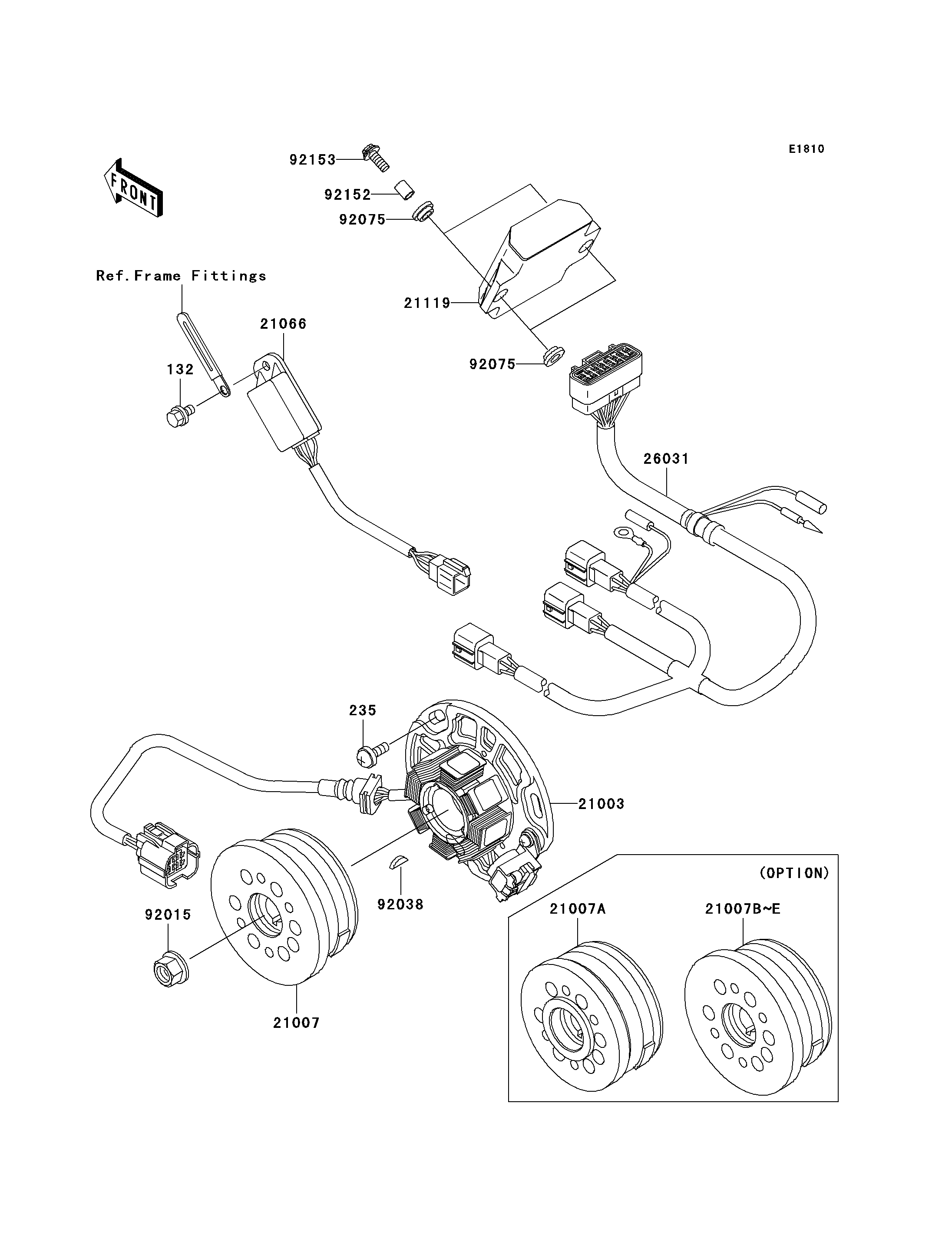

2004 KX250 - Generator

DOWNLOAD PDF
SELECT A NEW PART
132
235
21003
21007
21007A
21007B
21007C
21007D
21007E
21066
21119
26031
92015
92038
92075
92075
92152
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0610 1
SCREW-PAN-WP-CROS 235 235B0616 3
STATOR 21003 21003-1400 1
ROTOR,I=4.5 21007 21007-1424 1
ROTOR,I=4.0 21007A 21007-1425 1 (OPTION)
ROTOR,I=5.3 21007B 21007-1426 1 (OPTION)
ROTOR,I=5.6 21007C 21007-1427 1 (OPTION)
ROTOR,I=5.9 21007D 21007-1428 1 (OPTION)
ROTOR,I=4.9 21007E 21007-1429 1 (OPTION)
REGULATOR-VOLTAGE 21066 21066-1123 1
IGNITER 21119 21119-0007 1
HARNESS 26031 26031-0099 1
NUT,FLANGED,12MM 92015 92015-1156 1
KEY,WOODRUFF 92038 92038-001 1
DAMPER,8MM 92075 92075-1138 4
COLLAR,IGNITER 92152 92152-1421 2
BOLT,6X20 92153 92153-0626 2
