2002 KX250 - Generator

DOWNLOAD PDF
SELECT A NEW PART
132
235
21003
21007
21007A
21007B
21007C
21007D
21066
21119
26030
92015
92015A
92038
92143
92150
92160

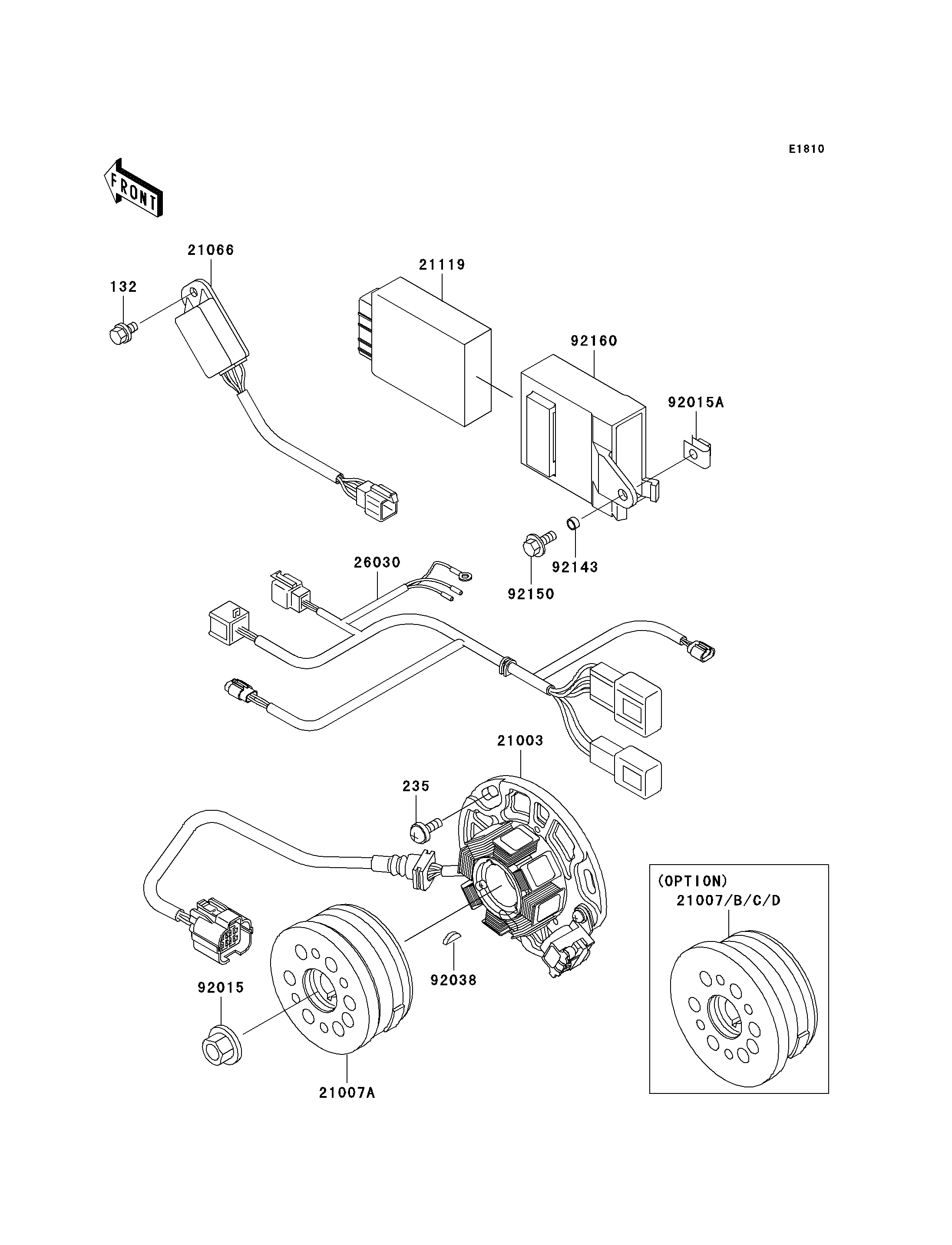

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0610 1
SCREW-PAN-WP-CROS 235 235B0616 3
STATOR 21003 21003-1389 1
ROTOR,I=4.5KGCM2 21007 21007-1402 1 (OPTION)
ROTOR,I=4.9KGCM2 21007A 21007-1403 1
ROTOR,I=5.3KGCM2 21007B 21007-1404 1 (OPTION)
ROTOR,I=5.6KGCM2 21007C 21007-1405 1 (OPTION)
ROTOR,I=5.9 21007D 21007-1413 1 (OPTION)
REGULATOR-VOLTAGE 21066 21066-1123 1
IGNITER 21119 21119-1595 1
HARNESS 26030 26030-1794 1
NUT,FLANGED,12MM 92015 92015-1156 1
NUT,6MM 92015A 92015-1602 1
KEY,WOODRUFF 92038 92038-001 1
COLLAR 92143 92143-1561 1
BOLT,FLANGED,6X16 92150 92150-1506 1
DAMPER 92160 92160-1945 1
