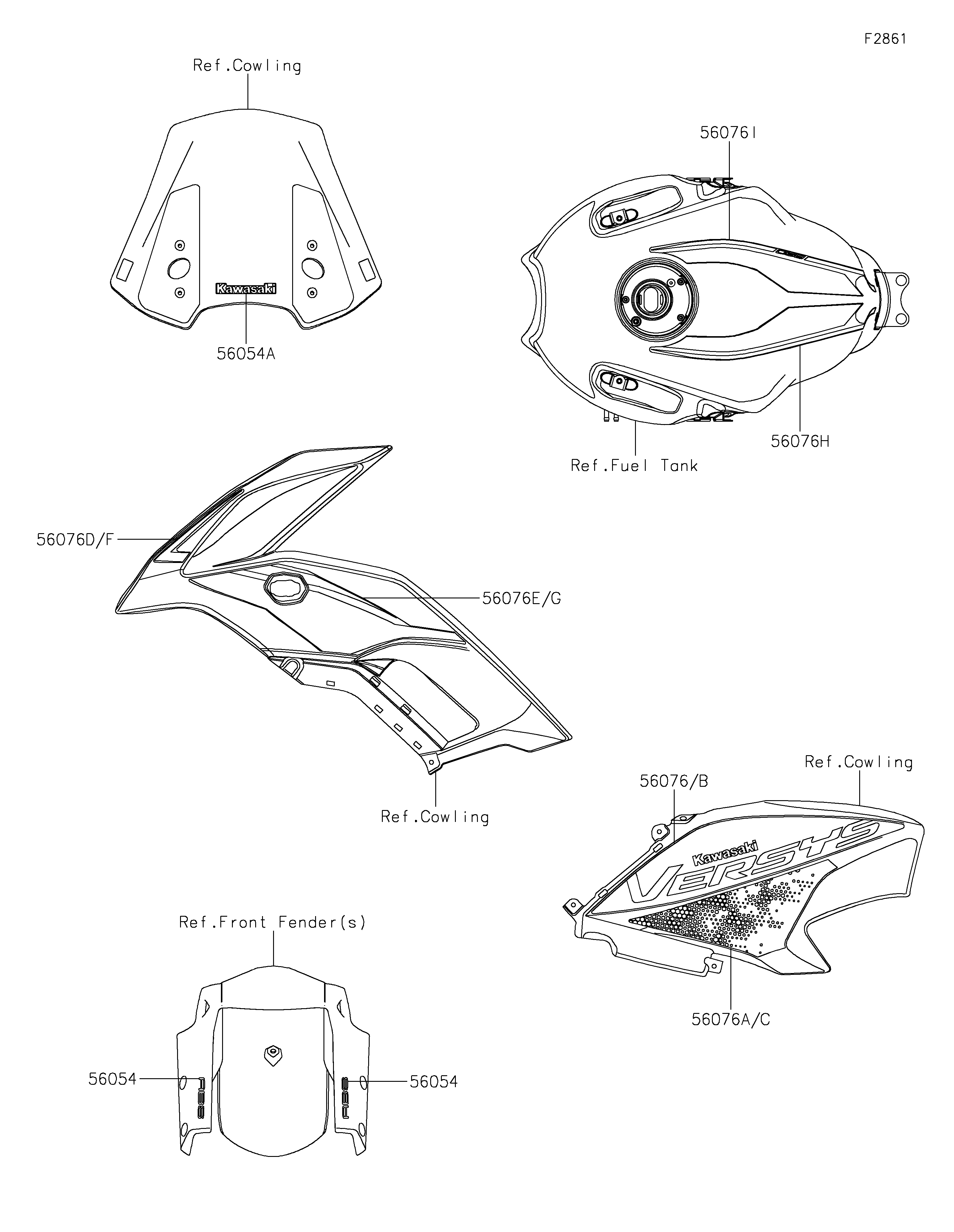

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-1412 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2177 | 1 | ||
| PATTERN,TANK SIDE COWL.,LH,UPP | 56076 | 56076-1873 | 1 | ||
| PATTERN,TANK SIDE COWL.,LH,LWR | 56076A | 56076-1874 | 1 | ||
| PATTERN,TANK SIDE COWL.,RH,UPP | 56076B | 56076-1875 | 1 | ||
| PATTERN,TANK SIDE COWL.,RH,LWR | 56076C | 56076-1876 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56076D | 56076-1877 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56076E | 56076-1878 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56076F | 56076-1879 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56076G | 56076-1880 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076H | 56076-1881 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076I | 56076-2056 | 1 |
