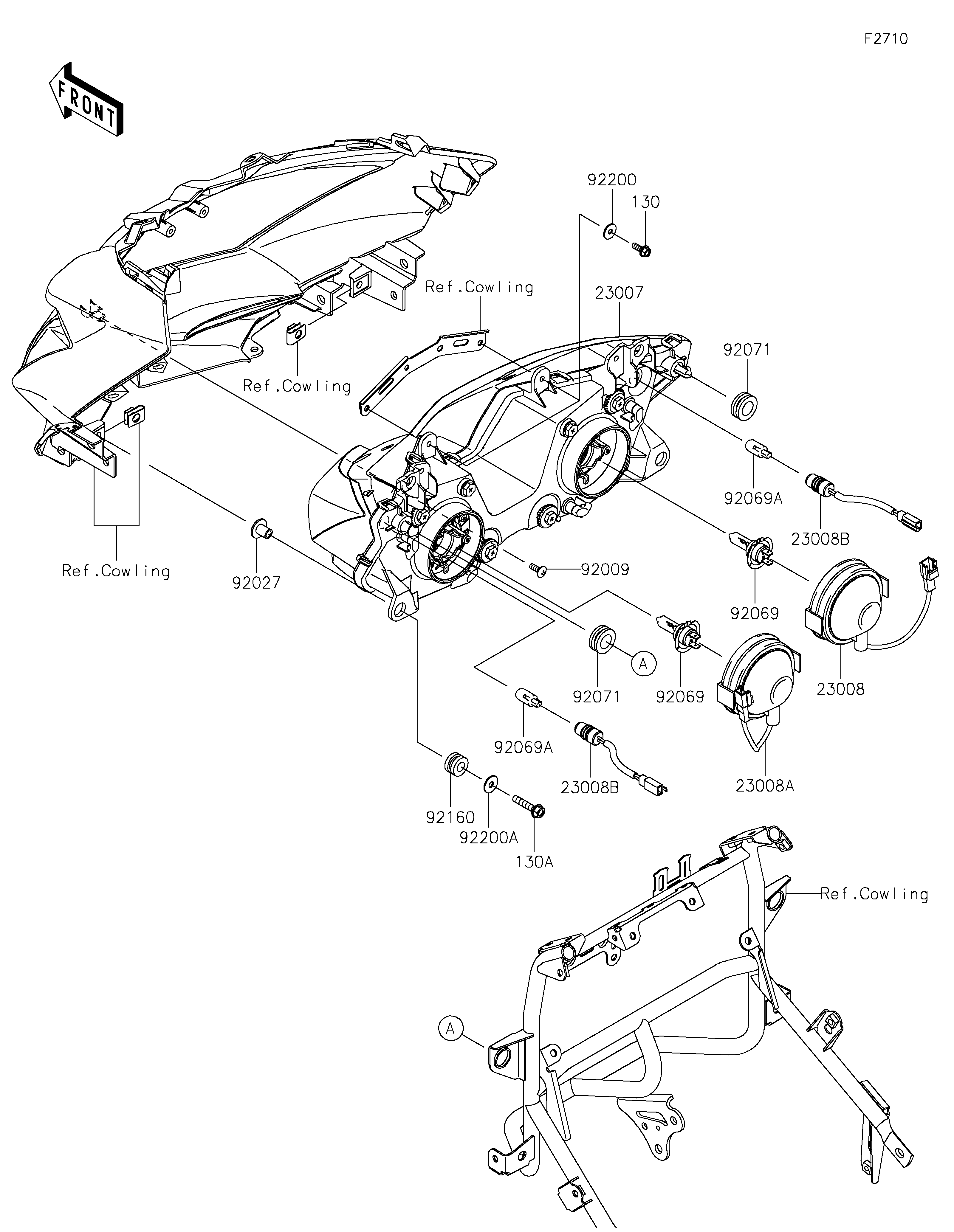

2021 VERSYS® 650 ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
23007
23008
23008A
23008B
23008B
92009
92027
92069
92069
92069A
92069A
92071
92071
92160
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130BA0514 2
BOLT-FLANGED,6X30 130A 130BA0630 2
LENS-COMP 23007 23007-0174 1
SOCKET-ASSY,LO BEAM 23008 23008-0135 1
SOCKET-ASSY,HI BEAM 23008A 23008-0136 1
SOCKET-ASSY,POSITION LAMP 23008B 23008-0152 2
SCREW,TAPPING,5X14 92009 92009-1197 1
COLLAR,6.5X10X14.1 92027 92027-1183 2
BULB,12V 55W,H7 92069 92069-0053 2
BULB,12V 5W 92069A 92069-1016 2
GROMMET 92071 92071-1131 2
DAMPER,10X20X12 92160 92160-1167 2
WASHER,5.2X16X1.2 92200 92200-0583 2
WASHER,6.2X18X1.2 92200A 92200-1643 2
