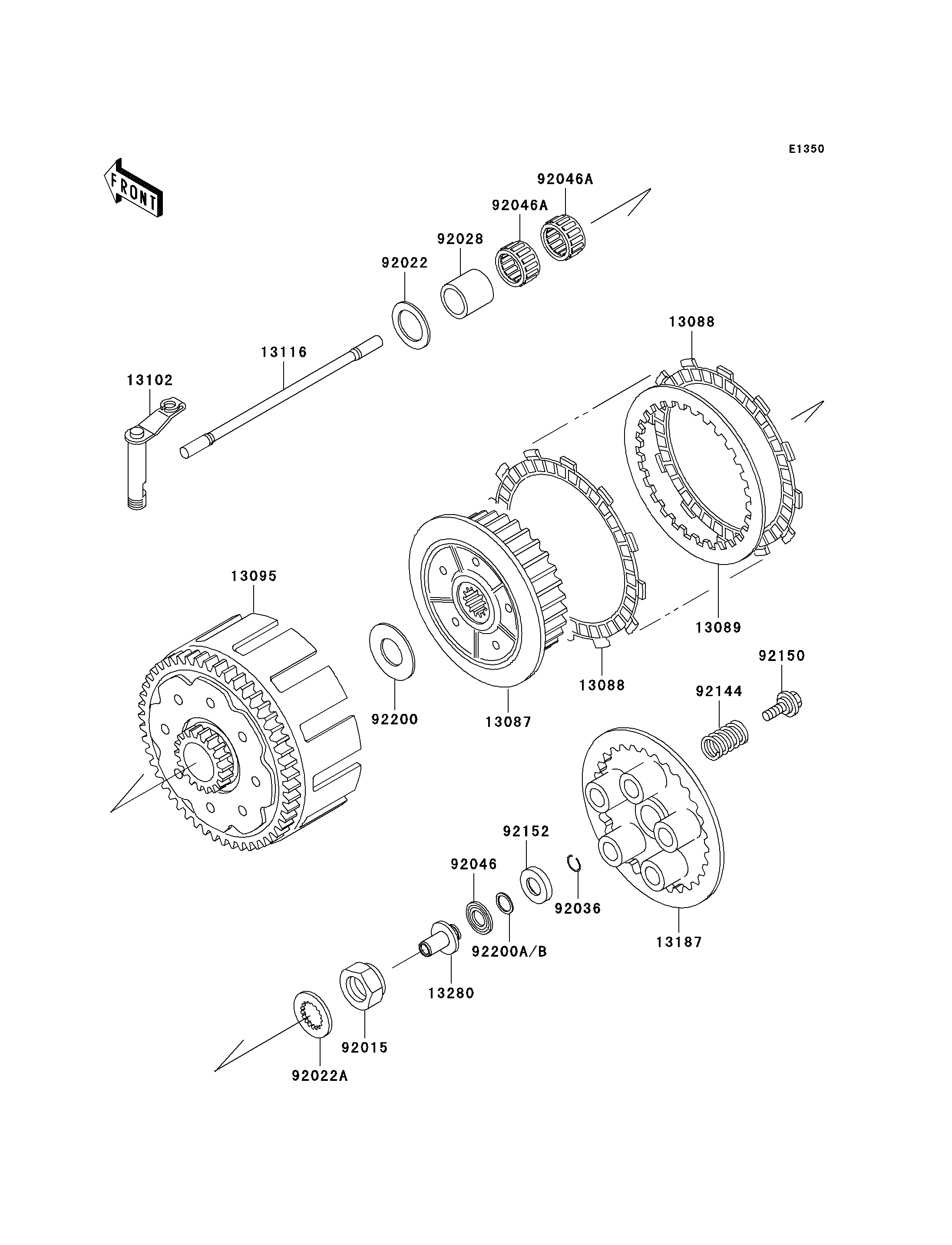

2002 KX250 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13089
13095
13102
13116
13187
13280
92015
92022
92022A
92028
92036
92046
92046A
92046A
92144
92150
92152
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1168 1
PLATE-FRICTION 13088 13088-1105 8
PLATE-CLUTCH 13089 13089-1066 7
HOUSING-COMP-CLUTCH 13095 13095-1405 1
RELEASE-COMP-CLUTCH 13102 13102-1154 1
ROD-PUSH 13116 13116-1162 1
PLATE-CLUTCH OPERATING 13187 13187-1087 1
HOLDER,CLUTCH RELEASE 13280 13280-1218 1
NUT,20MM 92015 92015-1725 1
WASHER,25.5X38X2 92022 92022-1075 1
WASHER 92022A 92022-1942 1
BUSHING 92028 92028-1702 1
RING-SNAP,PISTON PIN 92036 92036-007 1
BEARING-NEEDLE,FNTA-1326 92046 92046-1190 1
BEARING-NEEDLE,K30X34X13.8 92046A 92046-1222 2
SPRING,CLUTCH 92144 92144-1351 5
BOLT,6X22 92150 92150-1489 5
COLLAR 92152 92152-1282 1
WASHER,22.5X47X2 92200 92200-1143 1
WASHER,T=1.0 92200A 92200-1547 AR
WASHER,T=1.5 92200B 92200-1548 1
