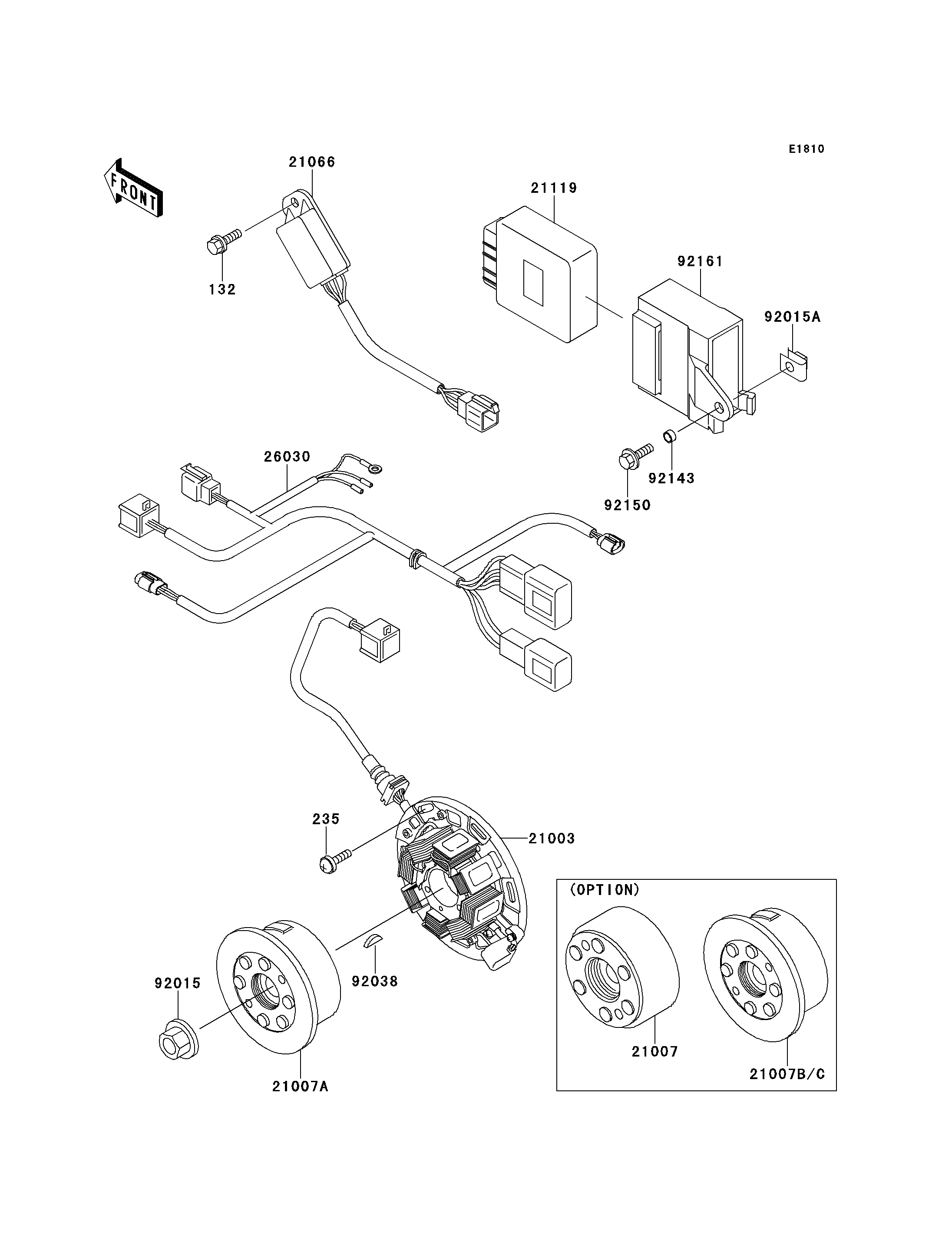

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0610 | 1 | ||
| SCREW-PAN-WP-CROS | 235 | 235B0616 | 3 | ||
| STATOR | 21003 | 21003-1371 | 1 | ||
| ROTOR,I=4.5KGCM2 | 21007 | 21007-1382 | 1 | (OPTION) | |
| ROTOR,I=4.9KGCM2 | 21007A | 21007-1383 | 1 | ||
| ROTOR,I=5.5KGCM2 | 21007B | 21007-1384 | 1 | (OPTION) | |
| ROTOR,I=5.9KGCM2 | 21007C | 21007-1385 | 1 | (OPTION) | |
| REGULATOR-VOLTAGE | 21066 | 21066-1123 | 1 | ||
| IGNITER | 21119 | 21119-1573 | 1 | ||
| HARNESS | 26030 | 26030-1794 | 1 | ||
| NUT,FLANGED,12MM | 92015 | 92015-1156 | 1 | ||
| NUT,6MM | 92015A | 92015-1602 | 1 | ||
| KEY,WOODRUFF | 92038 | 92038-001 | 1 | ||
| COLLAR | 92143 | 92143-1561 | 1 | ||
| BOLT,FLANGED,6X16 | 92150 | 92150-1506 | 1 | ||
| DAMPER | 92161 | 92161-1156 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 235 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,I=4.5KGCM2 | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| ROTOR,I=4.9KGCM2 | |
| REF # | 21007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,I=5.5KGCM2 | |
| REF # | 21007B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| ROTOR,I=5.9KGCM2 | |
| REF # | 21007C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY,WOODRUFF | |
| REF # | 92038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X16 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
