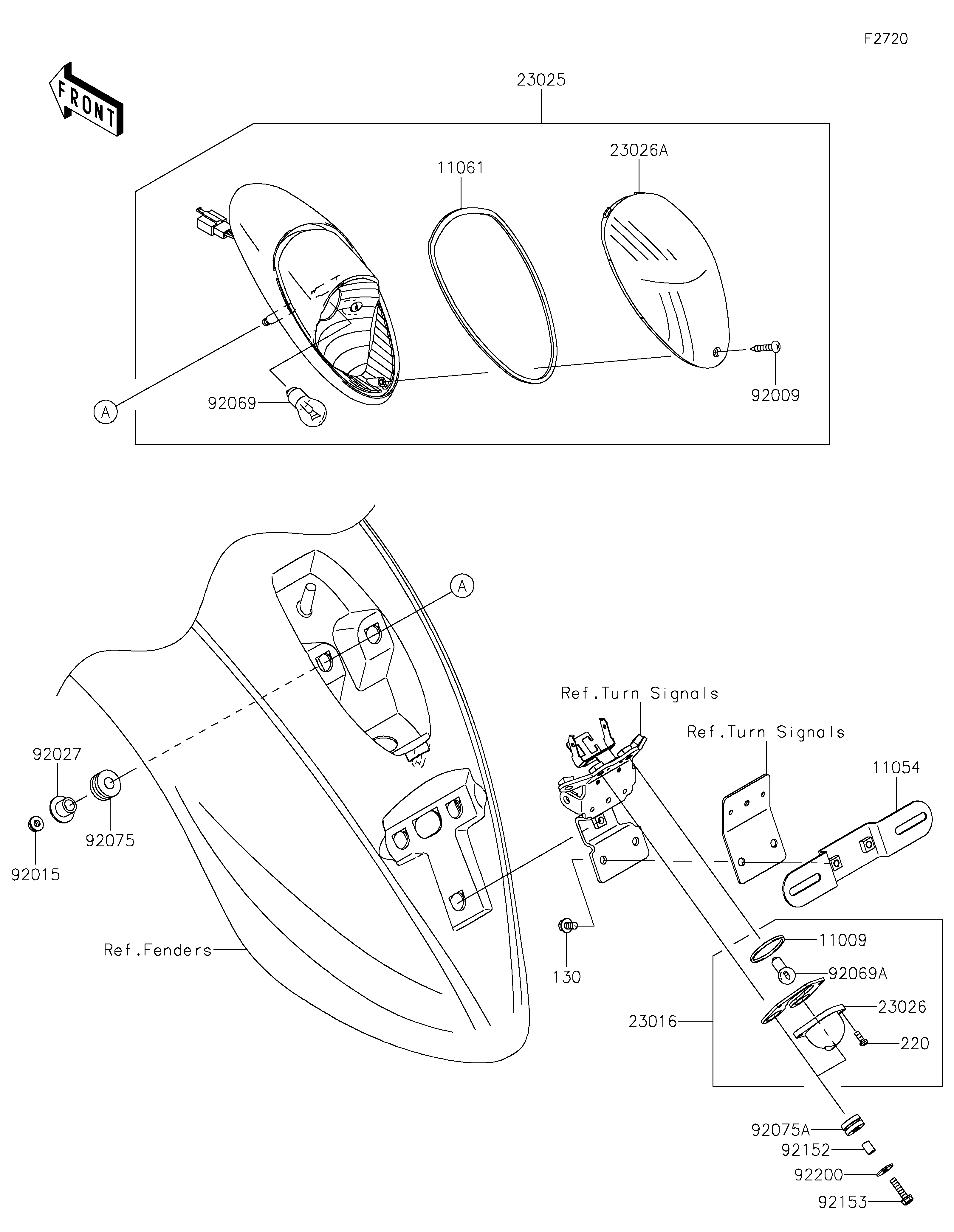

2021 VULCAN® 900 CLASSIC - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11054
11061
130
220
23016
23025
23026
23026A
92009
92015
92027
92069
92069A
92075
92075A
92152
92153
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
BRACKET,LICENSE 11054 11054-1761 1
GASKET,TAIL LAMP LENS 11061 11061-1089 1
BOLT-FLANGED,6X14 130 130BB0614 2
SCREW-PAN-CROS,4X10 220 220AA0410 2
LAMP-ASSY,LICENSE 23016 23016-0007 1
LAMP-TAIL 23025 23025-0025 1
LENS,LAMP 23026 23026-1054 1
LENS,TAIL LAMP 23026A 23026-1246 1
SCREW,TAPPING,4X16 92009 92009-1966 1
NUT,FLANGED,6MM 92015 92015-1367 2
COLLAR,L=13.1,BLACK 92027 92027-1450 2
BULB,12V 21/5W 92069 92069-063 1
BULB,12V 5W 92069A 92069-1055 1
DAMPER,10X24X12 92075 92075-1690 2
DAMPER 92075A 92075-209 2
COLLAR,6.8X10X13 92152 92152-0580 2
BOLT,FLANGED,6X25 92153 92153-0514 2
WASHER,6.5X20X1.6 92200 92200-0283 2
