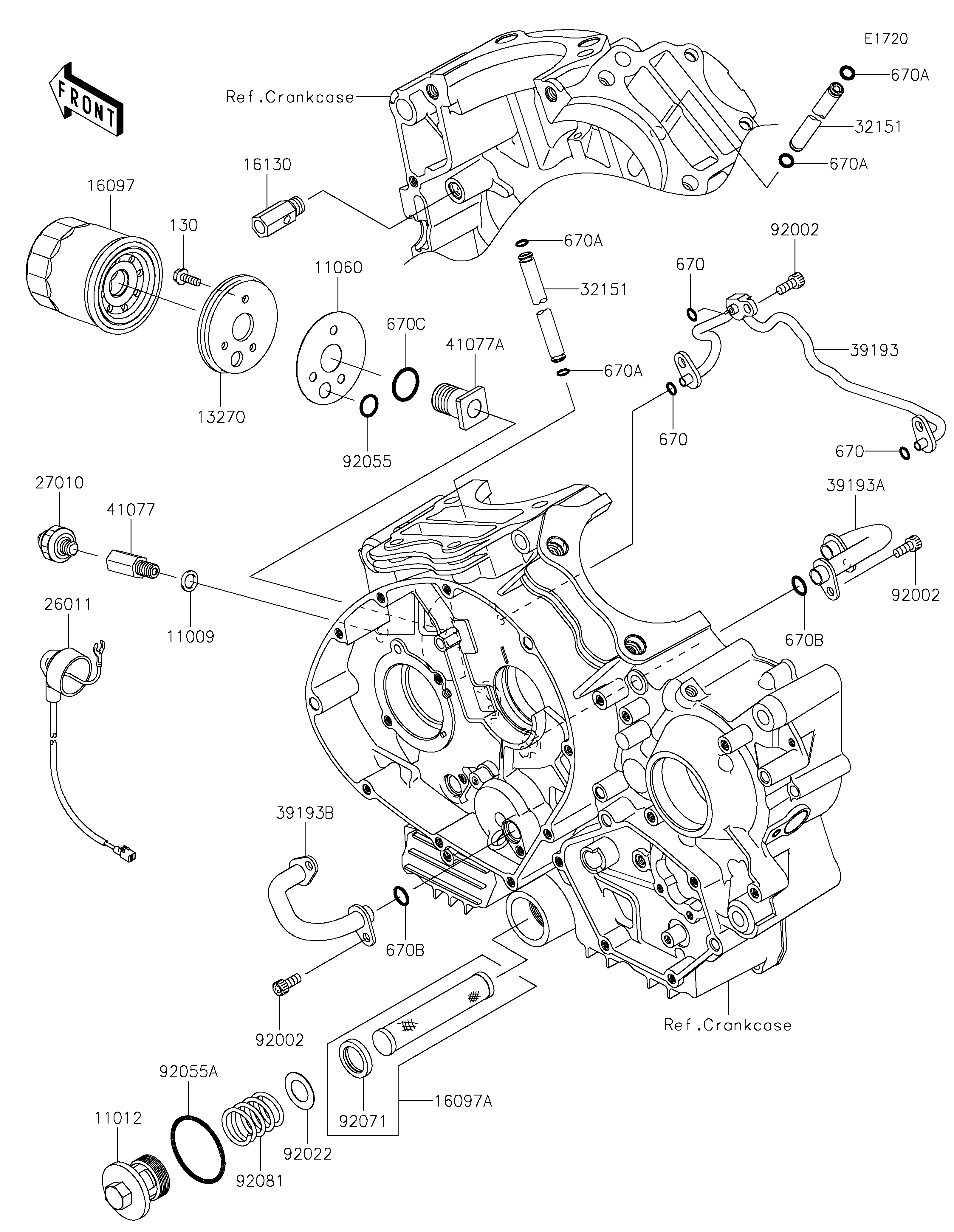

2021 VULCAN® 900 CLASSIC - Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11009
11012
11060
130
13270
16097
16097A
16130
26011
27010
32151
32151
39193
39193A
39193B
41077
41077A
670
670
670
670A
670A
670A
670A
670B
670B
670C
92002
92002
92002
92022
92055
92055A
92071
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 1
CAP,OIL FILTER 11012 11012-1461 1
GASKET,OIL FILTER 11060 11060-1092 1
BOLT-FLANGED,5X14 130 130CA0514 3
PLATE,OIL FILTER 13270 13270-1170 1
FILTER-ASSY-OIL 16097 16097-0008 1
FILTER-ASSY-OIL 16097A 16097-1058 1
VALVE-ASSY-RELIEF 16130 16130-0002 1
WIRE-LEAD 26011 26011-0109 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE 32151 32151-1895 2
PIPE-OIL 39193 39193-0035 1
PIPE-OIL 39193A 39193-0036 1
PIPE-OIL 39193B 39193-0037 1
ADAPTER,PRESSURE SWITCH 41077 41077-0017 1
ADAPTER 41077A 41077-0024 1
O RING,6MM 670 670D1506 3
O RING,7MM 670A 670D1507 4
O RING,12MM 670B 670D2012 4
O RING,20MM 670C 670D2020 1
BOLT,SOCKET,6X14 92002 92002-1592 7
WASHER,16.5X28X0.5 92022 92022-169 1
RING-O,13.0X1.9 92055 92055-1011 1
RING-O,35.2X2.4 92055A 92055-1358 1
GROMMET,OIL STRAINER 92071 92071-100 1
SPRING,OIL FILTER 92081 92081-1862 1
