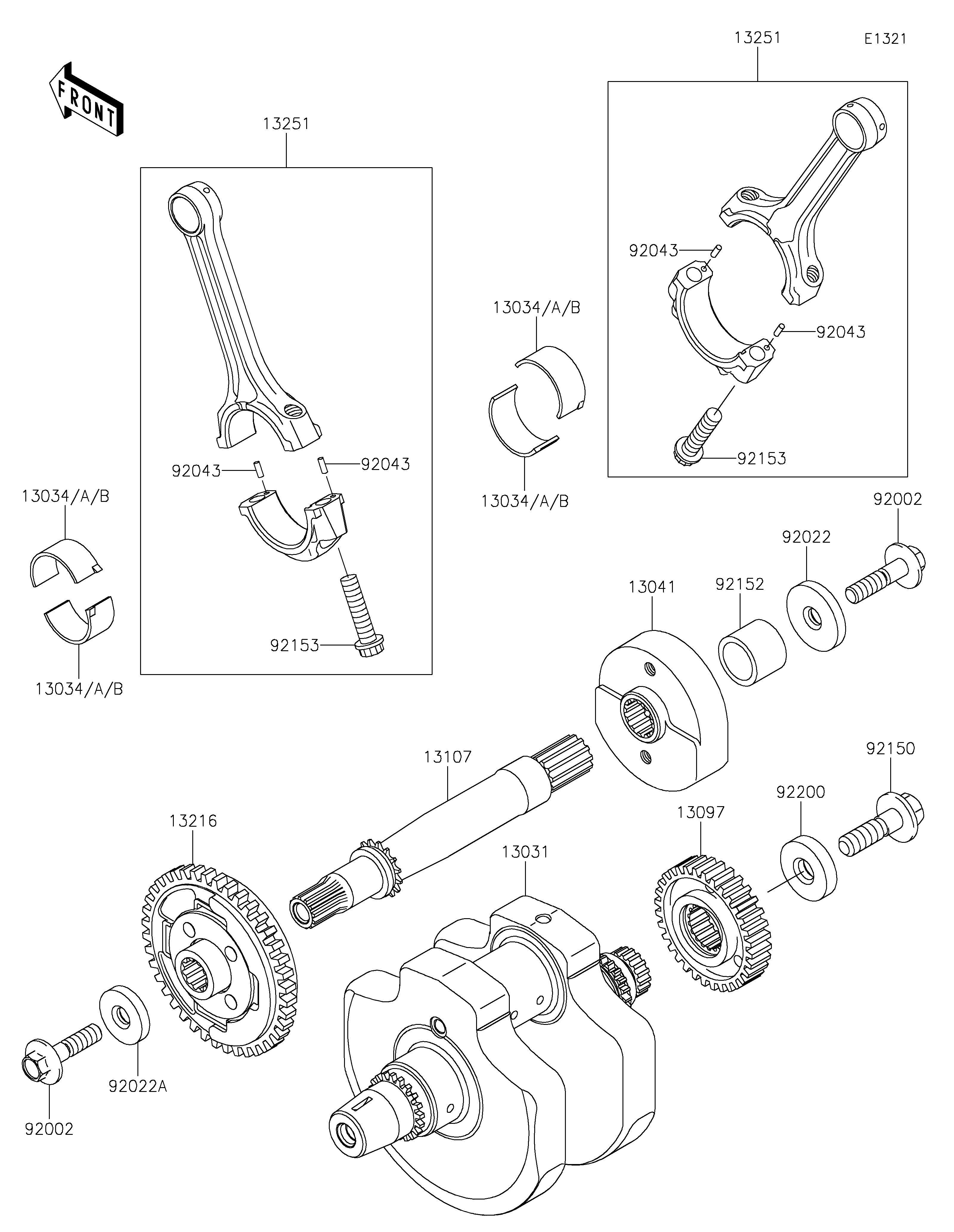

2021 VULCAN® 900 CLASSIC - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13034
13034
13034
13034
13034A
13034A
13034A
13034A
13034B
13034B
13034B
13034B
13041
13097
13107
13216
13251
13251
92002
92002
92022
92022A
92043
92043
92043
92043
92150
92152
92153
92153
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-0058 1
METAL,CONNECTING ROD,BLUE 13034 13034-1057 AR
METAL,CONNECTING ROD,BLACK 13034A 13034-1058 AR
METAL,CONNECTING ROD,BROWN 13034B 13034-1059 AR
BALANCER,RH 13041 13041-0009 1
GEAR-PRIMARY SPUR,38T 13097 13097-0050 1
SHAFT,BALANCER 13107 13107-0115 1
GEAR-COMP,BALANCER,LH 13216 13216-0016 1
ROD-ASSY-CONNECTING,J 13251 13251-0016-JJ 2
BOLT,FLANGED,10X40 92002 92002-1296 2
WASHER,10X40X6 92022 92022-1905 1
WASHER,10X33X6 92022A 92022-1906 1
PIN,3X8.5 92043 92043-0033 4
BOLT,12X40 92150 92150-1717 1
COLLAR,23X30X23 92152 92152-0358 1
BOLT,CON-ROD,9X38 92153 92153-1330 4
WASHER,12X36X8 92200 92200-1249 1
