Parts Diagrams

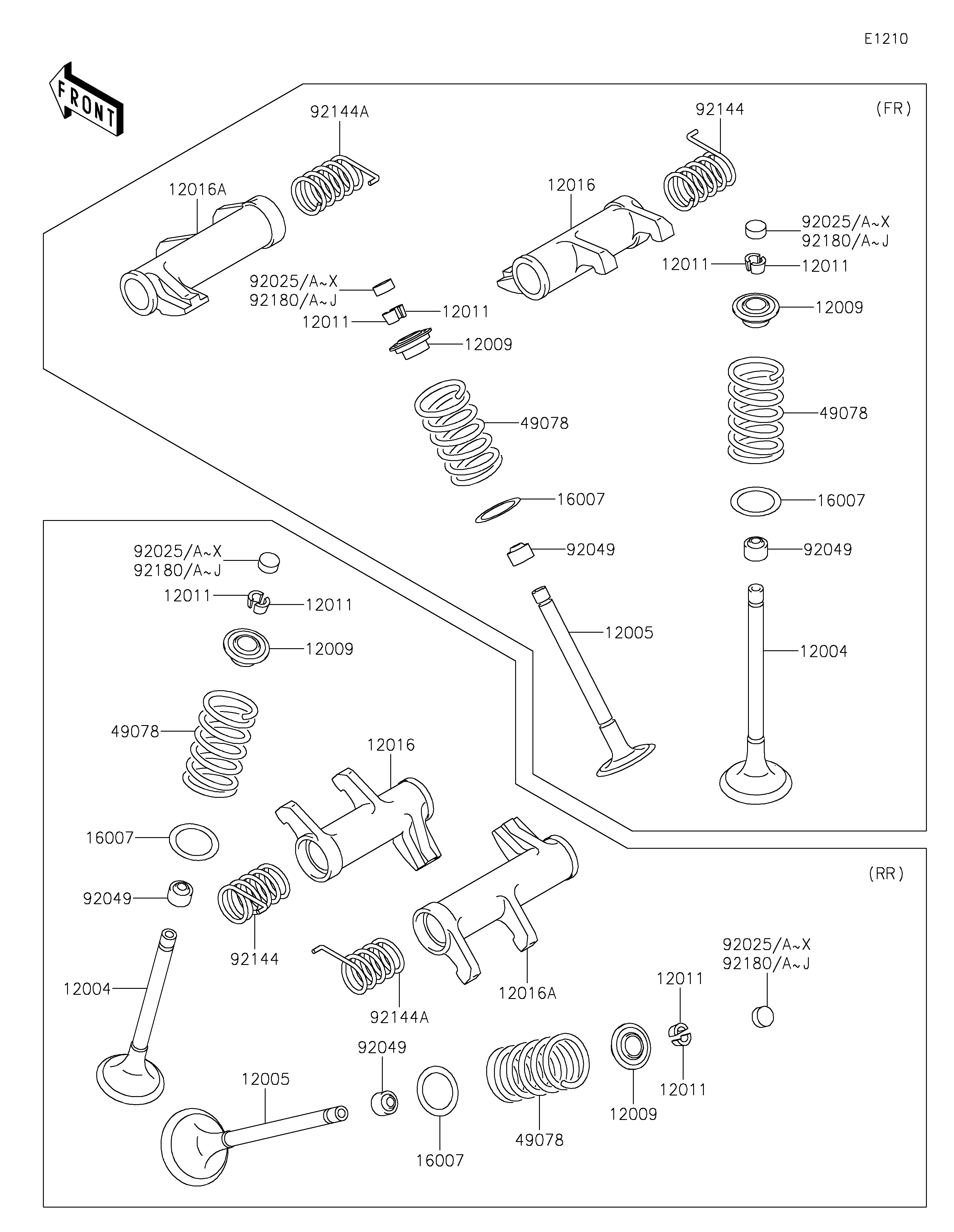

2021 VULCAN® 900 CLASSIC - Valve(s)

DOWNLOAD PDF

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

12004

12005

12009

12011

12016

12016A

16007

49078

92025

92025A

92025B

92025C

92025D

92025E

92025F

92025G

92025H

92025I

92025J

92025K

92025L

92025M

92025N

92025O

92025P

92025Q

92025R

92025S

92025T

92025U

92025V

92025W

92025X

92049

92144

92144A

92180

92180A

92180B

92180C

92180D

92180E

92180F

92180G

92180H

92180I

92180J

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY
VALVE-INTAKE	12004	12004-1139	4
VALVE-EXHAUST	12005	12005-1225	4
RETAINER-VALVE SPRING	12009	12009-3701	8
COLLET	12011	12011-1051	16
ARM-ROCKER,INTAKE	12016	12016-0019	2
ARM-ROCKER,EXHAUST	12016A	12016-0020	2
SEAT-SPRING,17.5X23.8X0.5	16007	16007-1178	8
SPRING-ENGINE VALVE,OUTER	49078	49078-1090	8
SHIM,T=2.00	92025	92025-1870	AR
SHIM,T=2.05	92025A	92025-1871	AR
SHIM,T=2.10	92025B	92025-1872	AR
SHIM,T=2.15	92025C	92025-1873	AR
SHIM,T=2.20	92025D	92025-1874	AR
SHIM,T=2.25	92025E	92025-1875	AR
SHIM,T=2.30	92025F	92025-1876	AR
SHIM,T=2.35	92025G	92025-1877	AR
SHIM,T=2.40	92025H	92025-1878	8
SHIM,T=2.45	92025I	92025-1879	AR
SHIM,T=2.50	92025J	92025-1880	AR
SHIM,T=2.55	92025K	92025-1881	AR
SHIM,T=2.60	92025L	92025-1882	AR
SHIM,T=2.65	92025M	92025-1883	AR
SHIM,T=2.70	92025N	92025-1884	AR
SHIM,T=2.75	92025O	92025-1885	AR
SHIM,T=2.80	92025P	92025-1886	AR
SHIM,T=2.85	92025Q	92025-1887	AR
SHIM,T=2.90	92025R	92025-1888	AR
SHIM,T=2.95	92025S	92025-1889	AR
SHIM,T=3.00	92025T	92025-1890	AR
SHIM,T=2.425	92025U	92025-1982	AR
SHIM,T=2.475	92025V	92025-1983	AR
SHIM,T=2.525	92025W	92025-1984	AR
SHIM,T=2.575	92025X	92025-1985	AR
SEAL-OIL,VSB58.558	92049	92049-1218	8
SPRING,ROCKER ARM,INTAKE	92144	92144-1899	2
SPRING,ROCKER ARM,EXHAUST	92144A	92144-1900	2
SHIM,T=2.375	92180	92180-1058	AR
SHIM,T=2.625	92180A	92180-1059	AR
SHIM,T=2.675	92180B	92180-1194	AR
SHIM,T=2.725	92180C	92180-1195	AR
SHIM,T=2.775	92180D	92180-1196	AR
SHIM,T=1.95	92180E	92180-1208	AR
SHIM,T=1.90	92180F	92180-1209	AR
SHIM,T=1.85	92180G	92180-1210	AR
SHIM,T=1.80	92180H	92180-1211	AR
SHIM,T=1.75	92180I	92180-1212	AR
SHIM,T=1.70	92180J	92180-1213	AR

VALVE-INTAKE
VALVE-INTAKE
REF #	12004
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

VALVE-EXHAUST
VALVE-EXHAUST
REF #	12005
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

RETAINER-VALVE SPRING
RETAINER-VALVE SPRING
REF #	12009
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

COLLET
COLLET
REF #	12011
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

ARM-ROCKER,INTAKE
ARM-ROCKER,INTAKE
REF #	12016
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

ARM-ROCKER,EXHAUST
ARM-ROCKER,EXHAUST
REF #	12016A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

SEAT-SPRING,17.5X23.8X0.5
SEAT-SPRING,17.5X23.8X0.5
REF #	16007
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SPRING-ENGINE VALVE,OUTER
SPRING-ENGINE VALVE,OUTER
REF #	49078
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SHIM,T=2.00
SHIM,T=2.00
REF #	92025
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.05
SHIM,T=2.05
REF #	92025A
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.10
SHIM,T=2.10
REF #	92025B
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.15
SHIM,T=2.15
REF #	92025C
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.20
SHIM,T=2.20
REF #	92025D
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.25
SHIM,T=2.25
REF #	92025E
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.30
SHIM,T=2.30
REF #	92025F
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.35
SHIM,T=2.35
REF #	92025G
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.40
SHIM,T=2.40
REF #	92025H
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SHIM,T=2.45
SHIM,T=2.45
REF #	92025I
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.50
SHIM,T=2.50
REF #	92025J
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.55
SHIM,T=2.55
REF #	92025K
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.60
SHIM,T=2.60
REF #	92025L
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.65
SHIM,T=2.65
REF #	92025M
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.70
SHIM,T=2.70
REF #	92025N
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.75
SHIM,T=2.75
REF #	92025O
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.80
SHIM,T=2.80
REF #	92025P
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.85
SHIM,T=2.85
REF #	92025Q
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.90
SHIM,T=2.90
REF #	92025R
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.95
SHIM,T=2.95
REF #	92025S
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=3.00
SHIM,T=3.00
REF #	92025T
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.425
SHIM,T=2.425
REF #	92025U
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.475
SHIM,T=2.475
REF #	92025V
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.525
SHIM,T=2.525
REF #	92025W
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.575
SHIM,T=2.575
REF #	92025X
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SEAL-OIL,VSB58.558
SEAL-OIL,VSB58.558
REF #	92049
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SPRING,ROCKER ARM,INTAKE
SPRING,ROCKER ARM,INTAKE
REF #	92144
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

SPRING,ROCKER ARM,EXHAUST
SPRING,ROCKER ARM,EXHAUST
REF #	92144A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

SHIM,T=2.375
SHIM,T=2.375
REF #	92180
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.625
SHIM,T=2.625
REF #	92180A
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.675
SHIM,T=2.675
REF #	92180B
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.725
SHIM,T=2.725
REF #	92180C
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.775
SHIM,T=2.775
REF #	92180D
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.95
SHIM,T=1.95
REF #	92180E
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.90
SHIM,T=1.90
REF #	92180F
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.85
SHIM,T=1.85
REF #	92180G
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.80
SHIM,T=1.80
REF #	92180H
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.75
SHIM,T=1.75
REF #	92180I
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.70
SHIM,T=1.70
REF #	92180J
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS
