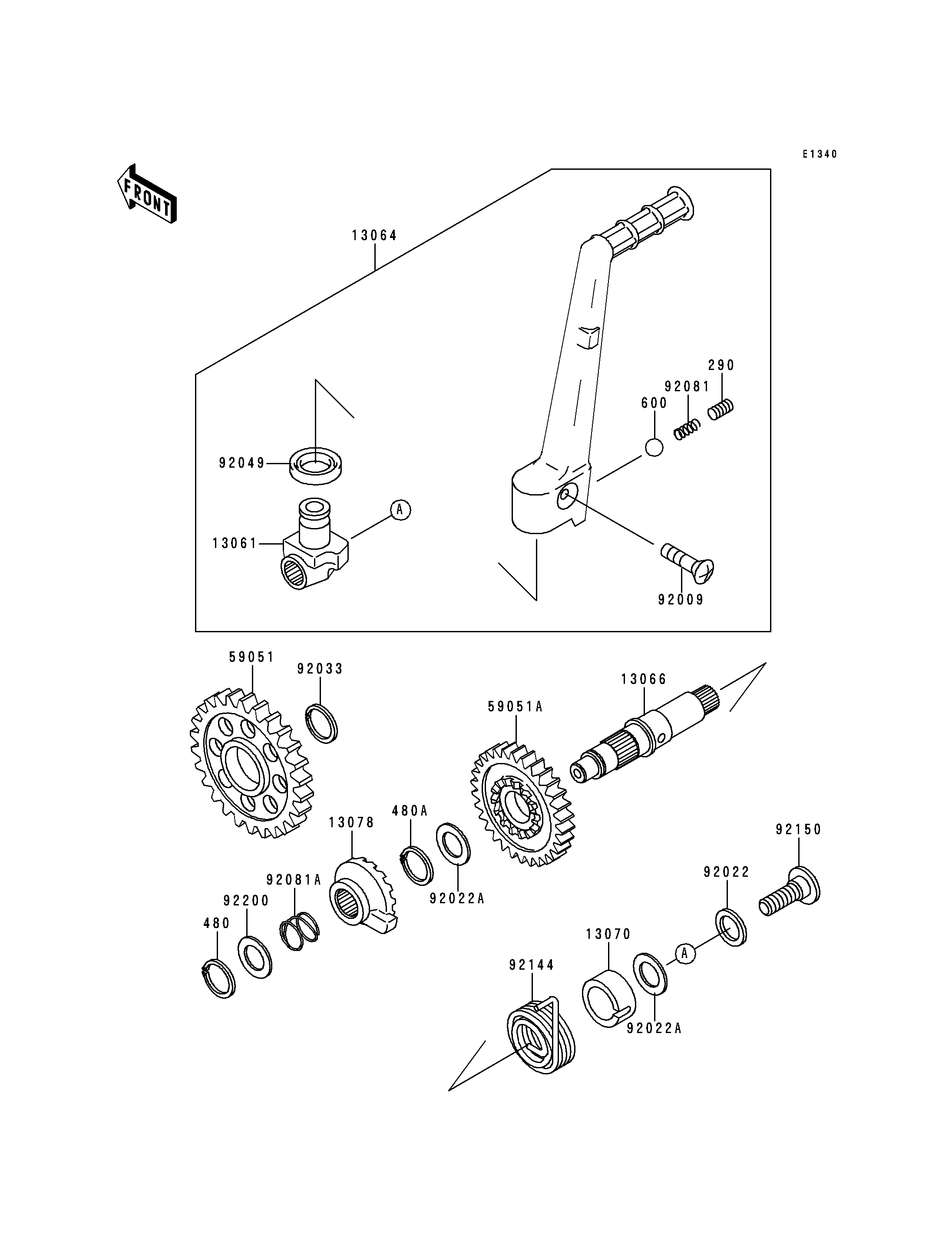

2000 KX250 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
290
480
480A
600
13061
13064
13066
13070
13078
59051
59051A
92009
92022
92022A
92022A
92033
92049
92081
92081A
92144
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET 290 290P0812 1
CIRCLIP-TYPE-C,16MM 480 480J1600 1
CIRCLIP-TYPE-C,18MM 480A 480J1800 1
BALL-STEEL,1/4" 600 600A0800 1
BOSS,KICK 13061 13061-1692 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1186 1
SHAFT-KICK 13066 13066-1099 1
GUIDE,KICK SPRING 13070 13070-1063 1
RATCHET 13078 13078-1063 1
GEAR,KICKSTARTER IDLE,26T 59051 59051-1271 1
GEAR-SPUR,KICK STARTER 59051A 59051-1339 1
SCREW,6X30 92009 92009-1590 1
WASHER 92022 92022-1944 1
WASHER,18.3X22X0.5 92022A 92022-271 2
RING-SNAP,18MM 92033 92033-029 1
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92144 92144-1076 1
BOLT,DISC PLATE,8X25 92150 92150-1858 1
WASHER,KICKSHAFT 92200 92200-1209 1
