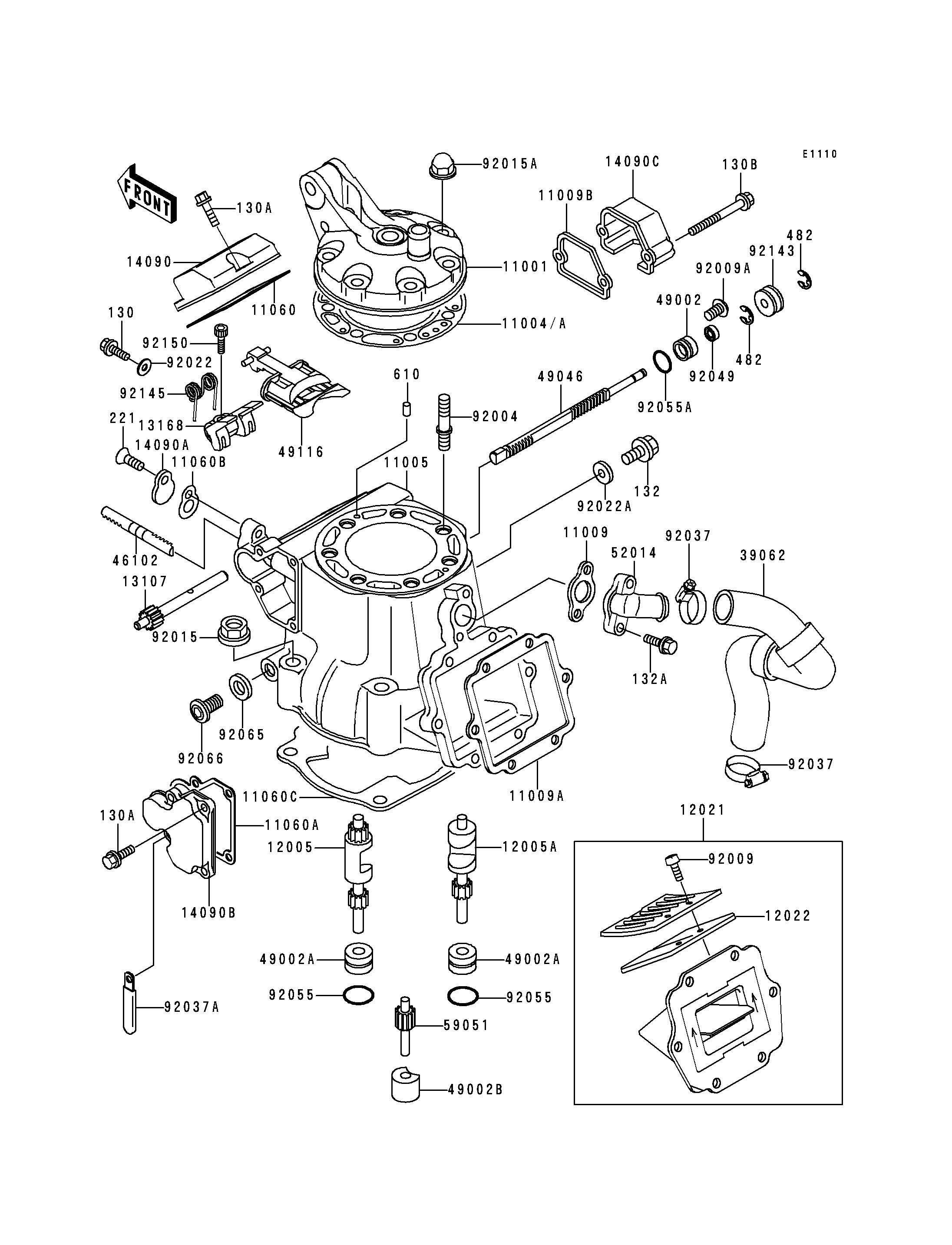

2000 KX250 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11001
11001
11004
11004
11004A
11004A
11005
11005
11009
11009
11009A
11009A
11009B
11009B
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
12005
12005
12005A
12005A
12021
12021
12022
12022
13107
13107
13168
13168
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
39062
39062
46102
46102
49002
49002
49002A
49002A
49002A
49002A
49002B
49002B
49046
49046
49116
49116
52014
52014
59051
59051
92004
92004
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92037
92037
92037
92037
92037A
92037A
130
130
130A
130A
130A
130A
130B
130B
132
132
132A
132A
221
221
482
482
482
482
610
610
92049
92049
92055
92055
92055
92055
92055A
92055A
92065
92065
92066
92066
92143
92143
92145
92145
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1425 1
GASKET-HEAD,T=0.26 11004 11004-1240 1
GASKET-HEAD,T=0.46 11004A 11004-1241 1 (OPTION)
CYLINDER-ENGINE 11005 11005-1911 1
GASKET,ELBOW 11009 11009-1935 1
GASKET,REED VALVE 11009A 11009-1950 1
GASKET,GOVERNOR COVER 11009B 11009-1960 1
GASKET,VALVE COVER 11060 11060-1289 1
GASKET,RESONATOR 11060A 11060-1290 1
GASKET,GOVERNOR ROD 11060B 11060-1346 1
GASKET,CYLINDER BASE 11060C 11060-1493 1
VALVE-EXHAUST,LH 12005 12005-1284 1
VALVE-EXHAUST,RH 12005A 12005-1285 1
VALVE-ASSY-REED 12021 12021-1121 1
VALVE-REED 12022 12022-1081 2
SHAFT 13107 13107-1455 1
LEVER 13168 13168-1680 1
COVER,VALVE COVER 14090 14090-1219 1
COVER,ROD 14090A 14090-1220 1
COVER,RESONATOR 14090B 14090-1226 1
COVER,GOVERNOR 14090C 14090-1249 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1478 1
ROD 46102 46102-1437 1
GUIDE-VALVE 49002 49002-1087 1
GUIDE-VALVE 49002A 49002-1117 2
GUIDE-VALVE 49002B 49002-1118 1
ROD-GOVERNOR 49046 49046-1074 1
VALVE-ASSY 49116 49116-1180 1
ELBOW 52014 52014-1077 1
GEAR-SPUR,IDLER 59051 59051-1371 1
STUD,8X28 92004 92004-1236 7
SCREW,REED VALVE 92009 92009-1014 4
SCREW,5X10 92009A 92009-1502 1
NUT,FLANGED,10MM 92015 92015-077 4
NUT,CAP,8MM 92015A 92015-1151 7
WASHER,5.2X13X1 92022 92022-1380 2
WASHER,6.2X11X1 92022A 92022-304 1
CLAMP,COOLING HOSE 92037 92037-1589 2
CLAMP 92037A 92037-1993 1
BOLT-FLANGED 130 130G0510 2
BOLT-FLANGED 130A 130G0514 7
BOLT-FLANGED 130B 130G0535 2
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 2
SCREW-CSK-CROS,6X12 221 221B0612 1
CIRCLIP-TYPE-E,4MM 482 482J4000 2
ROLLER,4X8 610 610A0408 2
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,17.5X1.5 92055 92055-022 2
RING-O,11.5X1.5 92055A 92055-1387 1
GASKET,12.5X18X1,DRAIN PLUG 92065 92065-073 1
PLUG,12X10 92066 92066-1222 1
COLLAR 92143 92143-1056 1
SPRING 92145 92145-1287 1
BOLT,SOCKET,4X8 92150 92150-1888 1
