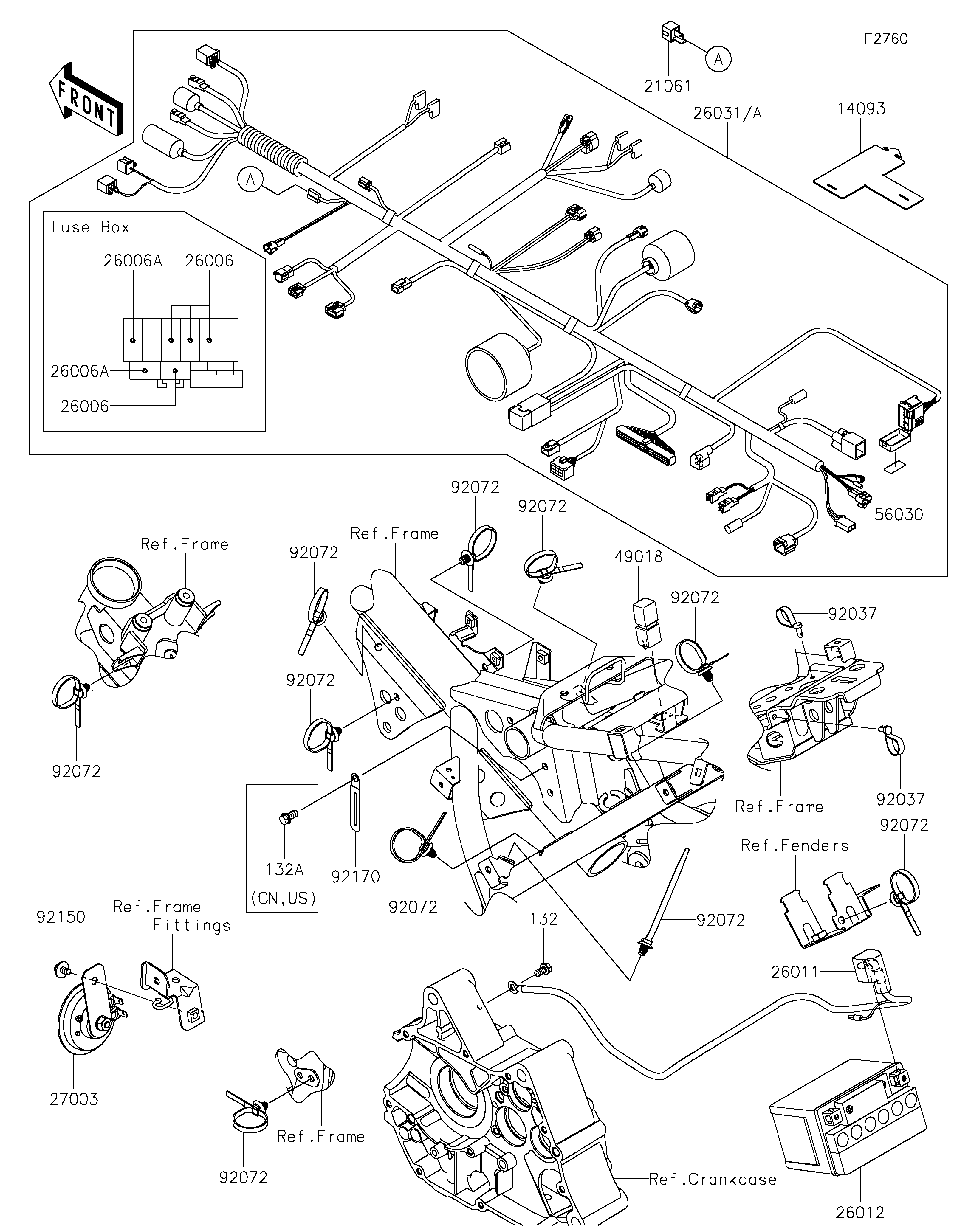

2021 Z125 PRO - Chassis Electrical Equipment
132
14093
21061
26006
26006
26006A
26006A
26011
26012
27003
49018
56030
92037
92037
92072
92072
92072
92072
92072
92072
92072
92072
92072
92072
92150
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 1 | ||
| COVER,CONNECTOR | 14093 | 14093-0486 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| FUSE,MINI BLADE,10A | 26006 | 26006-0031 | 4 | ||
| FUSE,MINI BLADE,20A | 26006A | 26006-0032 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0920 | 1 | ||
| BATTERY,FTH4L-BS,12V 3AH | 26012 | 26012-0725 | 1 | ||
| HORN | 27003 | 27003-0120 | 1 | ||
| DIODE | 49018 | 49018-0005 | 1 | ||
| LABEL,FUSE BOX | 56030 | 56030-0983 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 10 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
| CLAMP | 92170 | 92170-1514 | 1 |
