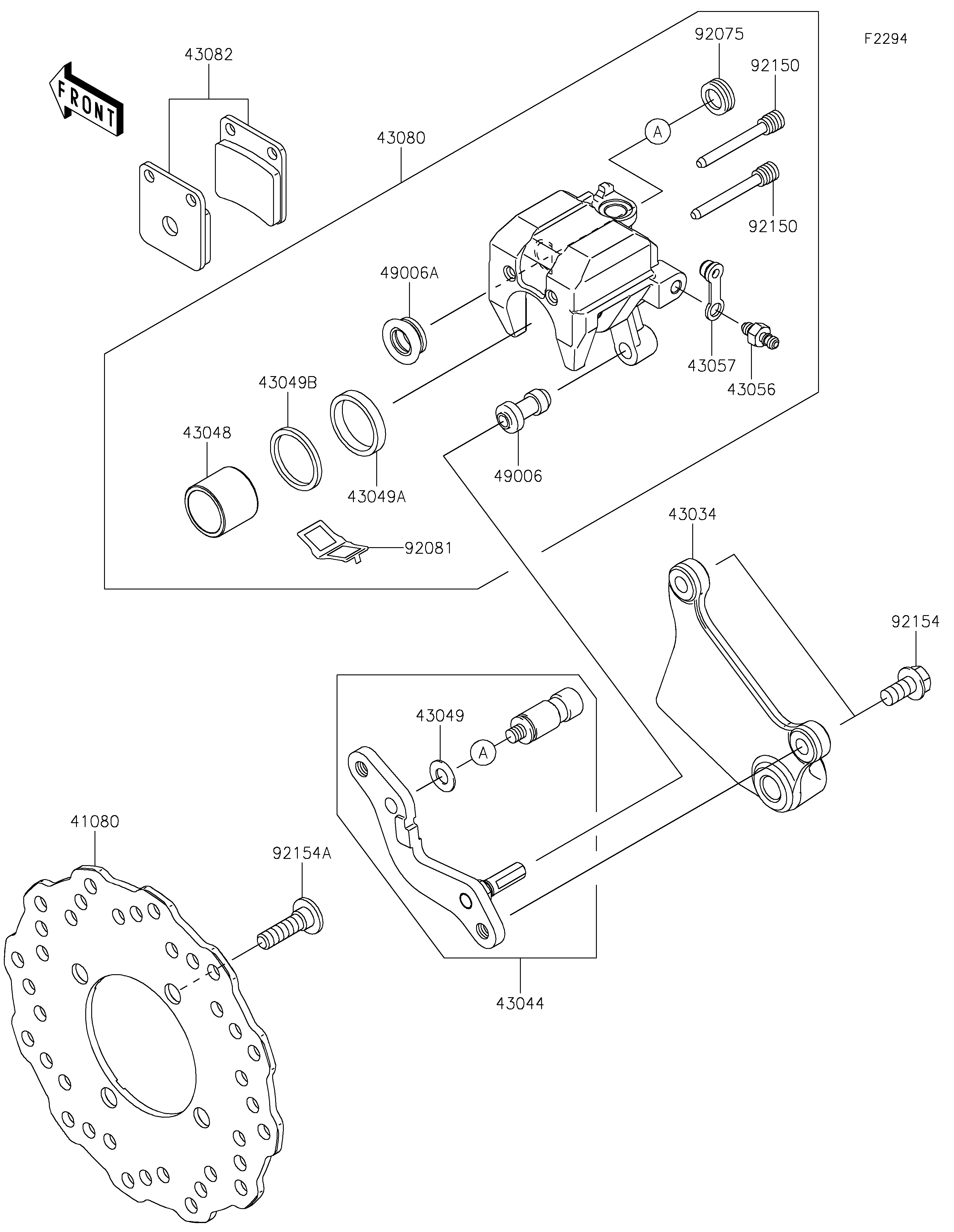

2021 Z125 PRO - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43034
43044
43048
43049
43049A
43049B
43056
43057
43080
43082
49006
49006A
92075
92081
92150
92150
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR 41080 41080-0652 1
HOLDER-BRAKE 43034 43034-0126 1
HOLDER-COMP-CALIPER,RR 43044 43044-1076 1
PISTON-CALIPER 43048 43048-1090 1
PACKING 43049 43049-1025 1
PACKING,PISTON SEAL 43049A 43049-1060 1
PACKING,PISTON SEAL 43049B 43049-1061 1
BREATHER-BRAKE 43056 43056-0004 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,R.GOLD 43080 43080-0132-483 1
PAD-ASSY-BRAKE 43082 43082-0043 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1089 1
DAMPER 92075 92075-1414 1
SPRING,PAD 92081 92081-1502 1
BOLT 92150 92150-1144 2
BOLT,FLANGED,8X17 92154 92154-1261 2
BOLT,SOCKET,8X30 92154A 92154-1865 4
