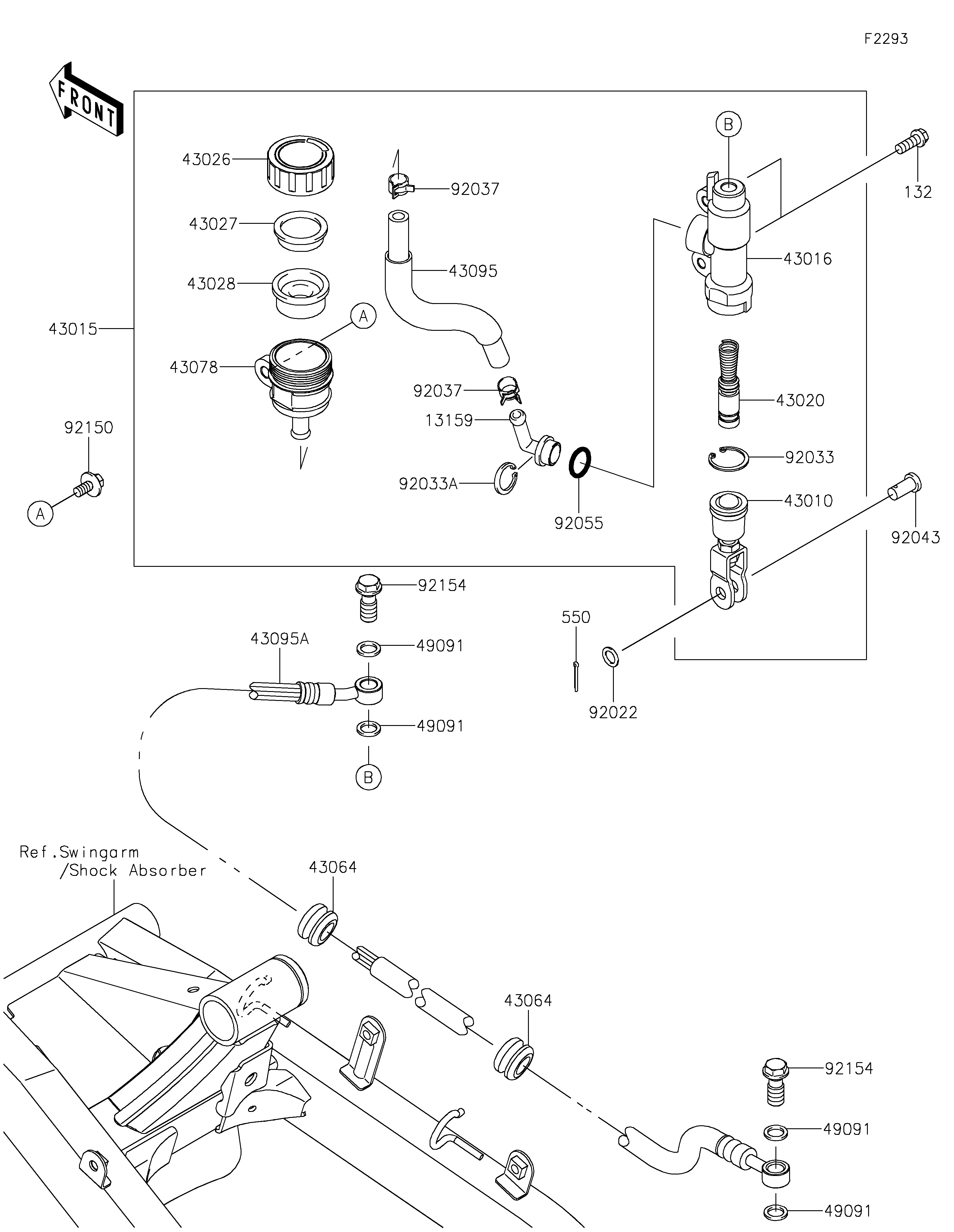

2021 Z125 PRO - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13159
132
43010
43015
43016
43020
43026
43027
43028
43064
43064
43078
43095
43095A
49091
49091
49091
49091
550
92022
92033
92033A
92037
92037
92043
92055
92150
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR 13159 13159-1056 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
ROD-ASSY-BRAKE 43010 43010-1068 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0635 1
CYLINDER-MASTER 43016 43016-1149 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1062 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
GROMMET,HOSE CLAMP 43064 43064-006 2
RESERVOIR 43078 43078-1080 1
HOSE-BRAKE,RESERVOIR 43095 43095-0904 1
HOSE-BRAKE,RR,559MM 43095A 43095-0905 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
WASHER,8.5X13X1 92022 92022-1028 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,6X14 92150 92150-1340 1
BOLT,OIL,10X23 92154 92154-0830 2
