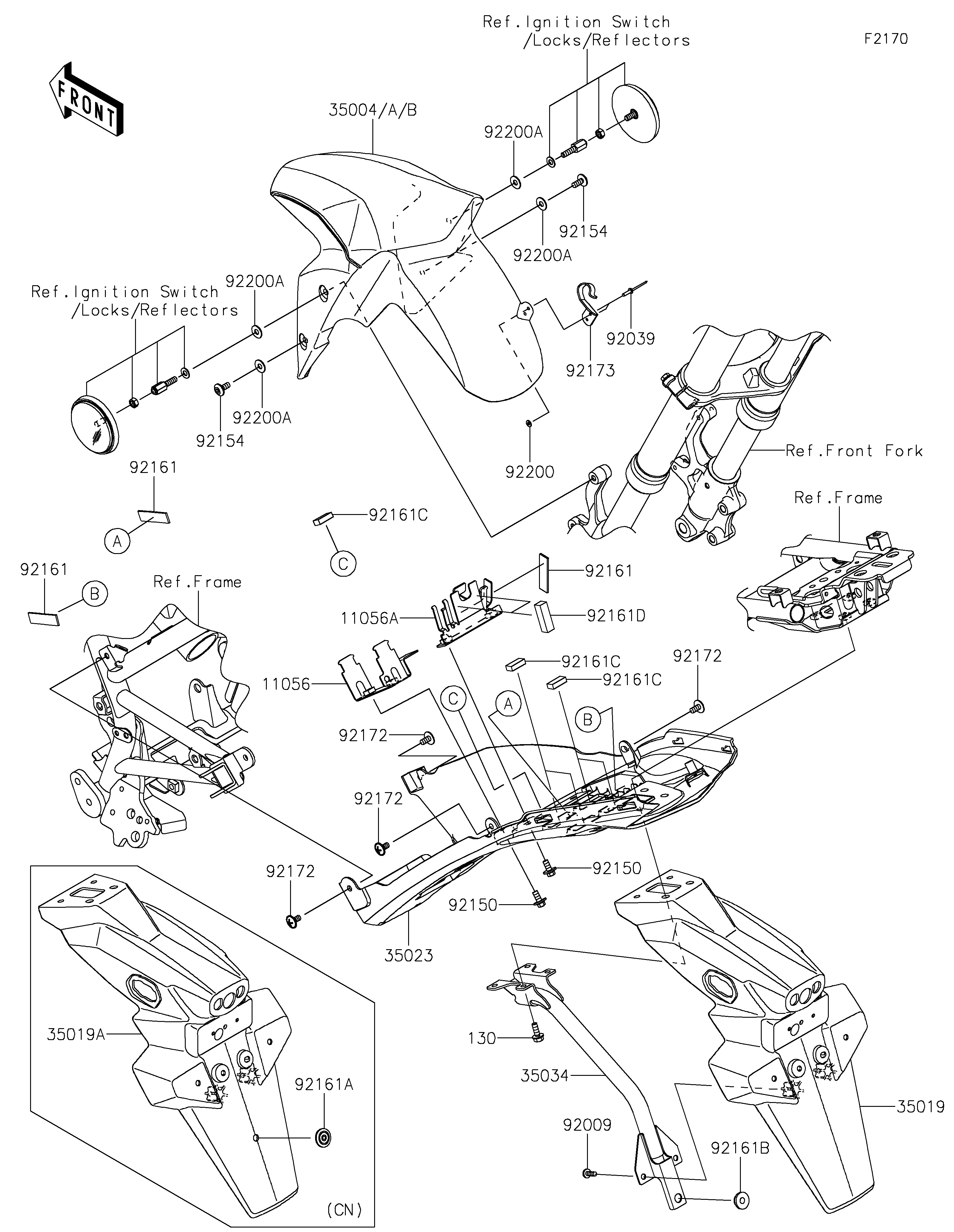

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11056
11056A
130
35004B
35023
35034
92009
92039
92150
92150
92154
92154
92161
92161
92161
92161B
92161C
92161C
92161C
92161D
92172
92172
92172
92172
92173
92200
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-7604 | 1 | ||
| BRACKET | 11056A | 11056-7605 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 4 | ||
| FENDER-FRONT,M.F.S.BLACK | 35004B | 35004-0352-739 | 1 | ||
| FENDER-REAR | 35023 | 35023-0410 | 1 | ||
| REINFORCE | 35034 | 35034-0597 | 1 | ||
| SCREW,6X14 | 92009 | 92009-3845 | 2 | ||
| RIVET | 92039 | 92039-1231 | 2 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 4 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-2161 | 2 | ||
| DAMPER | 92161 | 92161-1359 | 3 | ||
| DAMPER | 92161B | 92161-1810 | 1 | ||
| DAMPER | 92161C | 92161-1842 | 5 | ||
| DAMPER,10X35X11 | 92161D | 92161-1924 | 2 | ||
| SCREW,6X12 | 92172 | 92172-0394 | 4 | ||
| CLAMP | 92173 | 92173-1485 | 1 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 2 | ||
| WASHER,6.5X16X1 | 92200A | 92200-1784 | 4 |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,M.F.S.BLACK | |
| REF # | 35004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REINFORCE | |
| REF # | 35034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X35X11 | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,3.5X8X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
