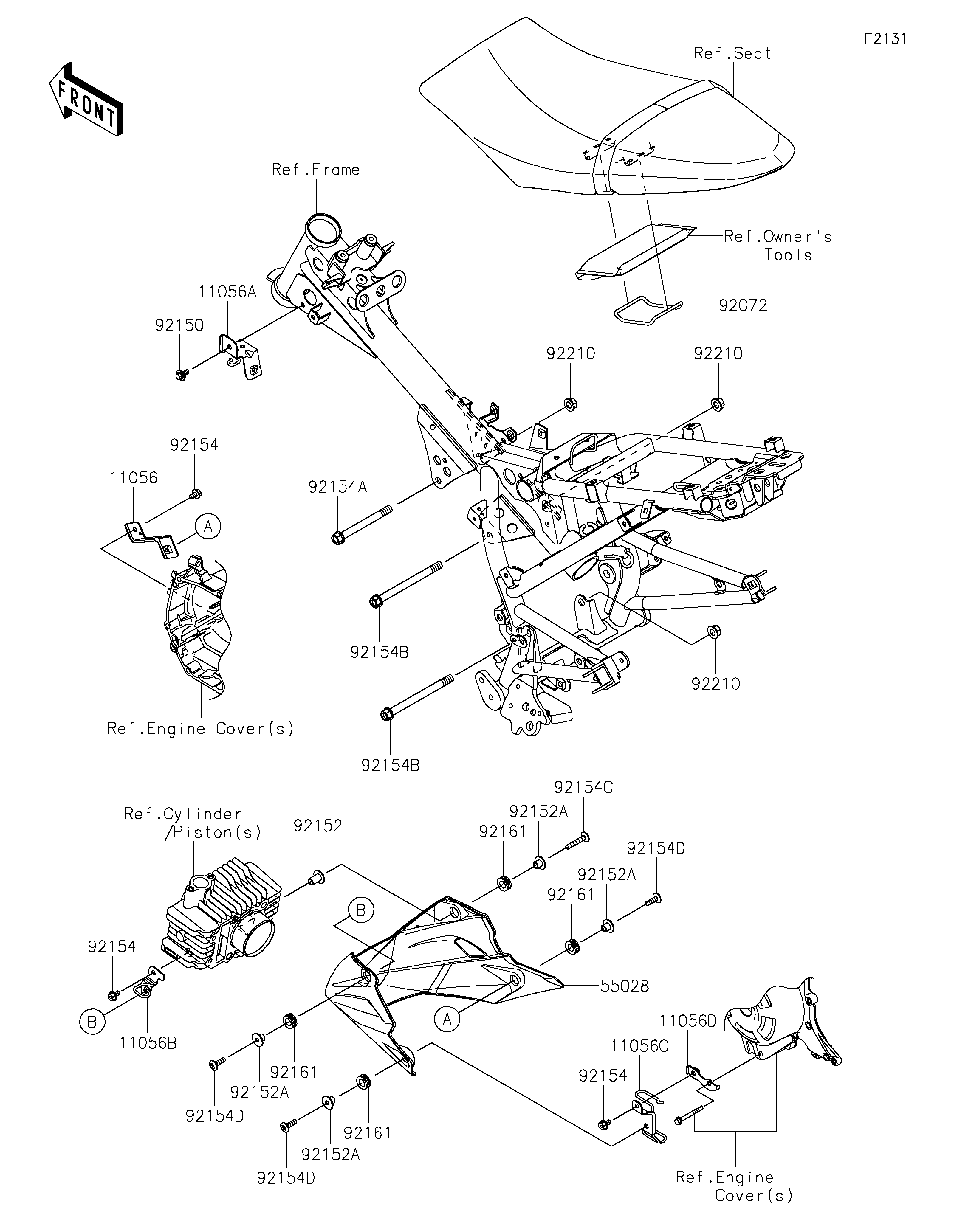

Parts Diagrams |
11056
11056A
11056B
11056C
11056D
55028
92072
92150
92152
92152A
92152A
92152A
92152A
92154
92154
92154
92154A
92154B
92154B
92154C
92154D
92154D
92154D
92161
92161
92161
92161
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RR,RH | 11056 | 11056-7592 | 1 | ||
| BRACKET | 11056A | 11056-7593 | 1 | ||
| BRACKET,FR,LH | 11056B | 11056-7607 | 1 | ||
| BRACKET,RR,LH | 11056C | 11056-7608 | 1 | ||
| BRACKET,GENERATOR COVER | 11056D | 11056-7718 | 1 | ||
| COWLING,LWR,F.BLACK | 55028 | 55028-0562-6Z | 1 | ||
| BAND,TOOL | 92072 | 92072-0781 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
| COLLAR,6.5X10X18 | 92152 | 92152-1560 | 1 | ||
| COLLAR,6.5X10X10.4 | 92152A | 92152-1688 | 4 | ||
| BOLT,FLANGED,6X10 | 92154 | 92154-1256 | 3 | ||
| BOLT,FLANGED,10X100 | 92154A | 92154-1257 | 1 | ||
| BOLT,FLANGED,10X125 | 92154B | 92154-1258 | 2 | ||
| BOLT,SOCKET,6X35 | 92154C | 92154-2121 | 1 | ||
| BOLT,SOCKET,6X20 | 92154D | 92154-2122 | 3 | ||
| DAMPER,10X20X8 | 92161 | 92161-1828 | 4 | ||
| NUT,FLANGED,10MM | 92210 | 92210-0869 | 3 |
| BRACKET,RR,RH | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FR,LH | |
| REF # | 11056B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RR,LH | |
| REF # | 11056C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,GENERATOR COVER | |
| REF # | 11056D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,F.BLACK | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,TOOL | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X18 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X10.4 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X100 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X125 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X35 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92154D |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X8 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
