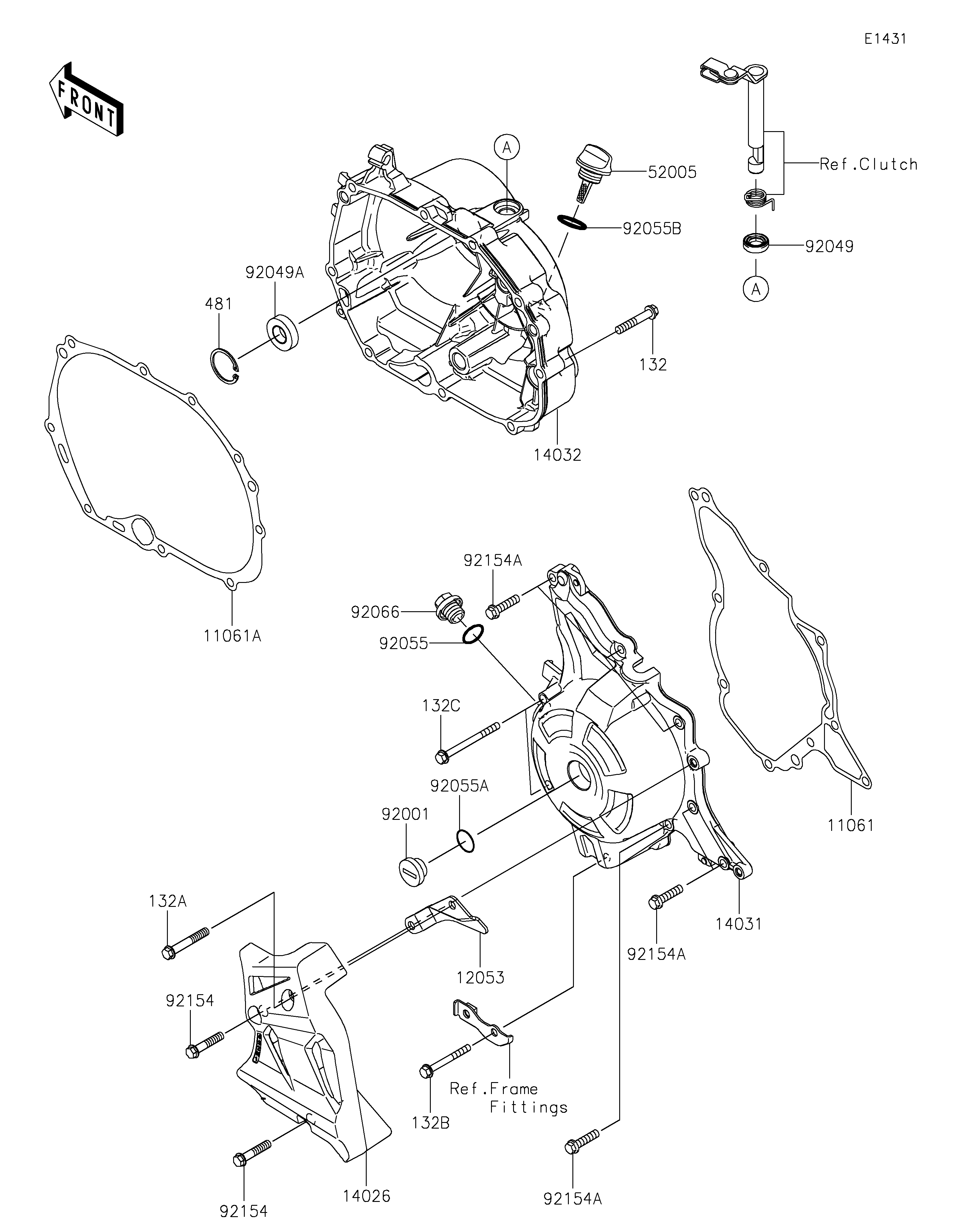

2021 Z125 PRO - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
12053
132
132A
132B
132C
14026
14031
14032
481
52005
92001
92049
92049A
92055
92055A
92055B
92066
92154
92154
92154A
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR 11061 11061-0125 1
GASKET,CLUTCH COVER 11061A 11061-0289 1
GUIDE-CHAIN 12053 12053-0233 1
BOLT-FLANGED-SMALL,6X35 132 132BA0635 9
BOLT-FLANGED-SMALL,6X40 132A 132BA0640 1
BOLT-FLANGED-SMALL,6X45 132B 132BA0645 1
BOLT-FLANGED-SMALL,6X60 132C 132BA0660 2
COVER-CHAIN 14026 14026-0127 1
COVER-GENERATOR,F.M.GRAY 14031 14031-0575-26M 1
COVER-CLUTCH,F.M.GRAY 14032 14032-0634-26M 1
CIRCLIP-TYPE-C,28MM 481 481J2800 1
GAUGE,OIL LEVEL 52005 52005-0756 1
BOLT,GENERATOR COVER CAP 92001 92001-1827 1
SEAL-OIL,12X20X5.5 92049 92049-0142 1
SEAL-OIL,AC0387E0 92049A 92049-1595 1
RING-O,14.8X2.4 92055 92055-0153 1
RING-O,25.7X2.4 92055A 92055-0154 1
RING-O,20X2 92055B 92055-0155 1
PLUG,14X10 92066 92066-1571 1
BOLT,FLANGED,6X30 92154 92154-1080 2
BOLT,FLANGED,6X25 92154A 92154-2154 6
