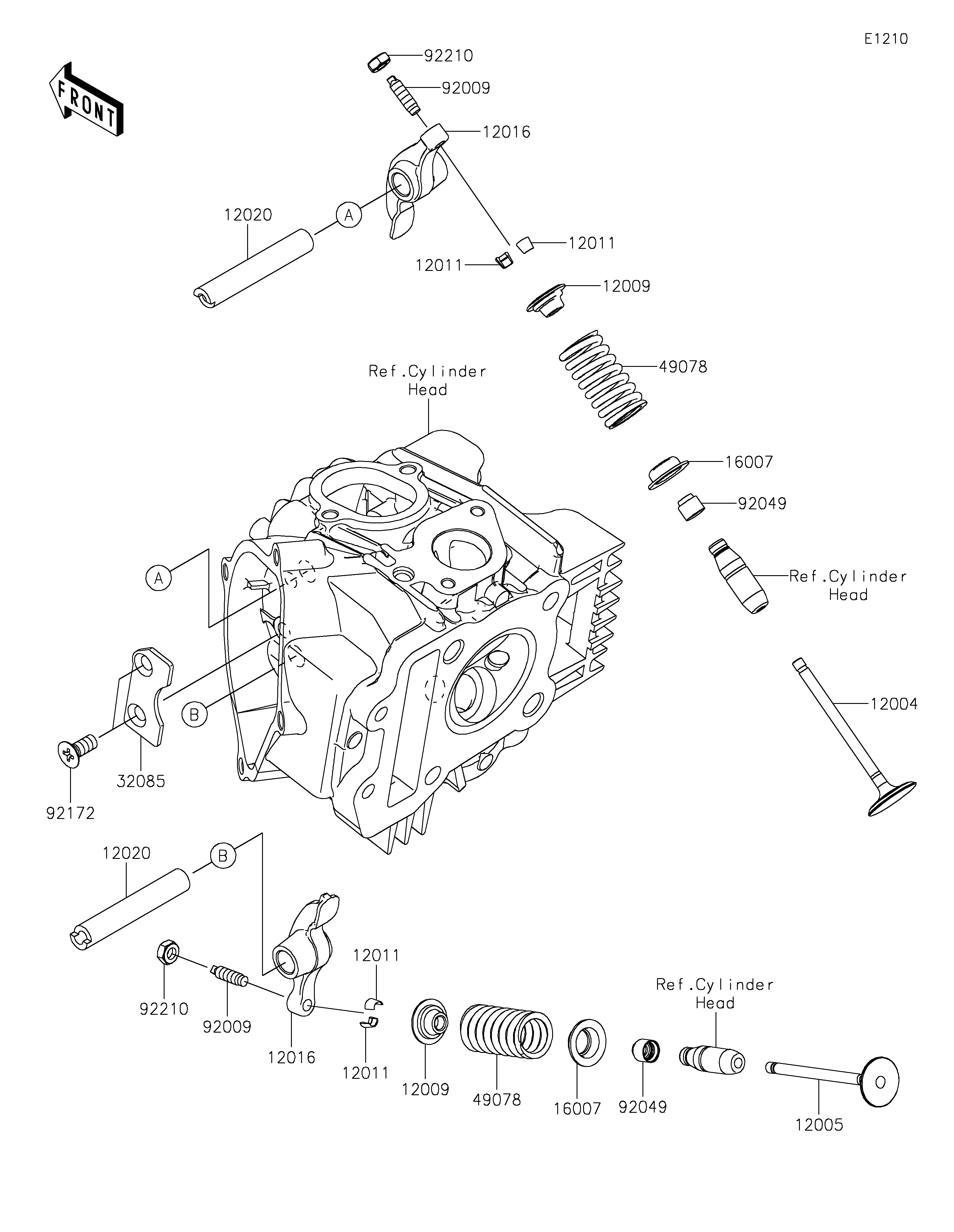

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
16007
16007
32085
49078
49078
92009
92009
92049
92049
92172
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-INTAKE | 12004 | 12004-0710 | 1 | ||
| VALVE-EXHAUST | 12005 | 12005-0713 | 1 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-1073 | 2 | ||
| COLLET | 12011 | 12011-1053 | 4 | ||
| ARM-ROCKER | 12016 | 12016-0001 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-0010 | 2 | ||
| SEAT-SPRING,VALVE | 16007 | 16007-1187 | 2 | ||
| STOPPER | 32085 | 32085-1553 | 1 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-1151 | 2 | ||
| SCREW,VALVE ADJUST | 92009 | 92009-1109 | 2 | ||
| SEAL-OIL,VSB 4.3 7.5 5.3 8.3 | 92049 | 92049-1349 | 2 | ||
| SCREW,6X15 | 92172 | 92172-0143 | 2 | ||
| NUT,VALVE ADJUST LOCK | 92210 | 92210-1491 | 2 |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,VALVE | |
| REF # | 16007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STOPPER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,VALVE ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,VSB 4.3 7.5 5.3 8.3 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X15 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,VALVE ADJUST LOCK | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
