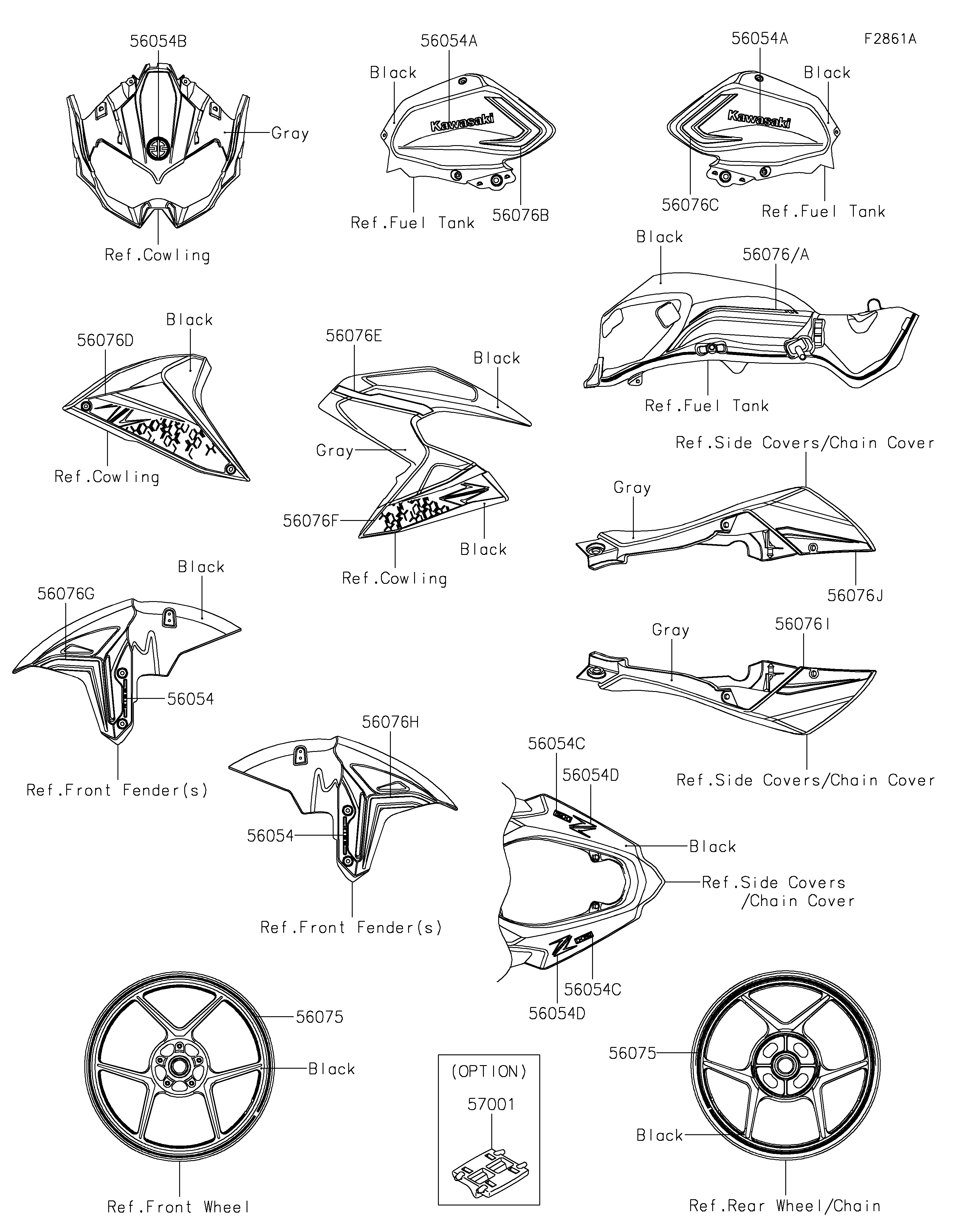

2020 Z H2 - Decals(M.S.Black)(KLF)(CA,US)
56054
56054
56054A
56054A
56054B
56054C
56054C
56054D
56054D
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,KIBS | 56054 | 56054-0721 | 2 | CA,US | |
| MARK,KAWASAKI | 56054A | 56054-1356 | 2 | CA,US | |
| MARK,UPP COWL.,RIVER | 56054B | 56054-1557 | 1 | CA,US | |
| MARK,H2,3D | 56054C | 56054-2191 | 2 | CA,US | |
| MARK,Z,3D | 56054D | 56054-2369 | 2 | CA,US | |
| PATTERN,WHEEL,GREEN,4X1353 | 56075 | 56075-1055 | 4 | CA,US | |
| PATTERN,FUEL TANK,LH | 56076 | 56076-1042 | 1 | CA,US | |
| PATTERN,FUEL TANK,RH | 56076A | 56076-1043 | 1 | CA,US | |
| PATTERN,TANK COVER,LH | 56076B | 56076-1044 | 1 | CA,US | |
| PATTERN,TANK COVER,RH | 56076C | 56076-1045 | 1 | CA,US | |
| PATTERN,SHROUD,LH | 56076D | 56076-1046 | 1 | CA,US | |
| PATTERN,SHROUD,RH,UPP | 56076E | 56076-1047 | 1 | CA,US | |
| PATTERN,SHROUD,RH,LWR | 56076F | 56076-1048 | 1 | CA,US | |
| PATTERN,FR FENDER,LH | 56076G | 56076-1049 | 1 | CA,US | |
| PATTERN,FR FENDER,RH | 56076H | 56076-1050 | 1 | CA,US | |
| PATTERN,TAIL COVER,LH | 56076I | 56076-1051 | 1 | CA,US | |
| PATTERN,TAIL COVER,RH | 56076J | 56076-1052 | 1 | CA,US | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CA,US A |
| MARK,FR FENDER,KIBS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,UPP COWL.,RIVER | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,H2,3D | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,Z,3D | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TANK COVER,LH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TANK COVER,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SHROUD,RH,UPP | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SHROUD,RH,LWR | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CA,US A |
| REMARKS | |
