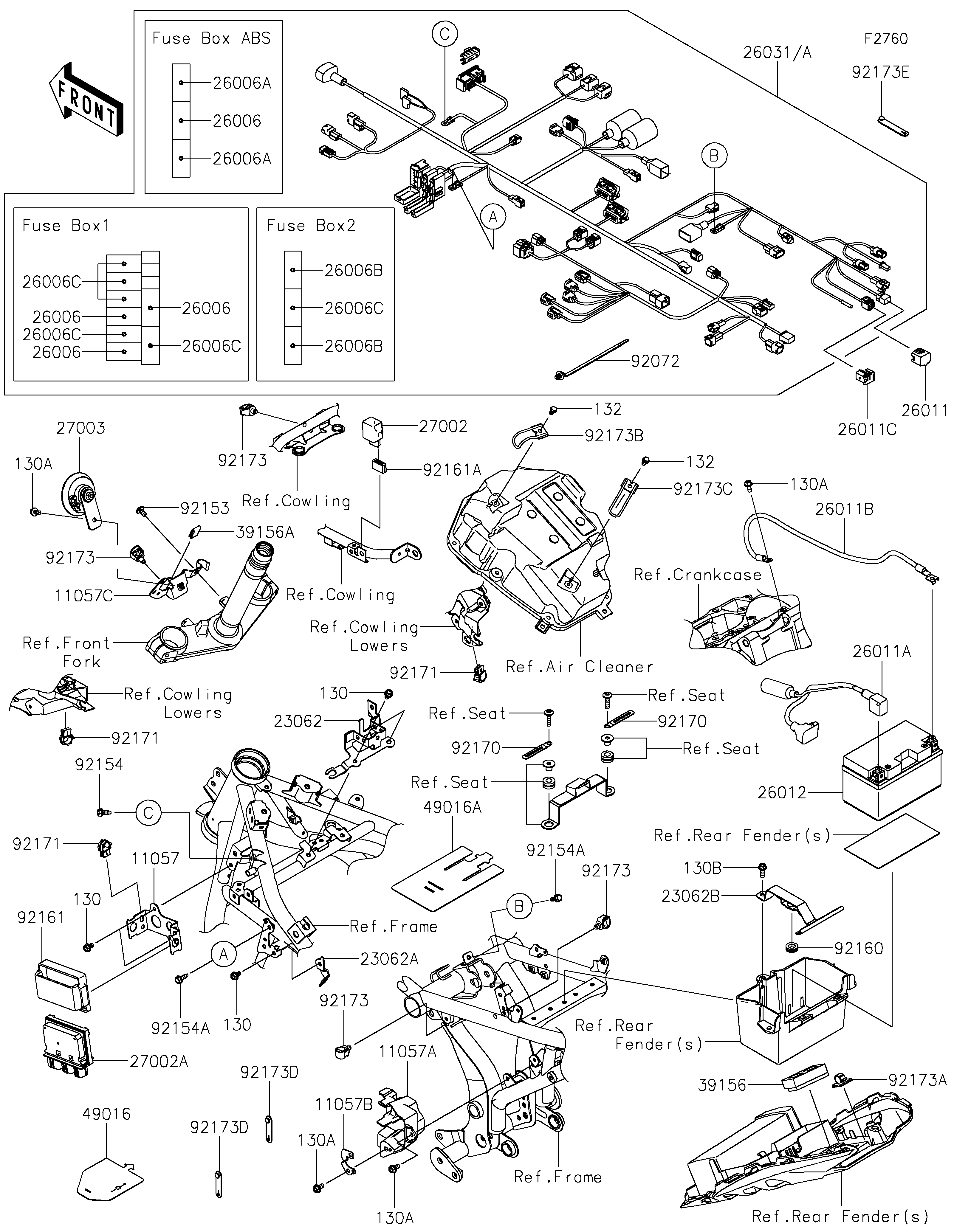

2020 NINJA® 650 ABS KRT EDITION - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
23062
23062
23062A
23062A
23062B
23062B
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
49016
49016
49016A
49016A
92072
92072
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92160
92160
92161
92161
92161A
92161A
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
132
132
132
132
92173D
92173D
92173D
92173D
92173E
92173E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY BOX 11057 11057-0122 1
BRACKET,MAGNETIC SW. 11057A 11057-0137 1
BRACKET,COUPLER 11057B 11057-0138 1
BRACKET,HORN 11057C 11057-0184 1
BRACKET,VEHICLE DOWN SENSOR 23062 23062-1258 1
BRACKET-COMP,FUSE BOX 23062A 23062-1259 1
BRACKET-COMP,BATTERY 23062B 23062-1269 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,5A,TAN 26006B 26006-1077 2
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 6
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0980 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0981 1
WIRE-LEAD,DIAG CONNECTOR 26011C 26011-1901 1
BATTERY,YTZ10,12V 8.6AH 26012 26012-0689 1
HARNESS,MAIN 26031 26031-2875 1 CN,US
HARNESS,MAIN 26031A 26031-2876 1 CA
RELAY-ASSY,SIGNAL LAMP 27002 27002-0006 1
RELAY-ASSY 27002A 27002-0042 1
HORN 27003 27003-0065 1
PAD,DIAGNOSTIC-CONNECTOR 39156 39156-2627 1
PAD,40X15X2 39156A 39156-2639 1
COVER-SEAL 49016 49016-0645 1
COVER-SEAL,ECU CONNECTOR 49016A 49016-0672 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,SOCKET,6X12 92153 92153-1948 2
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,FLANGED,6X18 92154A 92154-4008 2
DAMPER 92160 92160-1278 1
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER,15X25X8.5 92161A 92161-1443 1
CLAMP 92170 92170-1514 2
CLAMP,EDGE CLIP 92171 92171-1722 3
CLAMP,12MM DIA. 92173 92173-0736 4
CLAMP,DRAIN 92173A 92173-1055 1
CLAMP,A/C CASE,FR 92173B 92173-1586 1
CLAMP,A/C CASE,RR 92173C 92173-1587 1
BOLT-FLANGED,6X10 130 130BA0610 5
BOLT-FLANGED,6X12 130A 130BA0612 4
BOLT-FLANGED,6X18 130B 130BA0618 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
CLAMP 92173D 92173-2198 2
CLAMP 92173E 92173-2199 3
