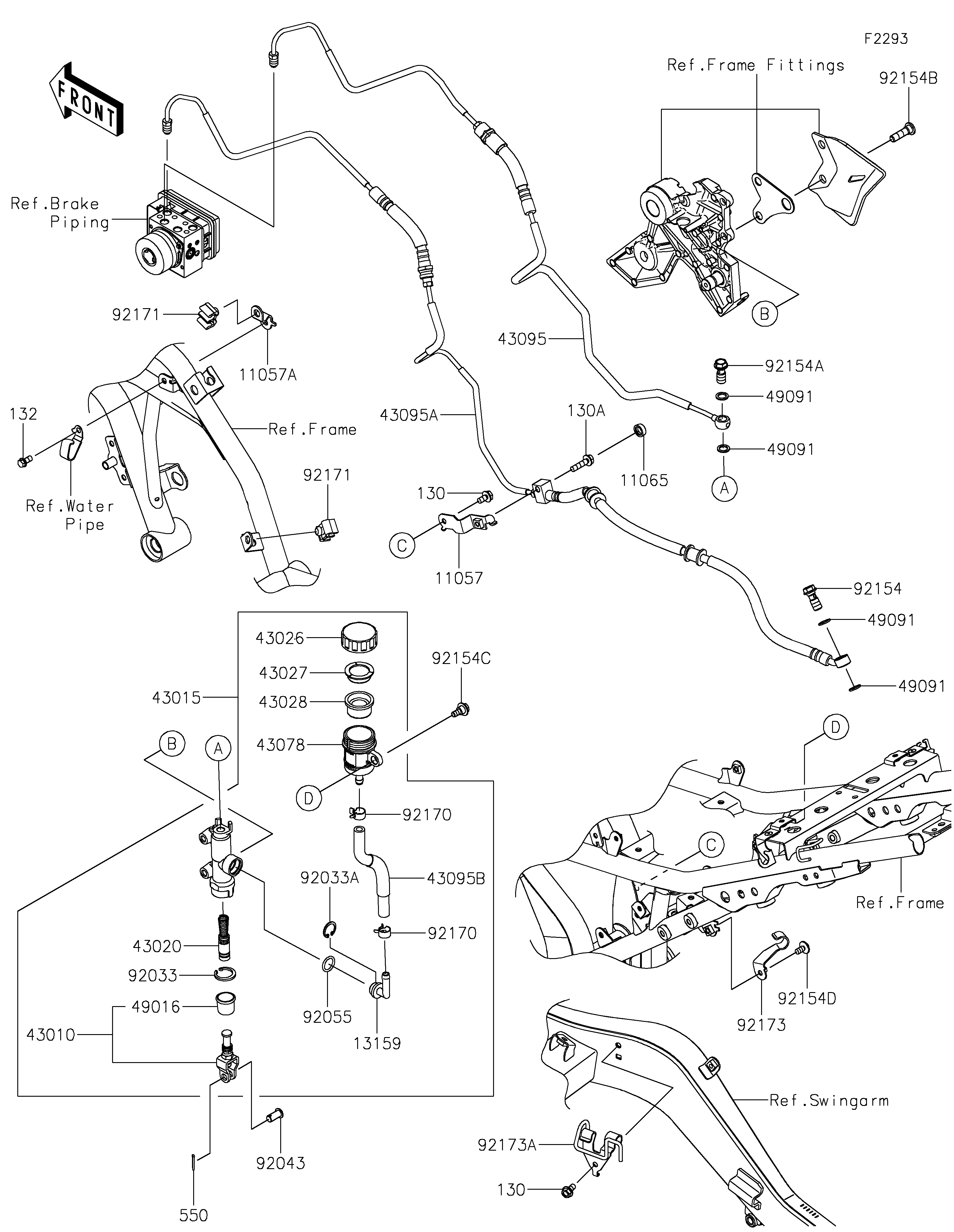

2020 NINJA® 650 ABS KRT EDITION - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11065
130
130
130A
13159
132
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
550
92033
92033A
92043
92055
92154
92154A
92154B
92154C
92154D
92170
92170
92171
92171
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS JOINT 11057 11057-0161 1
BRACKET,FR ABS PIPE 11057A 11057-0166 1
CAP,BOLT 11065 11065-0752 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X25 130A 130BA0625 1
CONNECTOR 13159 13159-1056 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
ROD-ASSY-BRAKE 43010 43010-0020 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0754 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0060 1
HOSE-BRAKE,RR M/CYL.-ABS UNIT 43095 43095-0961 1
HOSE-BRAKE,ABS UNIT-RR CAL. 43095A 43095-0962 1
HOSE-BRAKE,RR M/CYL. 43095B 43095-0969 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,OIL,L=23 92154 92154-0226 1
BOLT,FLANGED,10X23 92154A 92154-0732 1
BOLT,SOCKET,8X30 92154B 92154-0843 2
BOLT 92154C 92154-0929 1
BOLT,SOCKET,6X12 92154D 92154-0951 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92171 92171-0818 2
CLAMP,RR BRAKE HOSE 92173 92173-1604 1
CLAMP 92173A 92173-2291 1
