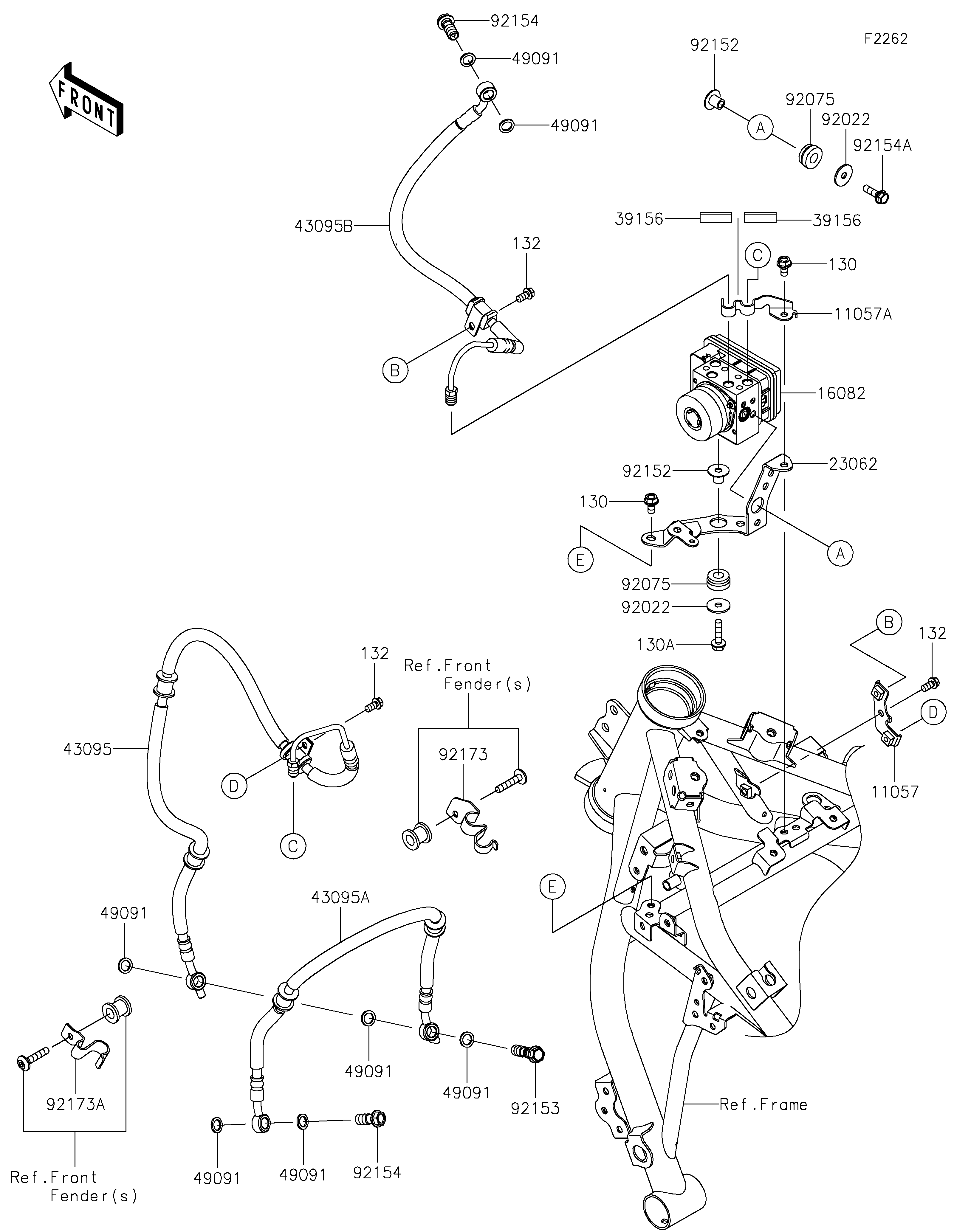

2020 NINJA® 650 ABS KRT EDITION - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
130
130
130A
132
132
132
16082
23062
39156
39156
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
92022
92022
92075
92075
92152
92152
92153
92154
92154
92154A
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE HOSE 11057 11057-0275 1
BRACKET,BRAKE PIPE 11057A 11057-0771 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X25 130A 130BB0625 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 3
PUMP-ASSY-OIL,ABS 16082 16082-0767 1
BRACKET-COMP,ABS UNIT 23062 23062-0874 1
PAD,10X70X3 39156 39156-2203 2
HOSE-BRAKE,ABS UNIT-FR CAL. 43095 43095-0959 1
HOSE-BRAKE,FR CAL-CAL 43095A 43095-0960 1
HOSE-BRAKE,M/CYL.-ABS UNIT 43095B 43095-0966 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
WASHER,6.5X22X1.6 92022 92022-237 2
DAMPER 92075 92075-277 2
COLLAR,6.5X20X12 92152 92152-2262 2
BOLT,OIL,L=37 92153 92153-0628 1
BOLT,OIL,L=23 92154 92154-0226 2
BOLT,FLANGED,6X20 92154A 92154-0776 1
CLAMP,FR FENDER,RH 92173 92173-1612 1
CLAMP,FR FENDER,LH 92173A 92173-2290 1
