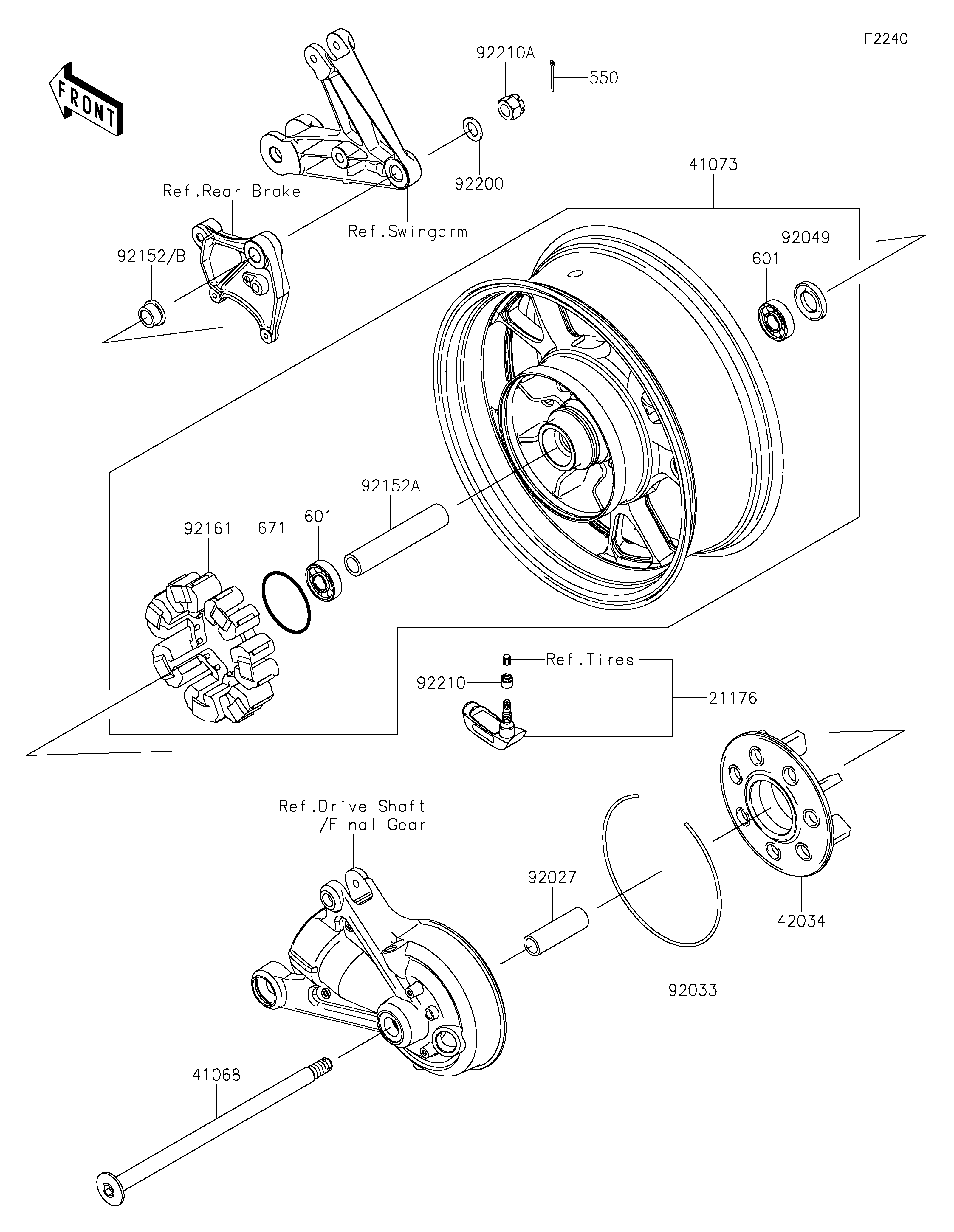

2020 CONCOURS®14 ABS - Rear Wheel/Chain
21176
41068
41073
42034
550
601
601
671
92027
92033
92049
92152
92152A
92152B
92161
92200
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SENSOR,TPMS 315MHZ | 21176 | 21176-0748 | 1 | ||
| AXLE,RR,20X390 | 41068 | 41068-0605 | 1 | ||
| WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0594-18F | 1 | ||
| COUPLING,RR HUB | 42034 | 42034-0754 | 1 | ||
| PIN-COTTER,4.0X40 | 550 | 550AA4040 | 1 | ||
| BEARING-BALL,#6304UUC3 | 601 | 601B6304UU | 2 | ||
| O RING,80MM | 671 | 671B2580 | 1 | ||
| COLLAR,20.2X28X89 | 92027 | 92027-1553 | 1 | ||
| RING-SNAP,220MM | 92033 | 92033-0012 | 1 | ||
| SEAL-OIL,27X52X5 | 92049 | 92049-0723 | 1 | ||
| COLLAR,RR AXLE,RH,L=17 | 92152 | 92152-0105 | 1 | ( - JKBZGNE1 LA013370) | |
| COLLAR,RR HUB,L=151 | 92152A | 92152-0494 | 1 | ||
| COLLAR,RR AXLE,RH,L=17 | 92152B | 92152-2727 | 1 | (JKBZGNE1 LA013371 - ) | |
| DAMPER,SHOCK,RR HUB | 92161 | 92161-0409 | 1 | ||
| WASHER,19X32X2.6 | 92200 | 92200-1489 | 1 | ||
| NUT | 92210 | 92210-0836 | 1 | ||
| NUT,CASTLE,18MM | 92210A | 92210-1134 | 1 |
