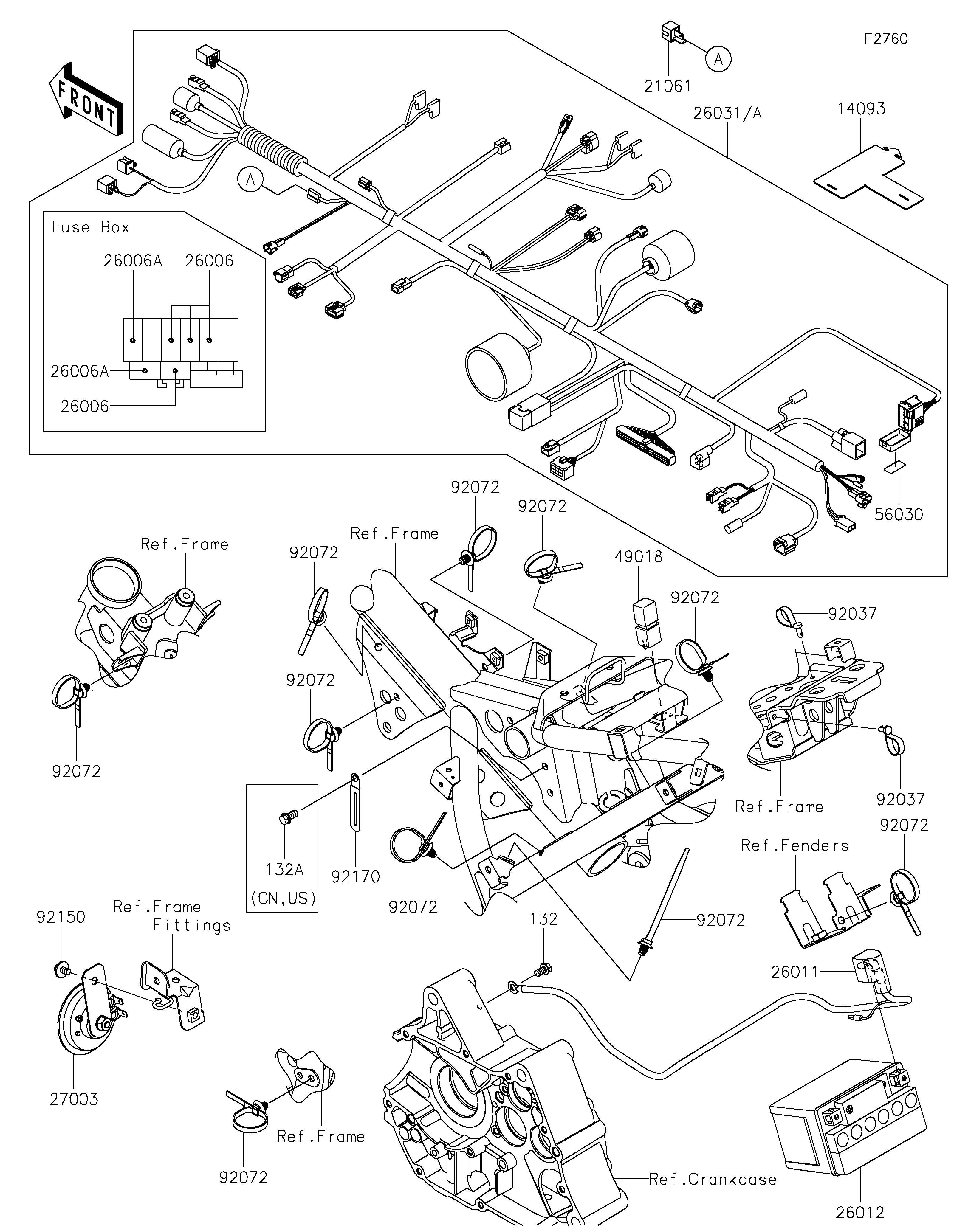

2020 Z125 PRO - Chassis Electrical Equipment
132
132A
14093
21061
26006
26006
26006A
26006A
26011
26012
26031
26031A
27003
49018
56030
92037
92037
92072
92072
92072
92072
92072
92072
92072
92072
92072
92072
92150
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132A | 132BA0612 | 1 | CN,US | |
| COVER,CONNECTOR | 14093 | 14093-0486 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| FUSE,MINI BLADE,10A | 26006 | 26006-0031 | 4 | ||
| FUSE,MINI BLADE,20A | 26006A | 26006-0032 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0920 | 1 | ||
| BATTERY,FTH4L-BS,12V 3AH | 26012 | 26012-0725 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-2732 | 1 | CN,US | |
| HARNESS,MAIN | 26031A | 26031-2733 | 1 | CA | |
| HORN | 27003 | 27003-0120 | 1 | ||
| DIODE | 49018 | 49018-0005 | 1 | ||
| LABEL,FUSE BOX | 56030 | 56030-0983 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 10 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
| CLAMP | 92170 | 92170-1514 | 1 |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| COVER,CONNECTOR | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RECTIFIER | |
| REF # | 21061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,10A | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,20A | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,FTH4L-BS,12V 3AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIODE | |
| REF # | 49018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,FUSE BOX | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,SPEED,L=58 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
