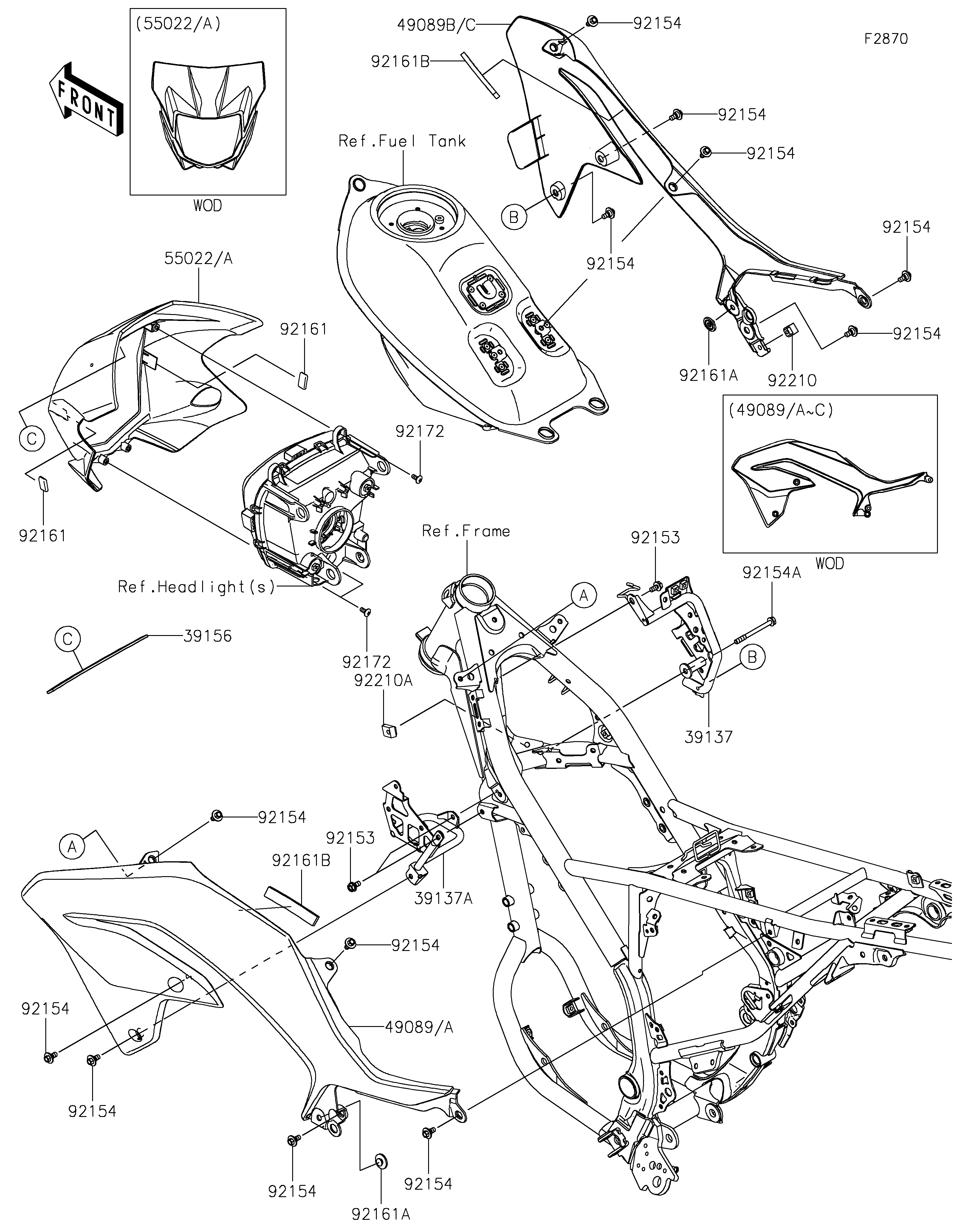

Parts Diagrams |
39137
39137A
39156
49089
49089A
49089B
49089C
55022
55022A
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92161
92161
92161A
92161A
92161B
92161B
92172
92172
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STAY-COMP,RH,P.SILVER | 39137 | 39137-0702-458 | 1 | ||
| STAY-COMP,LH,P.SILVER | 39137A | 39137-0704-458 | 1 | ||
| PAD | 39156 | 39156-2562 | 1 | ||
| SHROUD-ENGINE,LH,L.GREEN | 49089 | 49089-0957-290 | 1 | ||
| SHROUD-ENGINE,LH,EBONY | 49089A | 49089-0957-6C | 1 | CN | |
| SHROUD-ENGINE,RH,L.GREEN | 49089B | 49089-0958-290 | 1 | ||
| SHROUD-ENGINE,RH,EBONY | 49089C | 49089-0958-6C | 1 | CN | |
| COVER-HEAD LAMP,B.WHITE | 55022 | 55022-0324-266 | 1 | ||
| COVER-HEAD LAMP,EBONY | 55022A | 55022-0324-6C | 1 | CN | |
| BOLT,FLANGED,6X12 | 92153 | 92153-1283 | 3 | ||
| BOLT,FLANGED,6X9 | 92154 | 92154-0546 | 12 | ||
| BOLT-FLANGED,6X70 | 92154A | 92154-4093 | 1 | ||
| DAMPER,12X23 | 92161 | 92161-1367 | 2 | ||
| DAMPER,8X22X10 | 92161A | 92161-1685 | 2 | ||
| DAMPER,70X15X6 | 92161B | 92161-1838 | 2 | ||
| SCREW,5X12 | 92172 | 92172-1095 | 4 | ||
| NUT,6MM | 92210 | 92210-0218 | 1 | ||
| NUT | 92210A | 92210-1771 | 1 |
| STAY-COMP,RH,P.SILVER | |
| REF # | 39137 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY-COMP,LH,P.SILVER | |
| REF # | 39137A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,L.GREEN | |
| REF # | 49089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,EBONY | |
| REF # | 49089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SHROUD-ENGINE,RH,L.GREEN | |
| REF # | 49089B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,EBONY | |
| REF # | 49089C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-HEAD LAMP,B.WHITE | |
| REF # | 55022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-HEAD LAMP,EBONY | |
| REF # | 55022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X9 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X70 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,12X23 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X22X10 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,70X15X6 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
