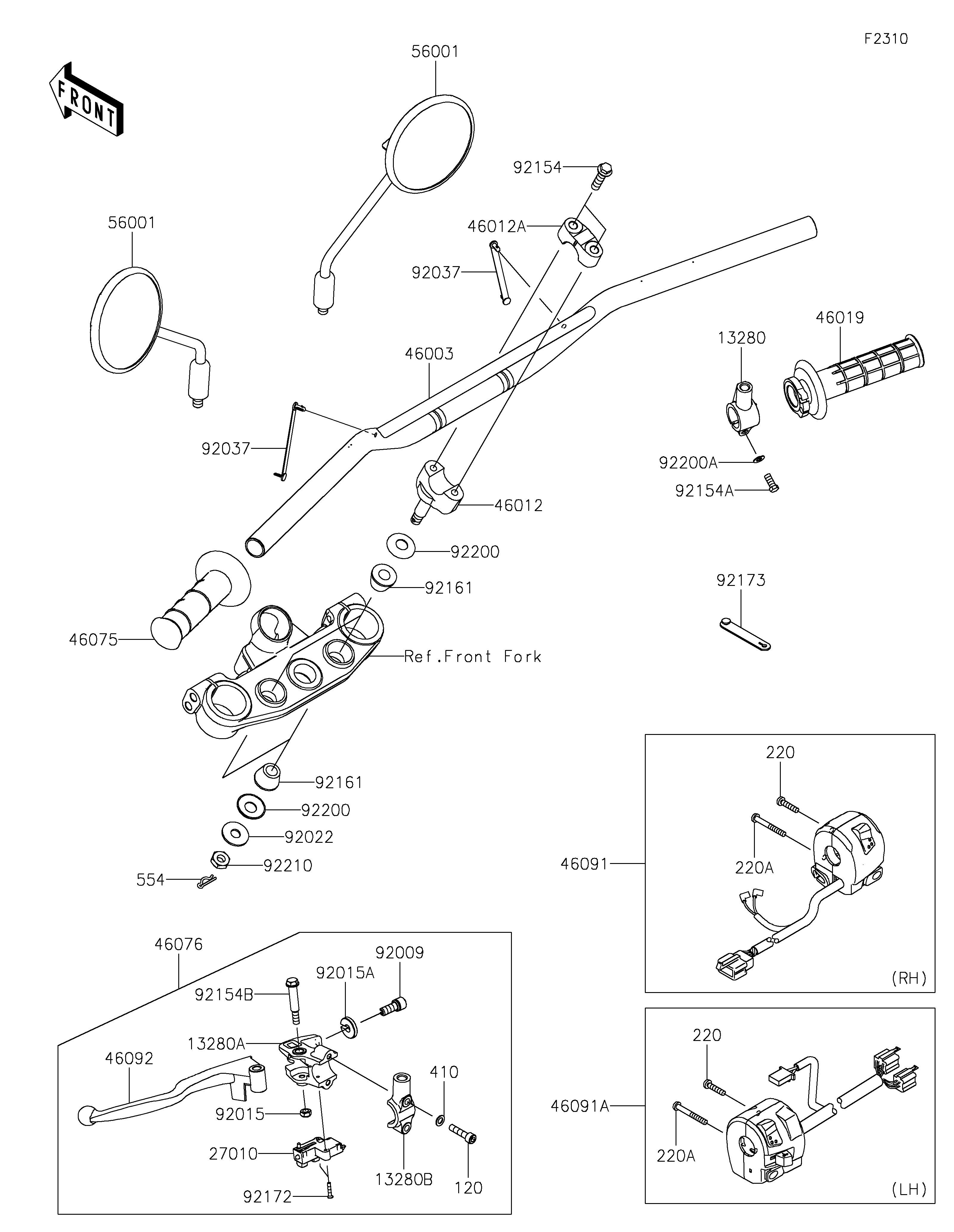

2020 KLX®230 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
13280
13280A
13280B
220
220
220A
220A
27010
410
46003
46012
46012A
46019
46075
46076
46091
46091A
46092
554
56001
56001
92009
92015
92015A
92022
92037
92037
92154
92154A
92154B
92161
92161
92172
92173
92200
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120CB0625 2
HOLDER,MIRROR 13280 13280-0791 1
HOLDER,LEVER 13280A 13280-0929 1
HOLDER,MIRROR 13280B 13280-0930 1
SCREW-PAN-CROS,5X22 220 220AB0522 2
SCREW-PAN-CROS,5X40 220A 220AB0540 2
SWITCH,CLUTCH 27010 27010-0729 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
HANDLE,P.SILVER 46003 46003-0723-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012 46012-0075-458 2
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0380-458 2
GRIP-ASSY,THROTTLE 46019 46019-0088 1
GRIP,LH 46075 46075-0644 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0160 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0452 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0455 1
LEVER-GRIP,CLUTCH 46092 46092-0576 1
PIN-SNAP 554 554DA0800 2
MIRROR-ASSY 56001 56001-0137 2
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
WASHER,10.2X28X2 92022 92022-1088 2
CLAMP,SPEED,L=80.5 92037 92037-1903 2
BOLT,FLANGED,8X30 92154 92154-1246 4
BOLT,UPSET,6X22 92154A 92154-1422 1
BOLT,FLANGED,6X44 92154B 92154-2331 1
DAMPER,12X26X19 92161 92161-2116 4
SCREW,3X16 92172 92172-0183 2
CLAMP 92173 92173-1526 1
WASHER,12.5X27.6X1.2 92200 92200-0872 4
WASHER,6.5X11.5X0.8 92200A 92200-0947 1
NUT,LOCK,10MM 92210 92210-1672 2
