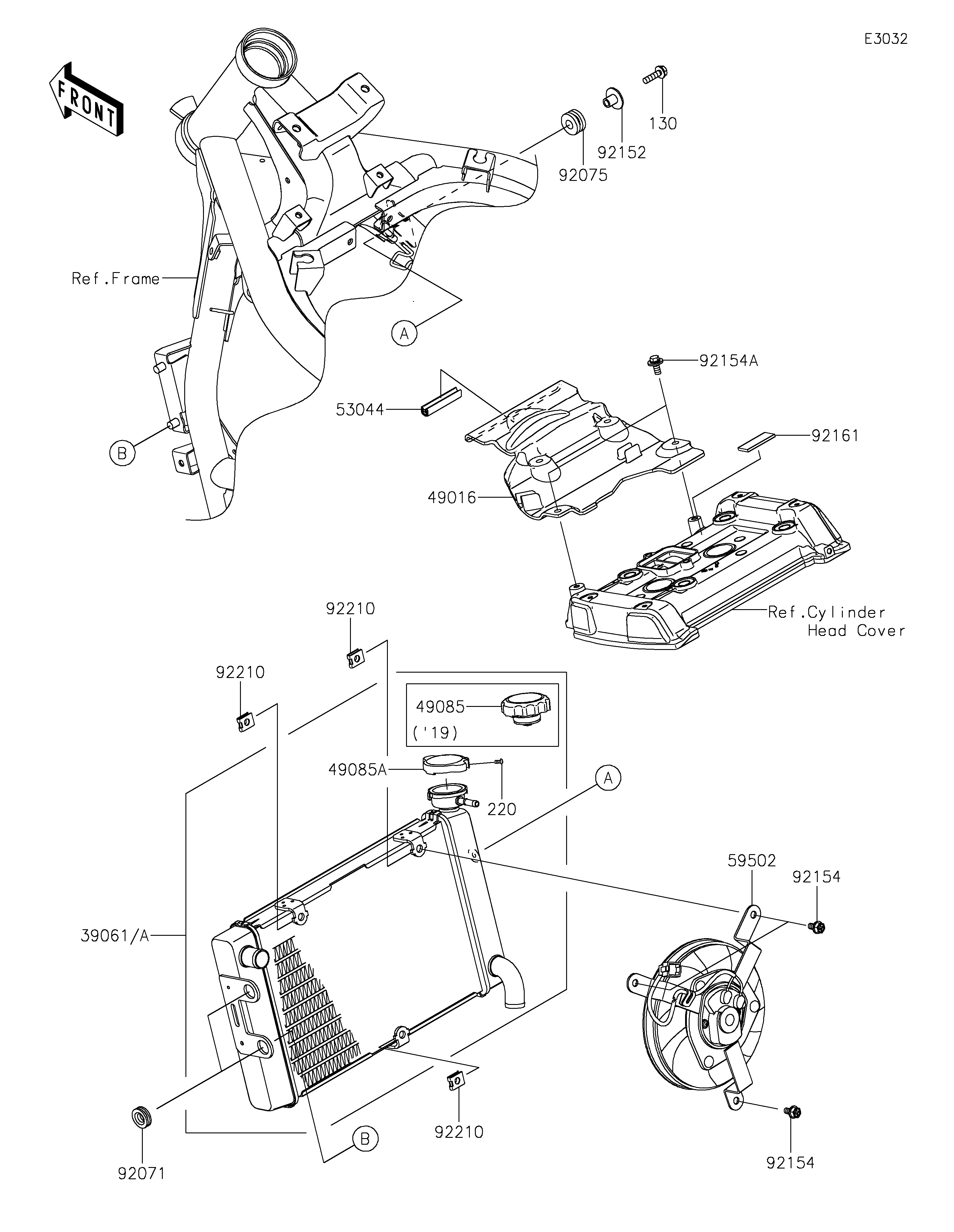

Parts Diagrams |
130
220
39061A
49016
49085A
53044
59502
92071
92075
92152
92154
92154
92154A
92161
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X22 | 130 | 130BA0622 | 1 | ||
| SCREW-PAN-CROS,3X6 | 220 | 220AB0306 | 1 | ||
| RADIATOR-ASSY | 39061A | 39061-0796 | 1 | ||
| COVER-SEAL | 49016 | 49016-0622 | 1 | ||
| CAP-ASSY-PRESSURE | 49085A | 49085-0016 | 1 | ||
| TRIM,L=50 | 53044 | 53044-1185 | 1 | ||
| FAN-ASSY | 59502 | 59502-0613 | 1 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 1 | ||
| COLLAR,6.5X10X13.1 | 92152 | 92152-0910 | 1 | ||
| BOLT | 92154 | 92154-1429 | 3 | ||
| BOLT,FLANGED-WP,6X14 | 92154A | 92154-1576 | 2 | ||
| DAMPER | 92161 | 92161-0301 | 1 | ||
| NUT | 92210 | 92210-1323 | 3 |
