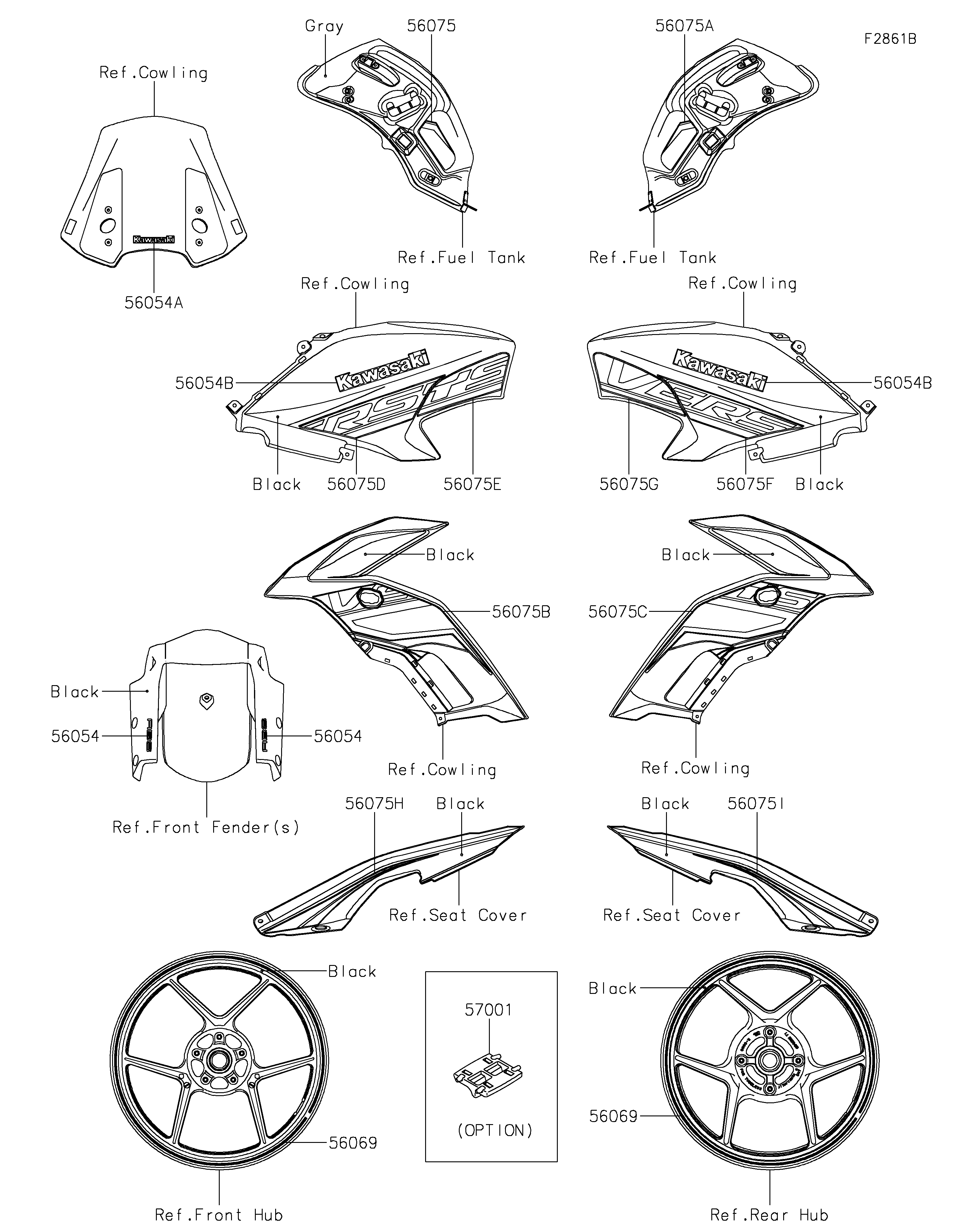

2019 VERSYS® 650 ABS - Decals(Gray)(FKFA)
56054
56054
56054A
56054B
56054B
56069
56069
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-1064 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2177 | 1 | ||
| MARK,TANK COVER,KAWASAKI | 56054B | 56054-2525 | 2 | ||
| PATTERN,WHEEL,GREEN,4X1353 | 56069 | 56069-7822 | 4 | ||
| PATTERN,FUEL TANK,LH | 56075 | 56075-7559 | 1 | ||
| PATTERN,FUEL TANK,RH | 56075A | 56075-7560 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56075B | 56075-7561 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56075C | 56075-7562 | 1 | ||
| PATTERN,TANK COVER,LH,FR | 56075D | 56075-7563 | 1 | ||
| PATTERN,TANK COVER,LH,RR | 56075E | 56075-7564 | 1 | ||
| PATTERN,TANK COVER,RH,FR | 56075F | 56075-7565 | 1 | ||
| PATTERN,TANK COVER,RH,RR | 56075G | 56075-7566 | 1 | ||
| PATTERN,TAIL COVER,LH | 56075H | 56075-7567 | 1 | ||
| PATTERN,TAIL COVER,RH | 56075I | 56075-7568 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FR FENDER,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TANK COVER,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,FR | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,RR | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,FR | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,RR | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56075H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56075I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
