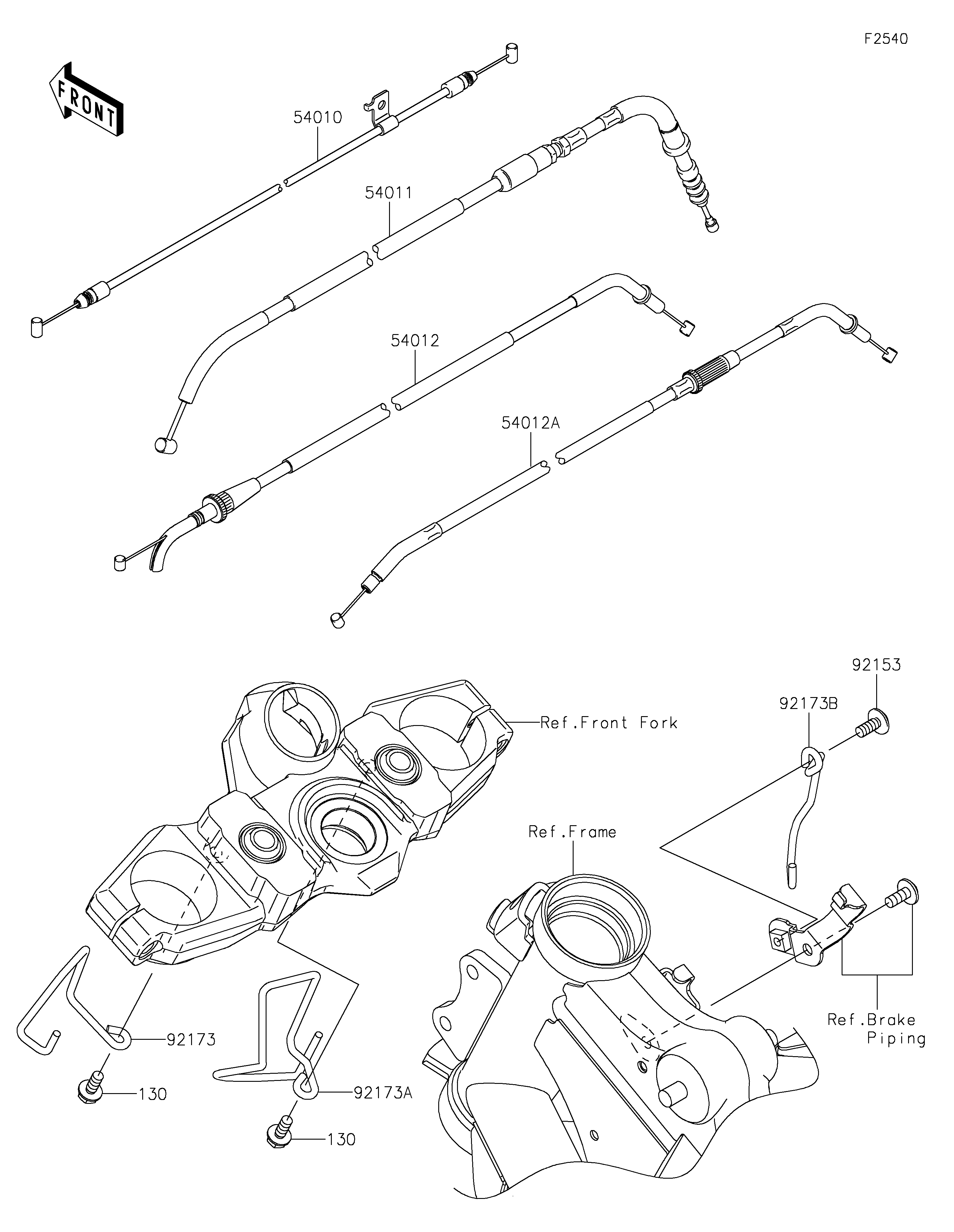

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 | ||
| CABLE,SEAT LOCK | 54010 | 54010-0602 | 1 | ||
| CABLE-CLUTCH | 54011 | 54011-0603 | 1 | ||
| CABLE-THROTTLE,OPENING | 54012 | 54012-0300 | 1 | ||
| CABLE-THROTTLE,CLOSING | 54012A | 54012-0301 | 1 | ||
| BOLT,SOCKET,6X14 | 92153 | 92153-1446 | 1 | ||
| CLAMP,UPP BRACKET,LH | 92173 | 92173-1292 | 1 | ||
| CLAMP,UPP BRACKET,RH | 92173A | 92173-1293 | 1 | ||
| CLAMP,HEAD PIPE | 92173B | 92173-1352 | 1 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CABLE,SEAT LOCK | |
| REF # | 54010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-CLUTCH | |
| REF # | 54011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE,OPENING | |
| REF # | 54012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE,CLOSING | |
| REF # | 54012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,UPP BRACKET,LH | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,UPP BRACKET,RH | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HEAD PIPE | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
