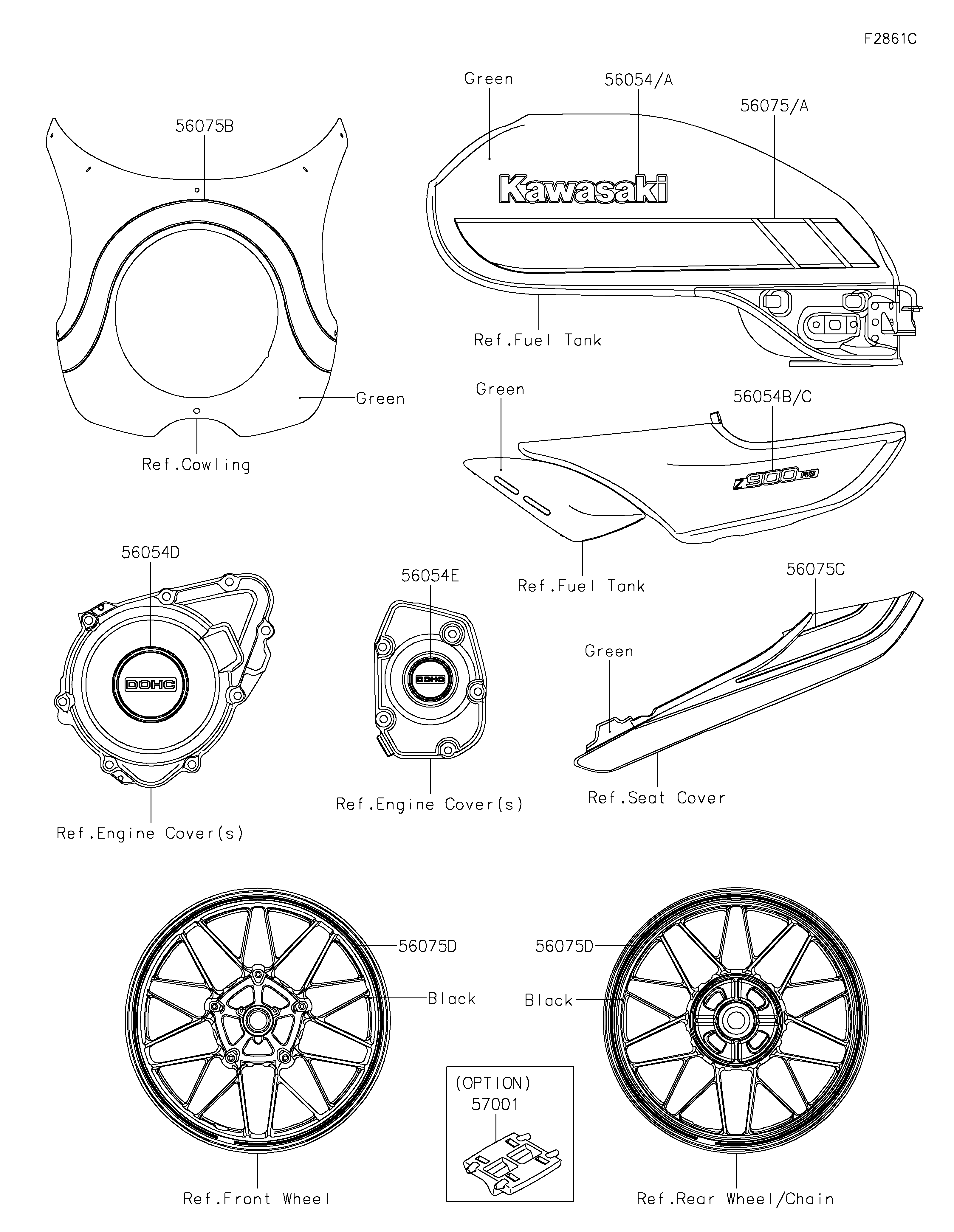

2019 Z900RS CAFE - Decals(Green)(EKF)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH,KAWASAKI,3D | 56054 | 56054-2282 | 1 | CA,US | |
| MARK,FUEL TANK,RH,KAWASAKI,3D | 56054A | 56054-2283 | 1 | CA,US | |
| MARK,SIDE COVER,LH,Z900RS,3D | 56054B | 56054-2284 | 1 | CA,US | |
| MARK,SIDE COVER,RH,Z900RS,3D | 56054C | 56054-2285 | 1 | CA,US | |
| MARK,DOHC,63MM,3D | 56054D | 56054-2418 | 1 | CA,US | |
| MARK,DOHC,39MM,3D | 56054E | 56054-2419 | 1 | CA,US | |
| PATTERN,FUEL TANK,LH | 56075 | 56075-4313 | 1 | CA,US | |
| PATTERN,FUEL TANK,RH | 56075A | 56075-4314 | 1 | CA,US | |
| PATTERN,UPP COWL. | 56075B | 56075-4315 | 1 | CA,US | |
| PATTERN,TAIL COVER | 56075C | 56075-4316 | 1 | CA,US | |
| PATTERN,WHEEL,BLK,4X1350 | 56075D | 56075-4317 | 4 | CA,US | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CA,US |
| MARK,FUEL TANK,LH,KAWASAKI,3D | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI,3D | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,SIDE COVER,LH,Z900RS,3D | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,SIDE COVER,RH,Z900RS,3D | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,DOHC,63MM,3D | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,DOHC,39MM,3D | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,UPP COWL. | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,TAIL COVER | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,WHEEL,BLK,4X1350 | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA,US |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CA,US |
| REMARKS | |
