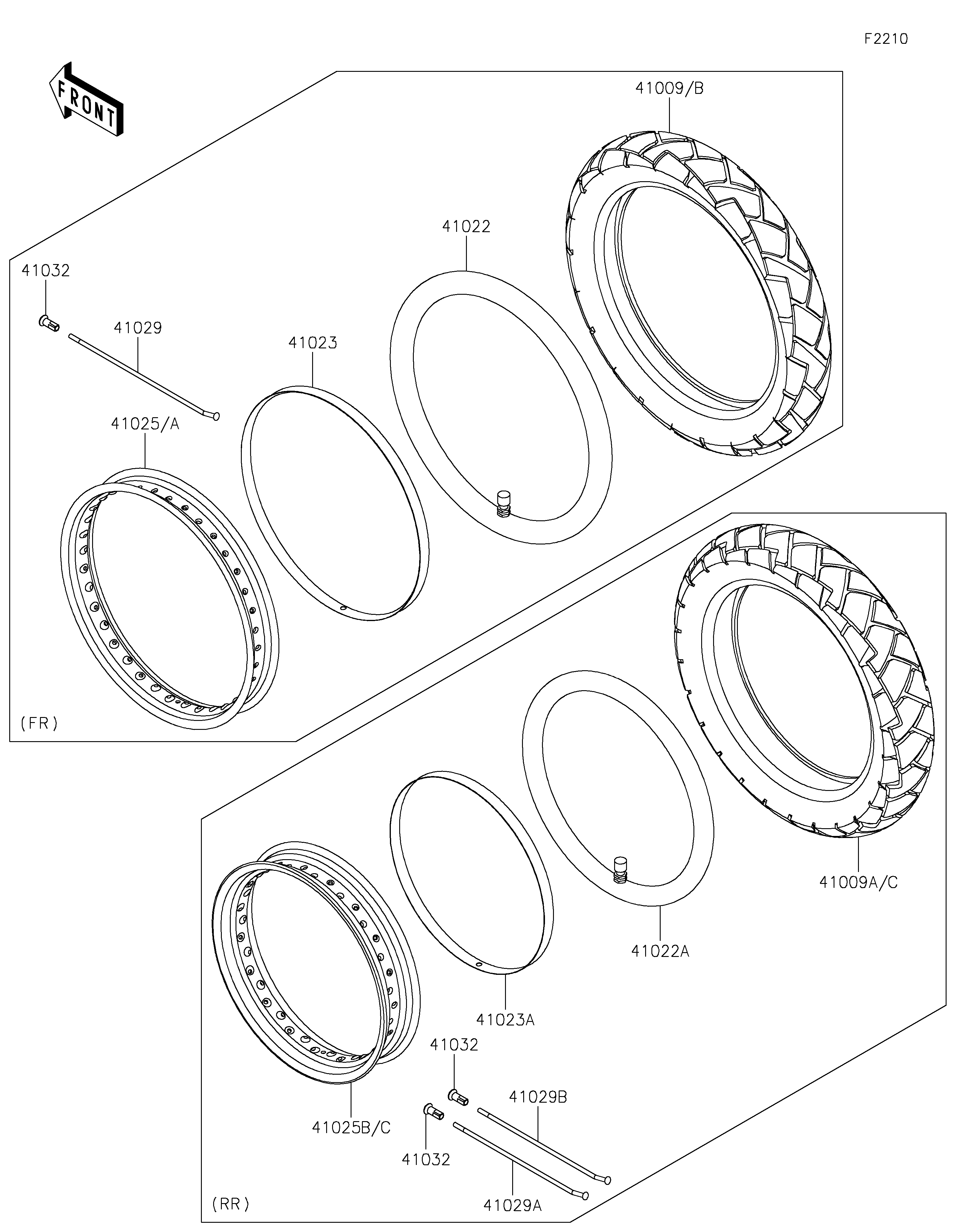

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,100/90-19 57S,GP-210F | 41009B | 41009-0794 | 1 | ||
| TIRE,RR,130/80-17 65S,GP-210R | 41009C | 41009-0795 | 1 | ||
| TUBE-TIRE,FR,100/90-19(IRC) | 41022 | 41022-0103 | 1 | ||
| TUBE-TIRE,RR,130/80-17(IRC) | 41022A | 41022-0104 | 1 | ||
| BAND-RIM,FR,25-19J | 41023 | 41023-0038 | 1 | ||
| BAND-RIM,RR,25-17J | 41023A | 41023-0039 | 1 | ||
| RIM,FR,2.15X19,BLACK | 41025A | 41025-0373-WC | 1 | _________________________________________CA,US | |
| RIM,RR,3.00X17,BLACK | 41025C | 41025-0374-WC | 1 | _________________________________________CA,US | |
| SPOKE-INNER,196X164.5D | 41029 | 41029-0087 | 36 | ||
| SPOKE-INNER,175X163.5D | 41029A | 41029-0088 | 18 | ||
| SPOKE-INNER,172X159D | 41029B | 41029-0089 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-0005 | 72 |
