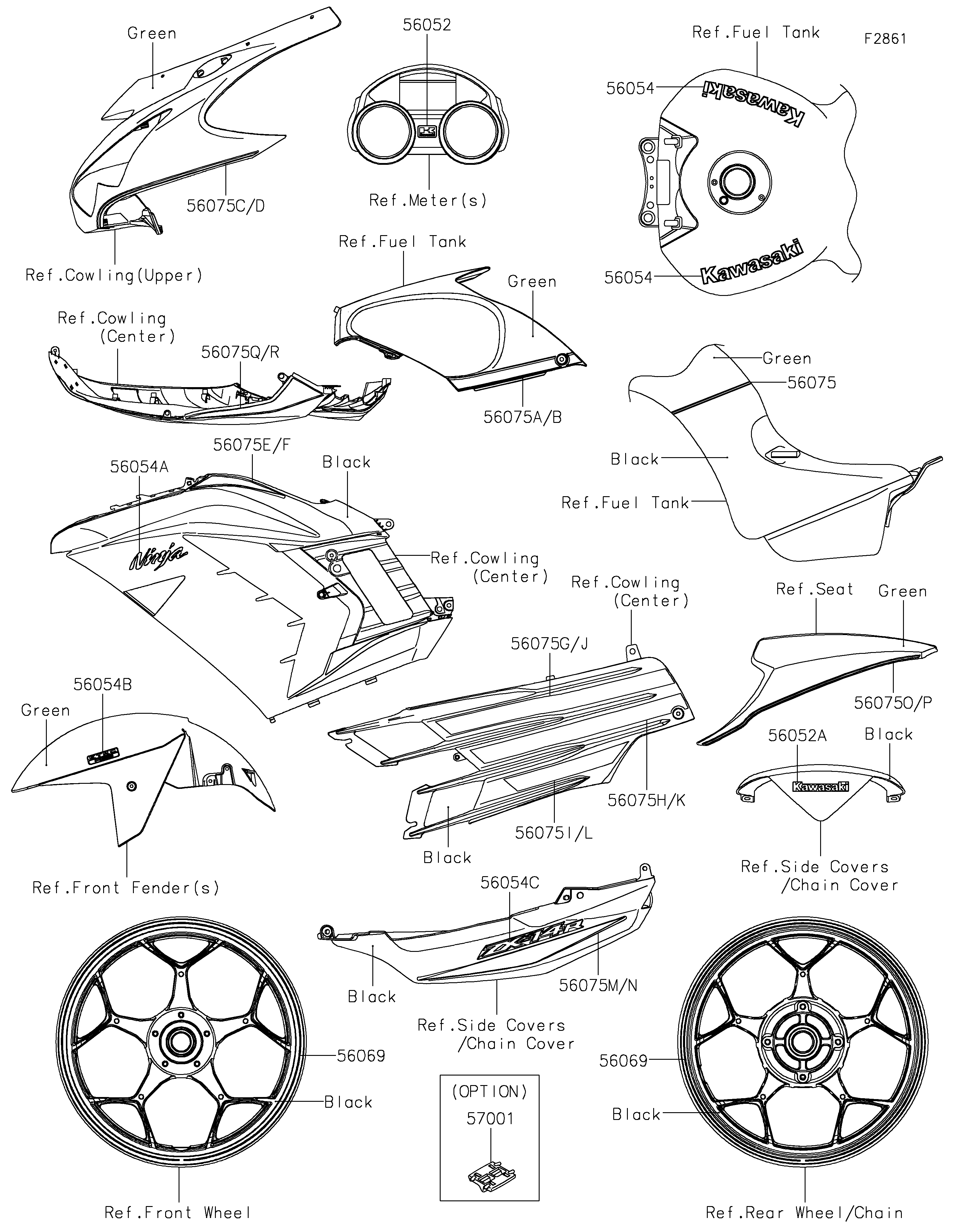

2016 Ninja ZX-14R ABS SE - Decals(Green)(JGF)(CN)
56052
56052
56052A
56052A
56054
56054
56054
56054
56054A
56054A
56054B
56054B
56054C
56054C
56069
56069
56069
56069
56075
56075
56075A
56075A
56075B
56075B
56075C
56075C
56075D
56075D
56075E
56075E
56075F
56075F
56075G
56075G
56075H
56075H
56075I
56075I
56075J
56075J
56075K
56075K
56075L
56075L
56075M
56075M
56075N
56075N
56075O
56075O
56075P
56075P
56075Q
56075Q
56075R
56075R
57001
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | CN | |
| MARK,TAIL COVER,KAWASAKI | 56052A | 56052-1597 | 1 | CN | |
| MARK,FUEL TANK,KAWASAKI | 56054 | 56054-0948 | 2 | CN | |
| MARK,SIDE COWLING,NINJA | 56054A | 56054-0949 | 2 | CN | |
| MARK,FR FENDER,KTRC ABS | 56054B | 56054-0953 | 2 | CN | |
| MARK,TAIL COVER,ZX-14R | 56054C | 56054-1974 | 2 | CN | |
| PATTERN,WHEEL,GRN,4X1353 | 56069 | 56069-2527 | 4 | CN | |
| PATTERN,FUEL TANK,CNT | 56075 | 56075-1436 | 1 | CN | |
| PATTERN,TANK COVER,LH | 56075A | 56075-1437 | 1 | CN | |
| PATTERN,TANK COVER,RH | 56075B | 56075-1438 | 1 | CN | |
| PATTERN,UPP COWL.,LH | 56075C | 56075-1439 | 1 | CN | |
| PATTERN,UPP COWL.,RH | 56075D | 56075-1440 | 1 | CN | |
| PATTERN,SIDE COWL.,LH,LWR | 56075E | 56075-1442 | 1 | CN | |
| PATTERN,SIDE COWL.,RH,LWR | 56075F | 56075-1444 | 1 | CN | |
| PATTERN,SIDE COVER,LH,UPP | 56075G | 56075-1445 | 1 | CN | |
| PATTERN,SIDE COVER,LH,CNT | 56075H | 56075-1446 | 1 | CN | |
| PATTERN,SIDE COVER,LH,LWR | 56075I | 56075-1447 | 1 | CN | |
| PATTERN,SIDE COVER,RH,UPP | 56075J | 56075-1448 | 1 | CN | |
| PATTERN,SIDE COVER,RH,CNT | 56075K | 56075-1449 | 1 | CN | |
| PATTERN,SIDE COVER,RH,LWR | 56075L | 56075-1450 | 1 | CN | |
| PATTERN,TAIL COVER,LH | 56075M | 56075-1451 | 1 | CN | |
| PATTERN,TAIL COVER,RH | 56075N | 56075-1452 | 1 | CN | |
| PATTERN,SEAT COVER,LH | 56075O | 56075-1453 | 1 | CN | |
| PATTERN,SEAT COVER,RH | 56075P | 56075-1454 | 1 | CN | |
| PATTERN,SIDE COWL.,LH,UPP | 56075Q | 56075-1833 | 1 | CN | |
| PATTERN,SIDE COWL.,RH,UPP | 56075R | 56075-1834 | 1 | CN | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CN A |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,TAIL COVER,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COWLING,NINJA | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FR FENDER,KTRC ABS | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,TAIL COVER,ZX-14R | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,WHEEL,GRN,4X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,CNT | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TANK COVER,LH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TANK COVER,RH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,LH,UPP | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,LH,CNT | |
| REF # | 56075H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,LH,LWR | |
| REF # | 56075I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RH,UPP | |
| REF # | 56075J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RH,CNT | |
| REF # | 56075K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RH,LWR | |
| REF # | 56075L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56075M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56075N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56075O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56075P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56075Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56075R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CN A |
| REMARKS | |
