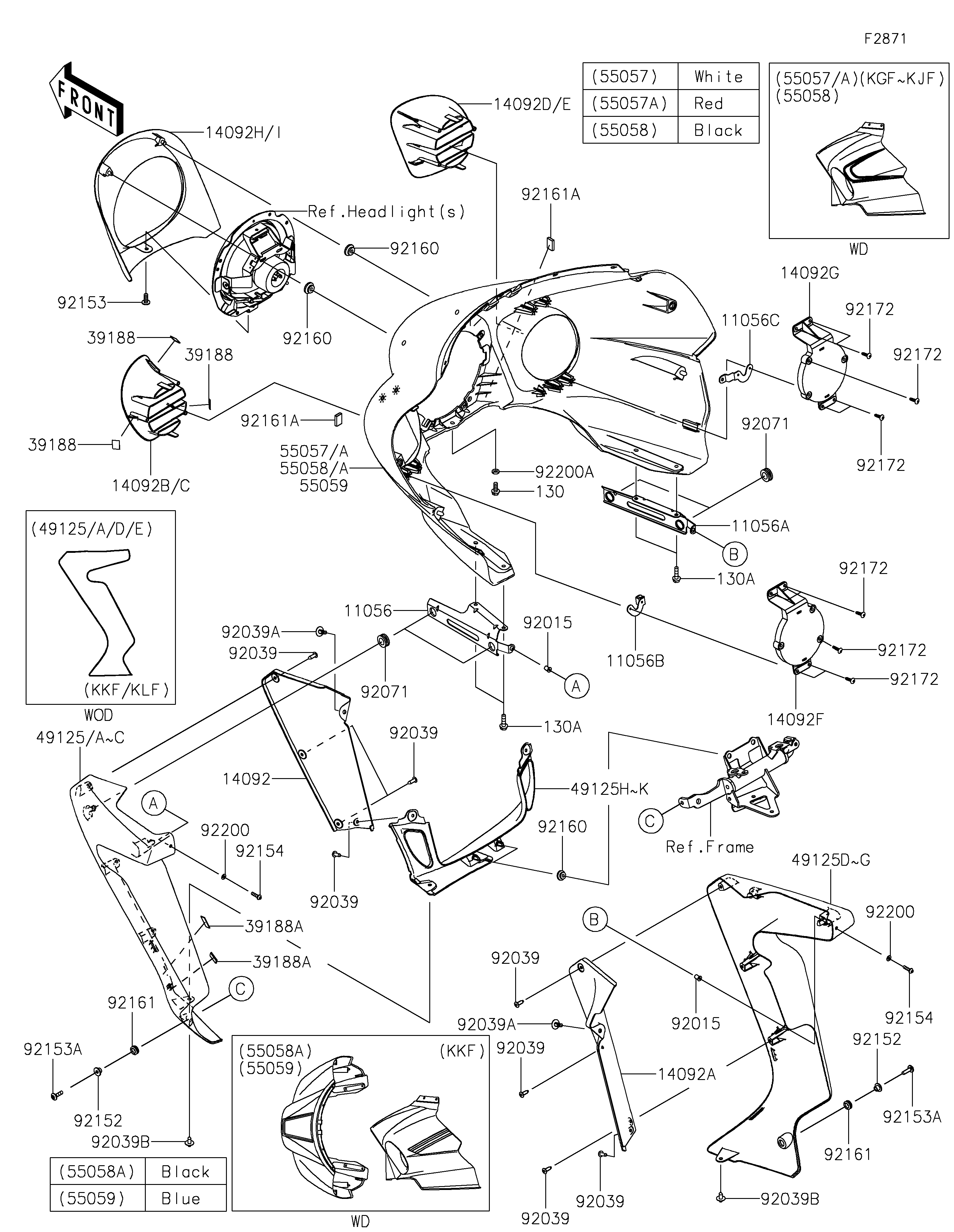

2016 VULCAN® 1700 VAQUERO® ABS - Cowling(Outer)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14092
14092
14092A
14092A
14092C
14092C
14092E
14092E
14092F
14092F
14092G
14092G
14092I
14092I
39188
39188
39188
39188
39188
39188
39188A
39188A
39188A
39188A
49125B
49125B
49125F
49125F
49125J
49125J
55057
55057
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92071
92071
92071
92071
92152
92152
92152
92152
92153
92153
130
130
130A
130A
130A
130A
92153A
92153A
92153A
92153A
92154
92154
92154
92154
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,LH 11056 11056-0344 1
BRACKET,SHROUD,RH 11056A 11056-0345 1
BRACKET,SUB LAMP,LH,LWR 11056B 11056-1145 1
BRACKET,SUB LAMP,RH,LWR 11056C 11056-1146 1
COVER,SHROUD,INNNER,LH 14092 14092-0204 1
COVER,SHROUD,INNNER,RH 14092A 14092-0205 1
COVER,SUB LAMP,LH,EBONY 14092C 14092-0209-H8 1
COVER,SUB LAMP,RH,EBONY 14092E 14092-0210-H8 1
COVER,SUB LAMP,INNNER,LH 14092F 14092-0211 1
COVER,SUB LAMP,INNNER,RH 14092G 14092-0212 1
COVER,HEAD LAMP,EBONY 14092I 14092-0770-H8 1
TAPE 39188 39188-0552 6
TAPE 39188A 39188-0553 4
SHROUD,OUTER,LH,P.C.WHITE 49125B 49125-0063-667 1
SHROUD,OUTER,RH,P.C.WHITE 49125F 49125-0064-667 1
SHROUD,LWR,CNT,P.C.WHITE 49125J 49125-0065-667 1
COWLING,UPP,OUTER,P.C.WHITE 55057 55057-5101-667 1
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0068 8
RIVET 92039A 92039-0086 2
RIVET 92039B 92039-1289 2
GROMMET 92071 92071-1131 4
COLLAR 92152 92152-0295 2
BOLT,SOCKET,6X16 92153 92153-0817 1
BOLT-FLANGED,6X16 130 130AA0616 1
BOLT-FLANGED,6X25 130A 130BB0625 4
BOLT,SOCKET,6X22 92153A 92153-1356 2
BOLT,SOCKET,5X20 92154 92154-0210 2
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0266 2
DAMPER 92161A 92161-0717 2
SCREW,TAPPING,5X20 92172 92172-0382 14
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
WASHER,6.5X12X2 92200A 92200-0511 1
