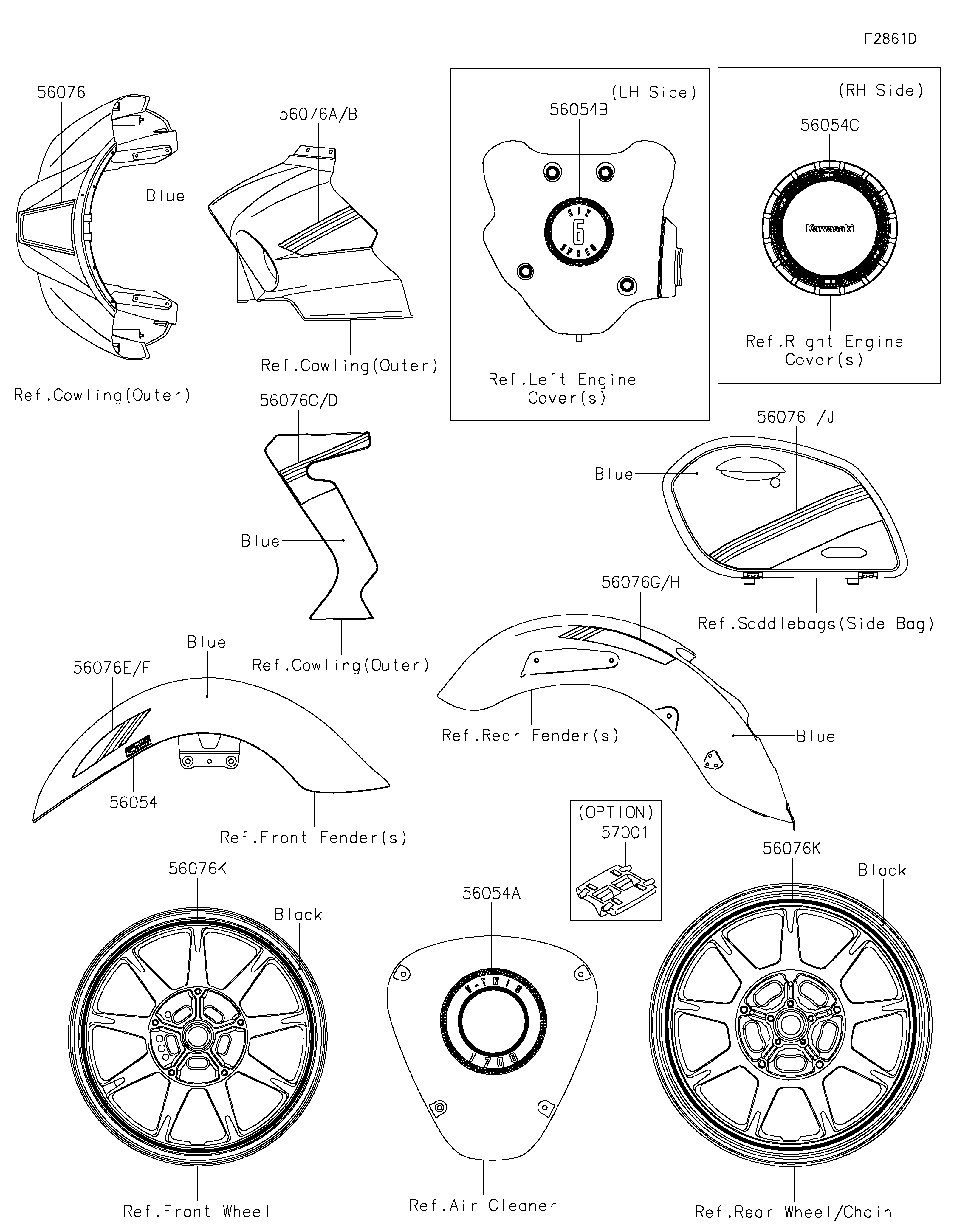

2020 VULCAN® 1700 VAQUERO® ABS - Decals(Blue)(KLF)
56054
56054A
56054B
56054C
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076K
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-0456 | 2 | ||
| MARK,A/C,V-TWIN 1700 | 56054A | 56054-1147 | 2 | ||
| MARK,GEN. COVER,6 SPEED | 56054B | 56054-1148 | 1 | ||
| MARK,E/G COVER,KAWASAKI | 56054C | 56054-1149 | 1 | ||
| PATTERN,UPP COWL.,CNT | 56076 | 56076-0733 | 1 | ||
| PATTERN,UPP COWL.,LH | 56076A | 56076-0734 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076B | 56076-0735 | 1 | ||
| PATTERN,SHROUD,LH | 56076C | 56076-0736 | 1 | ||
| PATTERN,SHROUD,RH | 56076D | 56076-0737 | 1 | ||
| PATTERN,FR FENDER,LH | 56076E | 56076-0738 | 1 | ||
| PATTERN,FR FENDER,RH | 56076F | 56076-0739 | 1 | ||
| PATTERN,RR FENDER,LH | 56076G | 56076-0740 | 1 | ||
| PATTERN,RR FENDER,RH | 56076H | 56076-0741 | 1 | ||
| PATTERN,SIDE BAG,LH | 56076I | 56076-0742 | 1 | ||
| PATTERN,SIDE BAG,RH | 56076J | 56076-0743 | 1 | ||
| PATTERN,WHEEL,BLUE,6X1310 | 56076K | 56076-0744 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FR FENDER,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,A/C,V-TWIN 1700 | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,GEN. COVER,6 SPEED | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,E/G COVER,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,CNT | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE BAG,LH | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE BAG,RH | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,BLUE,6X1310 | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
