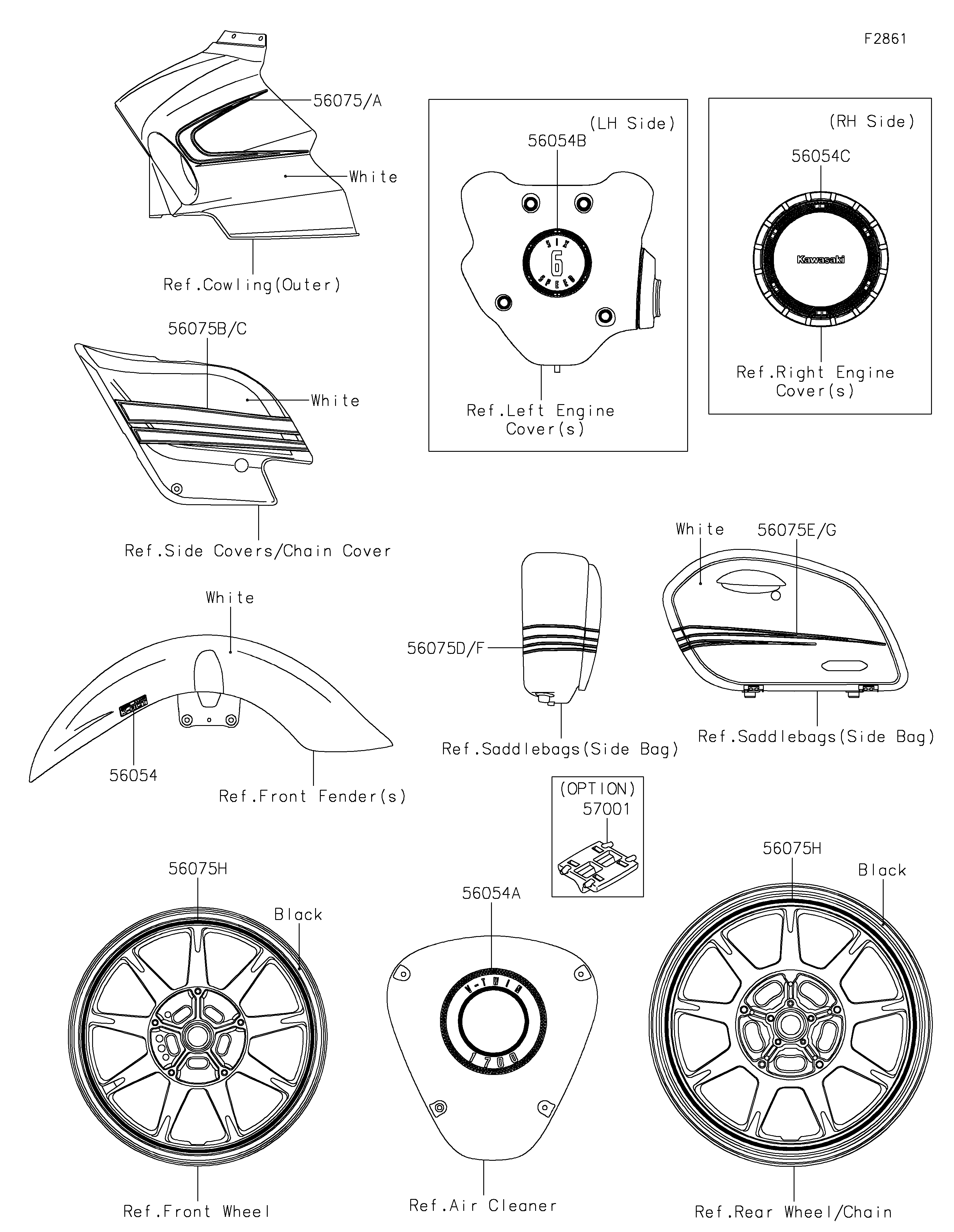

2016 VULCAN® 1700 VAQUERO® ABS - Decals(White)(KGF)
56054
56054A
56054B
56054C
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075H
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-0455 | 2 | ||
| MARK,A/C,V-TWIN 1700 | 56054A | 56054-1147 | 2 | ||
| MARK,GEN. COVER,6 SPEED | 56054B | 56054-1148 | 1 | ||
| MARK,E/G COVER,KAWASAKI | 56054C | 56054-1149 | 1 | ||
| PATTERN,UPP COWL.,LH | 56075 | 56075-1473 | 1 | ||
| PATTERN,UPP COWL.,RH | 56075A | 56075-1474 | 1 | ||
| PATTERN,SIDE COVER,LH | 56075B | 56075-1475 | 1 | ||
| PATTERN,SIDE COVER,RH | 56075C | 56075-1476 | 1 | ||
| PATTERN,SIDE BAG,LH,FR | 56075D | 56075-1477 | 1 | ||
| PATTERN,SIDE BAG,LH,RR | 56075E | 56075-1478 | 1 | ||
| PATTERN,SIDE BAG,RH,FR | 56075F | 56075-1479 | 1 | ||
| PATTERN,SIDE BAG,RH,RR | 56075G | 56075-1480 | 1 | ||
| PATTERN,WHEEL,GREEN,6X1310 | 56075H | 56075-1481 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
